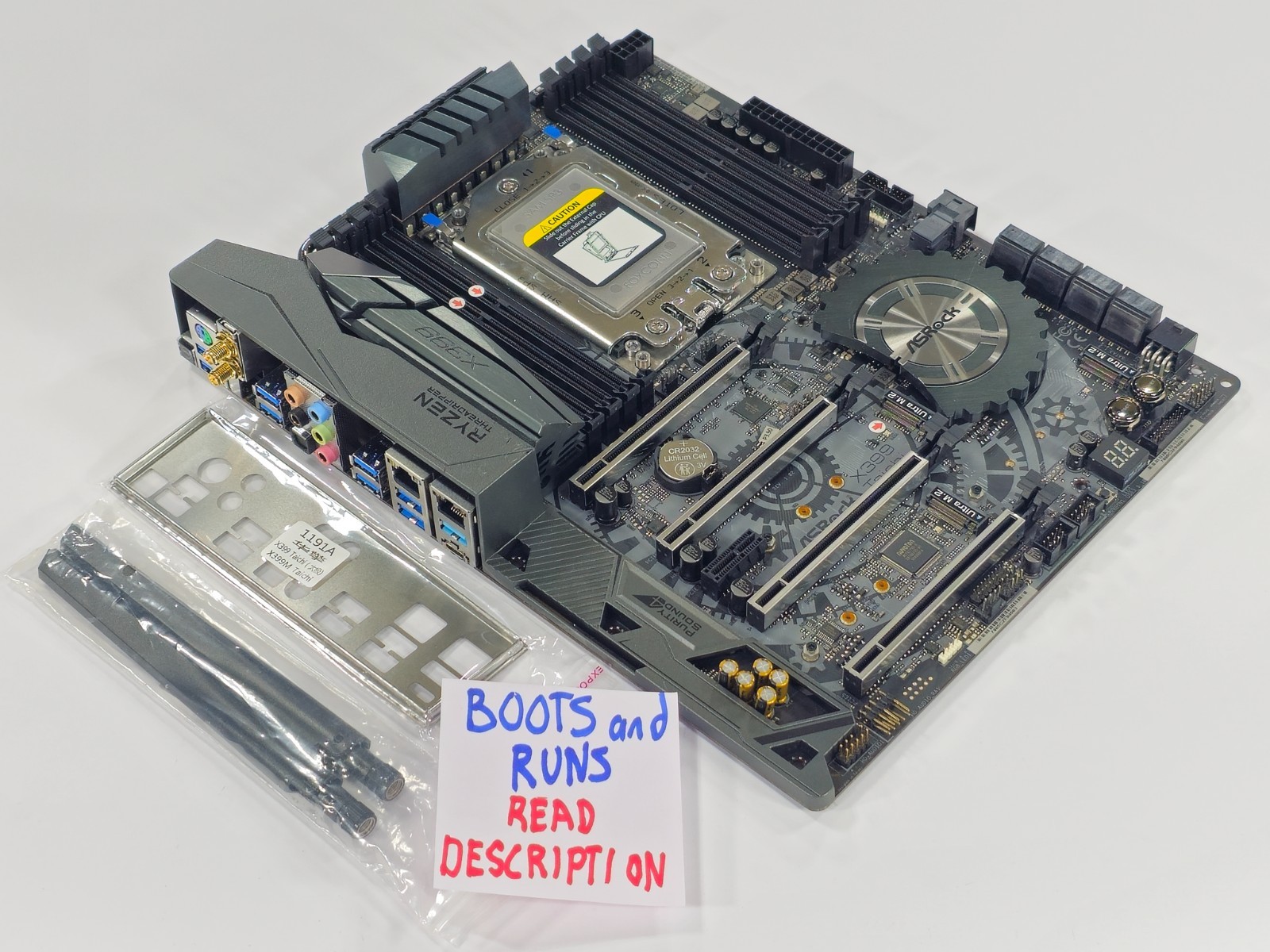

For sale is my ASRock X399 Taichi motherboard. It will boot up and run Windows, but there are problems with the motherboard. DDR_C1 andDDR_C2 will not detect any RAM installedthose slots. The RAM can be detected in certain situations (They show up in CPU-Z, even if the motherboard disables them), but the RAM capacity from those slots will not be available in Windows and show as "None" in BIOS. The middle M.2 slot between PCIE2 and PCIE4 will not detect any M.2 devices.BIOS has been updated to the latest available as of August 2026.Comes with pre-installed M.2 screws, a set of generic Wi-Fi antennas, and an aftermarket I/O shield. Does not come with retail box or any other accessories not pictured.
This motherboard was shipped as part of a prebuilt computer at some point, so any damage or symptoms may be related to damage during shipping. It was also in storage for a long period of time, so the CMOS battery may be dead if there is a battery still installed, and there may be dust, scratches, dents, bent or broken pins, or other physical damage not explicitly described. You will receive the exact motherboard that is pictured, so make sure to check all of the photos closely for actual physical condition.Your purchase comes with everything pictured. You are only buying what is pictured, and nothing else. If a cable or something else is not pictured, it is not included!SHIPPING AND PURCHASE TERMSIdo combined shipping discounts! Multiple quantity listings already have automatic shipping discounts included, but multiple items from different listings do not. If you want to purchase from multiple listings from me and you need a shipping adjustment, please contact me and an adjustment will be made after purchase. Shipping discounts on additional items beyond the first item vary, but expect modest to significant savings depending on factors like size, weight, and distance for the package(s). Multiple listing combined shipping discounts are not automatic and must be requested.
Due to increasing amounts of fraudulent buyers using freight forwarders, buyers suspected to be using a freight forwarder will be scrutinized for fraudulent activity, and will require an admission in messages that a freight forwarder is being used for that order. I reserve the right to cancel and refund orders using freight forwarders in order to protect myself from potential fraud.Item serial number will be recorded if present.Signature confirmation will be required on all sales of $750 or more.International buyers READ THIS: International shipping for most countries will be handled by international shipping services. Otherwise it will be shipped with an appropriate USPS, UPS, or FedEx service. Keep in mind, I cannot change customs value of the item and I cannot mark it as gift. Import duties, taxes, and charges aren't included in the item price or postage cost for items not shipped with international shipping. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.___
Learn more about the ASRock X399 TaichiModelBrandASRockModelX399 TaichiSupported CPUCPU Socket TypesTR4CPU TypeRyzen Threadripper 1st Gen / Ryzen Threadripper 2nd GenChipsetsChipsetAMD X399MemoryNumber of Memory Slots8x288pin (DDR4)Memory StandardDDR4 3600+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133Maximum Memory Supported128GB*
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.Channel SupportedQuad ChannelExpansion SlotsPCI Express 3.0 x164 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE4/PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE4); triple at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4); quad at x16 (PCIE1) / x8 (PCIE2) / x16 (PCIE4) / x8 (PCIE5))*
* Supports NVMe SSD as boot disksPCI Express x11 x PCI Express 2.0 x1 SlotOther Slots1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE4)Storage DevicesSerial ATA (SATA)8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot PlugM.22 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
1 x U.2 Connector*** Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
** If U.2 Connector is plugged, M2_1 will be disabledSATA RAID0/1/10Onboard VideoOnboard Video ChipsetNoneOnboard AudioAudio ChipsetRealtek ALC1220Audio Channels7.1 ChannelsOnboard LANLAN ChipsetIntel i211ATSecond LAN ChipsetIntel I211-ATMax LAN Speed2 x 1GbpsWireless LANIntel 802.11 ac Wi-Fi Module (Free Bundle)
Supports IEEE 802.11 a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433 MbpsBluetoothSupports Bluetooth 4.2 / 3.0 + High speed class IIRear Panel PortsBack I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x Optical SPDIF Out Port
1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
8 x USB 3.1 Gen1 Ports (Supports ESD Protection)*
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x BIOS Flashback Switch
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)* Ultra USB Power is supported on USB3_6 port.
* ACPI wake-up function is not supported on USB3_6 port.Internal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)Other Connectors1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x CPU Fan Connector (4-pin)**
1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)*****
1 x Right Angle Front Panel Audio Connector*****
1 x Clear CMOS Switch
1 x Dr. Debug with LED
1 x Power Switch with LED
1 x Reset Switch with LED
1 x CPU Xtreme OC Switch* Each header supports up to 12V/3A, 36W LED Strip
** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power
*** The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power
**** The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power
**** CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use
***** Connect the audio device to either one of the audio connectorsPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.6"Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)
1 x 6-pin 12V Power Connector (Hi-Density Power Connector) (for PCIe graphics card)Software FeatureWindows 11SupportedFeaturesFeaturesUnique Feature:
ASRock USB 3.1 Gen2
- ASRock USB 3.1 Gen2 Type-A Port (10Gb/s)
- ASRock USB 3.1 Gen2 Type-C Port (10Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
- IR3555M Dr. MOS 60A
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
Intel 802.11 ac Wi-Fi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopBIOS:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustmentSoftware and UEFI:
Software
- ASRock A-Tuning
- ASRock RGB LED
- ASRock APP Charger
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash
- ASRock Crashless BIOS
- ASRock Easy RAID Installer
* These utilities can be downloaded from ASRock Live Update & APP Shop.Hardware Monitor:
- Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDPOS:
- Microsoft Windows 10 64-bitCertifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)___
