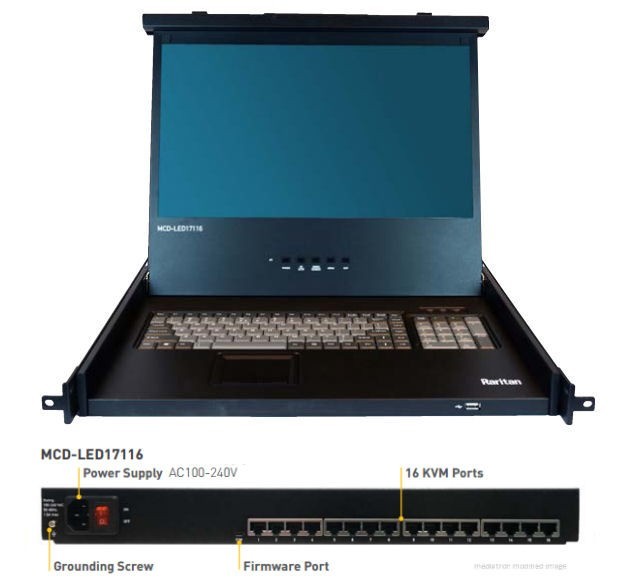

Raritan MCD-LED17116 17" LCD Drawer with Integrated 1 User, 16 Port MasterConsole Digital CAT5 KVM SwitchMCD-LED17116BRAND NEW IN BOX WITH ALL ACCESSORIES!Raritan MCD-LED17116 - MasterConsole Digital LED - Next Generation Cat5 KVM Console Drawer
Raritan's MCD-LED17116 MasterConsole Digital LED is a 17" LED Console Drawer (MCD-LED) with integrated Cat5 KVM switch combination for small to midsized businesses. This advanced combination brings you KVM ports for 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 100 feet (30 meters). The flexible video interface supports both Analog - VGA and Digital - DVI, HDMI and DisplayPort with a maximum HD video resolution up to 1920x1080. The MCD-LED17116 with its convenient space saving design simply connects to multiple computers with the use of standard Category 5/6/6e cables. MCD-LED17116 provides at-the-rack access with a friendly user interface and convenient hotkeys to quickly access connected computers. It is ideal for performing system maintenance, administration, running applications, and troubleshooting.
Overview
Scalability and Expansion by Cascading
A Single user can manage 16 servers connected to MCD-LED17116. MCD-LED17116 can also be cascaded 2 levels, by using Raritan's MDCIM-DVI or MDUTP cables, to control up to 512 servers
Space Saving Design
The 1U rack mount modular design takes up to 85% less space than a full sized keyboard, monitor, and mouse.
High Resolution LCD LED Display
MCD-LED17116 supports 1920 x 1080 video resolutions at 150 feet.
Simple Installation & Intuitive On-Screen Display
Plug-and-play installation, auto-configuration, and easy-to-use onscreen displays allow for easily install of the MCD-LED17116 at the rack.
AutoScan / AutoSkip
AutoScan allows users to scan servers at variable rates for effortless monitoring. AutoSkip allows users to bypass inactive channels.
Supports HDMI/DVI/DP/VGA video and stereo audio
MCD-LED17116 MasterConsole Digital LED supports severs with both analog (VGA) and digital video: HDMI, DVI, and DisplayPort (DP). Audio is supported by Raritan's MDCIM-HDMI or MDUTP VGA KVM combo cables.
Additional FeaturesNext generation Cat5 interface supports digital & analog video interfaces and audioMCD-LED17116 MasterConsole Digital LED drawer with integrated KVM Switch is the next generation of Raritan Cat5 KVM switches. It supports single user control of up to 16 servers.Space-Saving DesignMCD-LED17116 is only 1U of rack space in heightCross-Platform and Hardware Independent
MCD-LED17116 works with a mixture of servers that have USB keyboard/mouse interfaces and HDMI/DVI/DP digital video interfaces or analog VGA.
MDCIMs are available for support of various servers and devices in your data center including MS-DOS, Windows 7/8/8.1/10, Linux (Red Hat, Novell Suse), Macintosh OS9, OSX and SCO UNIX.
"keep-alive" technologyMCD-LED17116 server interface cables (MDCIMs) with "keep-alive" technology allow users to add, remove and hot-swap CIMs without interruption to the live servers. MDCIMs also support DDC, DDC2, and DDC2B.Cat5 SimplicityUtilizes Cat5e/6/6e cabling to carry the KVM signaling from the server (via MDCIMs) to a KVM switch.Servers can be labeled with server' namesAllows easier server selection from the on-screen menu.Simple InstallationPlug-and-play installation, auto-configuration along with easy-to-use, on-screen displays. With the one-man installation kit, you can easily install MCD-LED17116 in the rack.Password AuthenticationSupport of one administrator and 127 user profiles for secure access and simple management.
