Samsung 256MB PC2700 DDR Laptop Memory
💻 Genuine Samsung DDR-333 SO-DIMM
Offered here is one genuine Samsung M470L3224FT0-CB3 256MB DDR SDRAM memory module for compatible laptop and compact computer systems.
This is a 200-pin original DDR module, commonly called DDR1 today to distinguish it from the later and electrically incompatible DDR2, DDR3, DDR4 and DDR5 standards.
The manufacturer’s primary label identifies the module as:
- Capacity: 256MB
- Memory Type: DDR SDRAM
- Speed: DDR-333
- Bus Rating: PC2700 / PC2700S
- CAS Latency: CL2.5
- Voltage: 2.5V
- Form Factor: 200-pin SO-DIMM
📜 A Laptop Module from the DDR Era
The module carries Samsung date code 0440C, placing it around late 2004.
This was the period of Pentium 4-M, Pentium M, PowerPC G4 and early mobile Athlon systems. A 256MB module was commonly used as original equipment or as an incremental memory upgrade in laptops, compact computers and certain embedded systems.

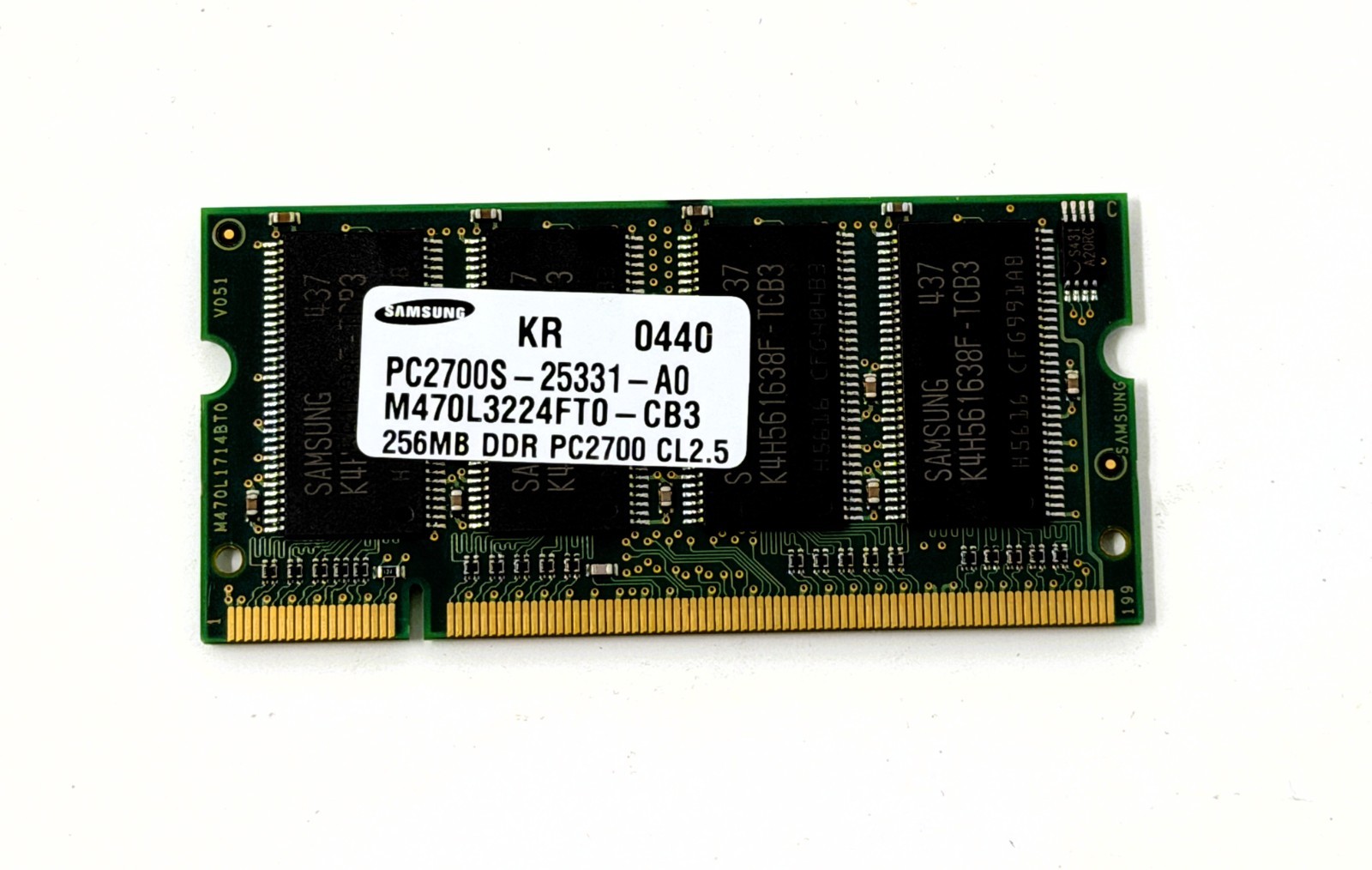

Samsung produced both the module and its installed DRAM components. The visible memory packages are marked:
The module uses components on both sides of the circuit board, as shown in the photographs.
🔍 About the “256 + 256” Rear Label
The reverse side carries an additional inventory or configuration label reading:
That secondary sticker does not identify this individual module as 512MB. Samsung’s primary manufacturer label and exact part number identify the module capacity as 256MB total.
The “256 + 256” notation may have referred to the memory configuration of the computer from which the module originated, such as two installed 256MB modules.
🔧 Identification and Technical Details
- Manufacturer: Samsung
- Part Number: M470L3224FT0-CB3
- Label Specification: PC2700S-25331-A0
- Capacity: 256MB
- Organization: 32M × 64
- Memory Technology: DDR SDRAM
- Effective Data Rate: 333 MT/s
- Memory Clock: 166 MHz
- Form Factor: 200-pin SO-DIMM
- Operating Voltage: 2.5V
- CAS Latency: CL2.5
- Timing: 2.5-3-3
- Error Correction: Non-ECC
- Buffering: Unbuffered
- Date Code: 0440C
- Additional Label: DA1B43601588
🛠️ Intended Uses
This module is appropriate for:
- Period laptop restoration
- Pentium M and Pentium 4-M systems
- Compatible PowerPC G4 laptops
- Early mobile Athlon systems
- Compact computers using 200-pin DDR memory
- Repairing a system that requires this exact Samsung part number
- Vintage computer collections
- Keeping an original machine in its period configuration
This module is for systems designed for 200-pin DDR/PC2700 SO-DIMM memory. It is not compatible with DDR2 or later SO-DIMM sockets.
📦 What Is Included
Included:
- One Samsung M470L3224FT0-CB3 memory module
- All permanently installed components shown in the photographs
Not included:
- Additional memory modules
- Installation tools
- Computer or laptop
- Software or documentation
- Original retail packaging
- Other accessories
💗 Physical Condition
The module is in good used physical condition. The circuit board, Samsung DRAM packages and surface-mounted components appear clean and complete.
The gold edge contacts show normal insertion wear. Both sides of the exact module are shown in the photographs and form an important part of the condition description.
📦 Shipping and Packaging
The module will be enclosed in anti-static protective material and packed inside a sturdy shipping carton or reinforced mailer. It will not be shipped loose in a paper envelope.
Free shipping with tracking is included.
Everything we sell comes from a smoke-free, pet-free environment.
🏪 Check Out Our Store!
We sell premium electronics, legacy computer hardware and unusual vintage components. Please visit our store to see what else is currently available.
❓ Have Questions?
If you have questions about visible markings, physical dimensions or compatibility with a particular memory specification, please contact us before purchasing.
