￭ Support up to 12 drives in unprecedented 30 liter Micro-ATX chassis size

￭ Designed for vertical or horizontal position, allow users to freely place CS381 anywhere

￭ Includes two long-life (L10, 70,000 hours) dual ball bearing 120mm fans

￭ Hot-swap drive trays support up to eight 3.5” or 2.5” SAS-12G / SATA-6G drives with two LED indicators for displaying drive status

￭ Accommodates SFX or SFX-L power supply

￭ Support normal height expansion slots for installation of cards up to 267mm long

￭ Kensington lock on front panel for additional security

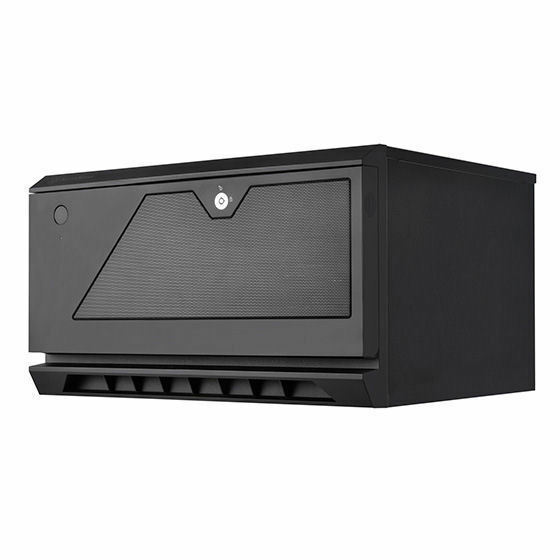

Model No.SST-CS381B
MaterialPlastic and metal mesh front panel, galvanized steel body
MotherboardMicro-ATX, Mini-DTX, Mini-ITX
Drive bayExternal3.5” / 2.5” SAS / SATA external hot-swapping x 8
--
Internal2.5” (5mm ~ 15mm) x 4 (2 on left racks)
HDD backplaneMini-SAS HD SFF-8643 36 pin connector x 2*/**
HDD InterfaceSATA drive up to 6 Gbit/s (depends on drive speed)
SAS drive up to 12 Gbit/s (depends on drive speed)
Cooling systemFront--
Rear2 x 120mm 1300rpm 28dBA dual ball bearing fan Life time 70000hr (L10)
Side2 x 120mm or 3 x 80mm fan slot supportRear1 x 120mm or 1 x 240mm
Expansion slot4
Front I/O portUSB 3.1 Gen 1 x 2
audio x 1
MIC x 1
LED IndicatorChassisPower ON: Blue
Accessing: Red blinking
HDD TrayHDD Power LED : Red
HDD Access : Blue blinking
Power supplySFX / SFX-L PSU (not included)
Expansion Card limitationUp to 10.5” (266.7mm), please refer to manual for more details
Limitation of CPU cooler59mm***
Limitation of PSU200mm
Net weight7 KG
Dimension400mm (W) x 225mm (H) x 316mm (D) , 28 Liters
15.75" (W) x 8.86" (H) x 12.44" (D) , 28 Liters
ExtraKensington lock

Remark
* Please note the directionality of MINI SAS cables used, cables such as CPS05-RE is recommended for use with SATA ports on motherboard.
** MINI-SAS HD ports on backplane are not compatible with U.2 ports on motherboards.
*** If CPU cooler used has top-down airflow direction, please make sure there is at least 10mm of clearance above the fan for sufficient air intake.
