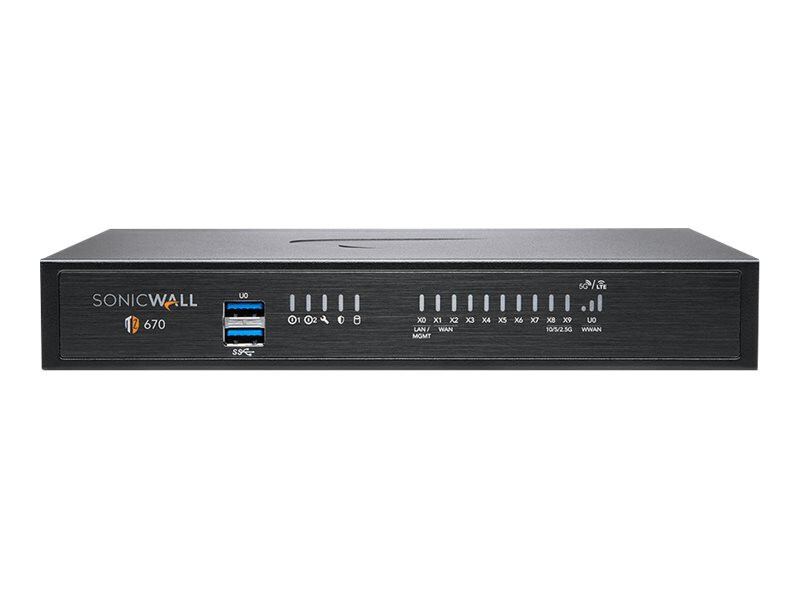

Main SpecificationsProduct DescriptionSonicWall TZ670 - Essential Edition - security appliance - with 1 year TotalSecureDevice TypeSecurity applianceBundled Services1 year TotalSecureForm FactorDesktopHard Drive32 GB x 1Data Link ProtocolGigabit Ethernet, 10 Gigabit EthernetPerformanceFirewall throughput: 5 Gbps ¦ Threat prevention throughput: 2.5 Gbps ¦ Application throughput: 3 Gbps ¦ IPS throughput: 3 Gbps ¦ Anti-malware throughput: 2.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 800 Mbps ¦ VPN throughput (IPSec): 2.1 Gbps ¦ Connection rate: 25000 connections per secondCapacityVirtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 250) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1500000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 75000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32VoIP ProtocolsSIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5PowerAC 120/230 V (50/60 Hz)Dimensions (WxDxH)8.9 in x 5.9 in x 1.4 inWeight34.21 ozGeneralDevice TypeSecurity applianceBundled Services1 year TotalSecureWidth8.9 inDepth5.9 inHeight1.4 inWeight34.21 ozExpansion / ConnectivityInterfaces6 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 2 x network - SFP+ ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45 ¦ 1 x console - micro-USBMiscellaneousMTBF43.9 yearsCompliant StandardsFCC Class B certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, ICES Class B, KCC, WEEE, ANATEL, REACH, LVD, VCCI Class B, MSIP, Common CriteriaNetworkingForm FactorDesktopConnectivity TechnologyWiredData Link ProtocolGigabit Ethernet, 10 Gigabit EthernetNetwork / Transport ProtocolTCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCPRouting ProtocolOSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)Remote Management ProtocolSNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLIPerformanceFirewall throughput: 5 Gbps ¦ Threat prevention throughput: 2.5 Gbps ¦ Application throughput: 3 Gbps ¦ IPS throughput: 3 Gbps ¦ Anti-malware throughput: 2.5 Gbps ¦ TLS/SSL inspection and decryption throughput: 800 Mbps ¦ VPN throughput (IPSec): 2.1 Gbps ¦ Connection rate: 25000 connections per secondCapacityVirtual interfaces (VLANs): 256 ¦ SSL VPN licenses: 2 (maximum 250) ¦ VPN tunnels (site-to-site): 250 ¦ IPSec VPN clients: 10 (maximum 500) ¦ SPI connections: 1500000 ¦ DPI connections: 500000 ¦ DPI SSL connections: 75000 ¦ Single Sign-On (SSO) users: 2500 ¦ Manageable access points: 32FeaturesFirewall protection, NAT support, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Deep Packet Inspection (DPI), DDos attack prevention, anti-spam protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Jumbo Frames support, DHCP server, bandwidth control, IPv4 support, Common Access Card (CAC) reader support, DHCP relay, 3G/4G USB Dongle Support, NetFlow, Single Sign-On (SSO) support, VLAN trunking, SD-WAN supportEncryption AlgorithmDES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AESAuthentication MethodRADIUS, LDAP, XAUTH authenticationPowerPower DeviceExternal power adapterVoltage RequiredAC 120/230 V (50/60 Hz)Power Consumption Operational13.1 WattPower Provided60 WattSoftware / System RequirementsOS ProvidedSonicOS 7.0Software IncludedSonicWall Essential Protection Service Suite (1 year)Environmental ParametersMin Operating Temperature32 °FMax Operating Temperature104 °FHumidity Range Operating5 - 95% (non-condensing)Processor / Memory / StorageHard DriveSSD 32 GB x 1Dimensions & Weight (Shipping)Shipping Weight4.25 lbsIP TelephonyVoIP ProtocolsSIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
