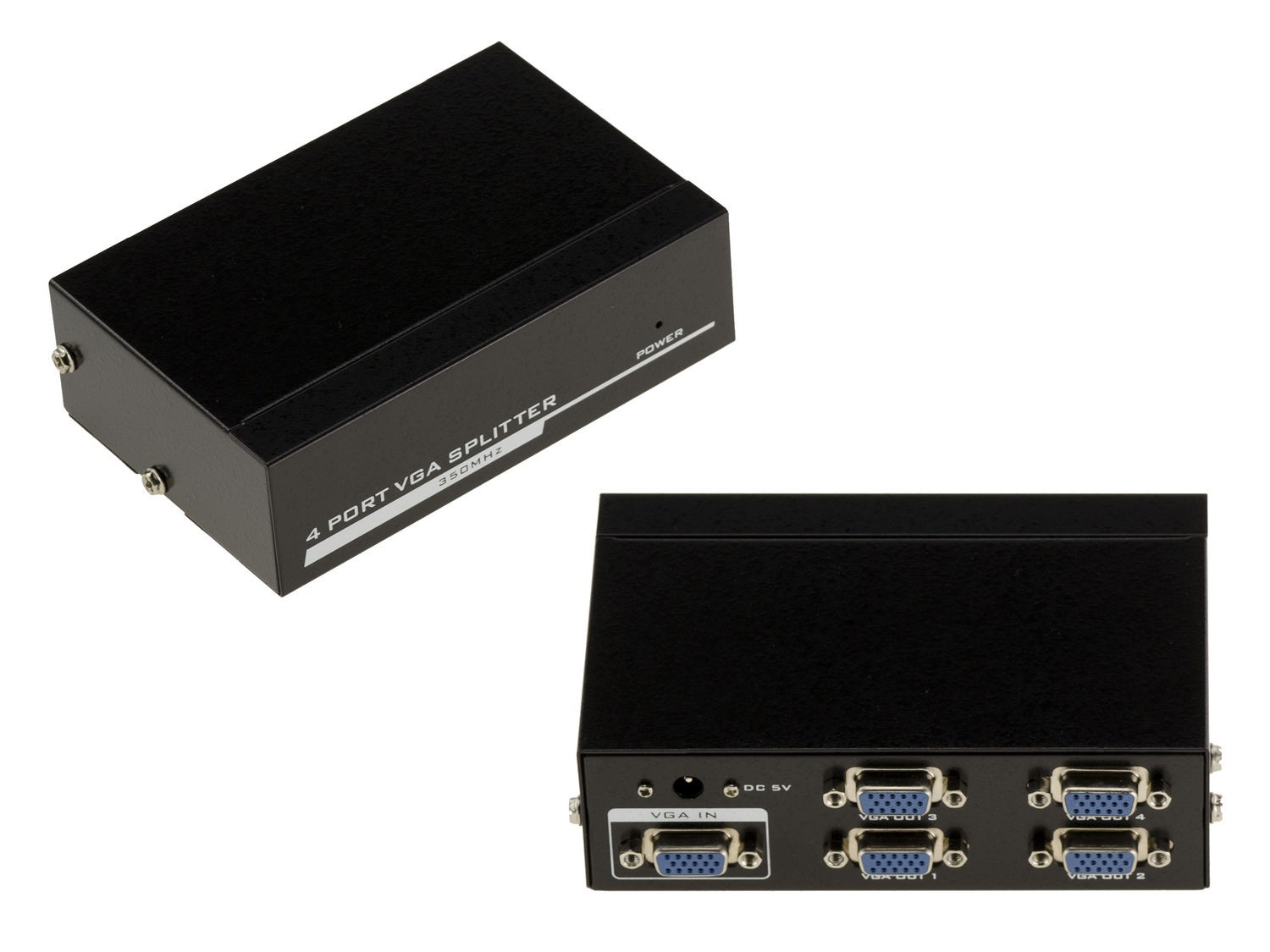

To simultaneously display a computer image on 1 to 4 monitors at the same time. Having a wide bandwidth (350MHz) will allow better display qualities.
Domestic use (having the computer image in several rooms) or professional use (control monitors, public information, classrooms, with the VGA standard.
1 VGA Input (15 poles HD / Female Type) / 4 VGA Outputs (15 poles HD / Female Type).
Resolution 1920 x 1440 - RGB bandwidth: 350 MHz.
Input level 0.5-1.5Vp-p.
Input resistance 75 Ohms.
HV Channel / Input Level 0.7-5Vp-p.
Maximum cable length 65 to 85M depending on cable quality.
External power supplied 5V.
Can work in cascade to animate up to 64 monitors!.
Metal case - Dimensions: 132 x 97 x 45 mm.
To simultaneously display a computer image on 1 to 4 monitors at the same time. Having a wide bandwidth (350MHz) will allow better display qualities. Domestic use (having the computer image in several rooms) or professional use (control monitors, public information, classrooms, etc.). Specifications: Compatible with the VGA standard. 1 VGA Input (15 poles HD / Female Type) / 4 VGA Outputs (15 poles HD / Female Type). Resolution 1920 x 1440 - RGB bandwidth: 350 MHz. Input level 0.5-1.5Vp-p. Input resistance 75 Ohms. HV Channel / Input Level 0.7-5Vp-p. Maximum cable length 65 to 85M depending on cable quality. External power supplied 5V. Can work in cascade to animate up to 64 monitors!. Metal case - Dimensions: 132 x 97 x 45 mm.
