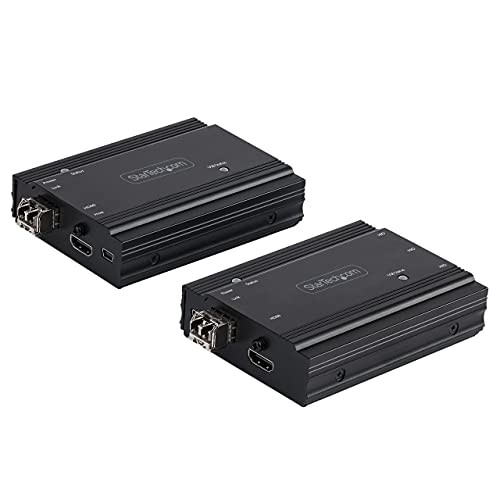

StarTech 4K HDMI KVM Extender over Fiber StarTech 4K HDMI KVM Extender over Fiber
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: Transmitter for Host Computer Receiver for Remote Console 10G Multimode 10G SFP+ Module (Pre-Installed) Universal Power Adapter USB-A to Mini USB-B Cables Quick-Start Guide
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse. Supports UHD 4K 60Hz The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling. Hassle-Free Installation The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support. 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ Modules
REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules 4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support SPECS: HDMI 2.0 Fiber Optic KVM Extender | 3x USB 2.0 HID | OS Independent | EDID Passthrough | Supports MM or SM SFP+ | 2x 10G Multimode SFP+ modules inc. | LC Connectors | 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range | 2 year Warranty EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; 's tech advisors are available 24/5Package Contents:
- Transmitter for Host Computer
- Receiver for Remote Console
- 10G Multimode 10G SFP+ Module (Pre-Installed)
- Universal Power Adapter
- USB-A to Mini USB-B Cables
- Quick-Start Guide
SpecificationPower DescriptionInput Voltage Range100V AC to 240V ACInput Voltage
Power Consumption10 WPhysical CharacteristicsTransmitter Weight (Approximate)15.87 ozReceiver Width2.95"Receiver Height1.10"Transmitter Length3.94"Receiver Length3.90"Product ColorBlackReceiver Weight (Approximate)15.87 ozColor FamilyBlackTransmitter Height1.10"Transmitter Width2.95"WarrantyLimited Warranty2 YearInterfaces/PortsNumber of USB Ports6Number of HDMI Ports6USBYesHDMIYesVideoMaximum Video Resolution3840 x 2160Graphic Mode4KGeneral InformationBrand Name
