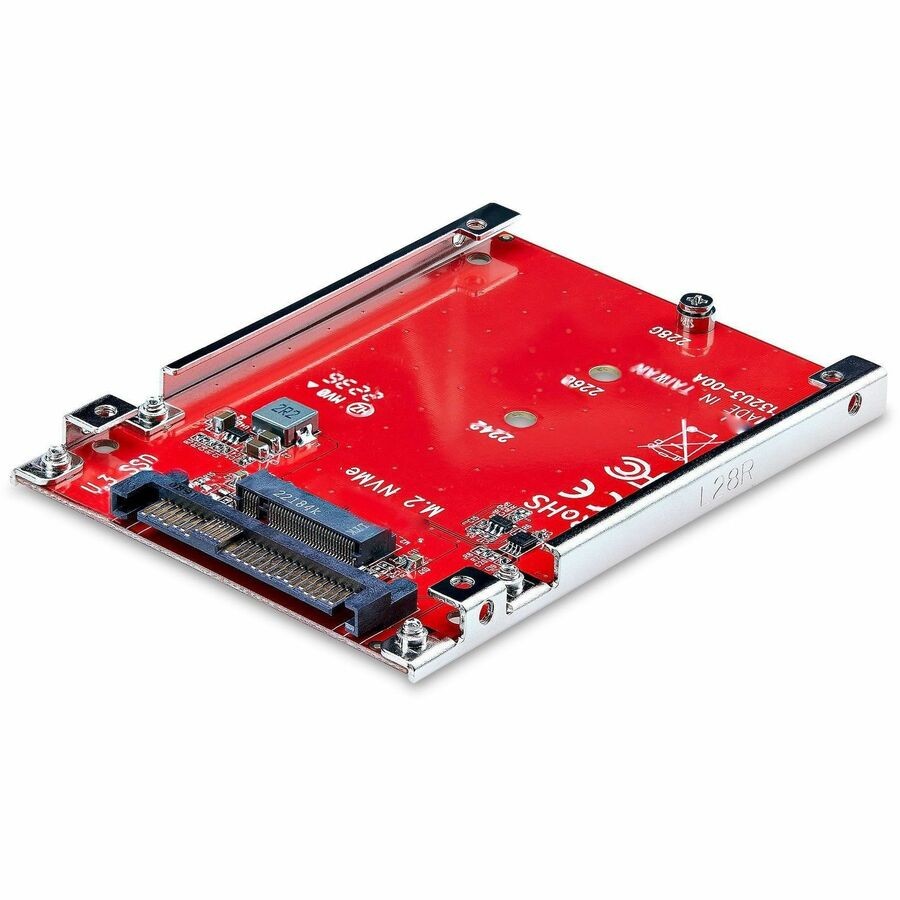

StarTech M.2 to U.3 Adapter For M.2 NVMe SSDs PCIe Drive 1M25U3M2ADAPTER Brand: StarTech UPC: 0065030900744 Mfr Part #: 1M25U3M2ADAPTER

General Information

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in a U.3 drive bay or backplane.

Adapt While Retaining Performance

Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while maintaining PCIe Gen 4 read and write speeds. This adapter has been designed with no chipset to maintain performance when adapting an M.2 drive to a 2.5-inch form factor.

Hassle-Free Setup

The M.2 to U.3 Host Adapter is compatible with all operating systems, including Windows, macOS, and Linux. No additional drivers or software for installation and operation. The adapter includes M.2 drive and U.3 adapter mounting hardware.

Compatibility

The M.2 to U.3 Host Adapter is backward compatible with earlier versions of M.2 PCIe NVMe drives. It is not compatible with SATA or SAS host controllers, M.2 SATA SSDs, or U.2 host Connect an M.2 NVMe SSD to a computer or server through an available U.3 (SFF-TA-1001) connection to increase data storage capacity

Enhance productivity for data-intensive applications, making it ideal for developers and content creators

Physical CharacteristicsProduct (Approximate):1.31 oz

Connector(s)

Drive Connectors

• 1 - M.2 (NVMe, M-Key, PCIe x4)

Host Connectors

• 1 - U.3 (PCIe, NVMe, SFF-TA-1001)

Environmental

Operating Temperature

• 0°C to 50°C (32°F to 122°F)

Storage Temperature

• -40°C to 85°C (-40°F to 15% - 90% No

Interface

• U.3 (PCIe, NVMe, SFF-TA-1001)

Bus Type

• PCI Express

Number of Drives

• 1

Compatible Drive Types

• M.2 (PCIe, NVMe, M-Key, NGFF)

Supported Drive Height(s)

• 2242
• 2260
• Support
  • Yes

  Hardware Raid Supported

  • No

  Insertion Rating

  • 60 Cycles

  MTBF

  • 12,368,734 Hours

  Power

  Output Voltage

  • 3.3V DC

  Output Current

  • 5A

  Software

  OS Compatibility

  • No Drivers or Software Required




  Compatibility:M.2 NVMe SSDsCountry of Origin:TaiwanTAA Compliant:YesEnvironmentally Friendly:YesEnvironmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Environmental Compliance:Restriction of Hazardous Substances (RoHS)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)
