StarTech Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters) StarTech Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: RS232 Extender Local Unit RS232 Extender Remote Unit 20cm Null Modem cable (DB-9 Male to Male) Power Adapter User Manual
TAA Compliant: Yes
Additional Information: Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length Pure hardware design, no software or drivers required ensuring a simple plug and play installation
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Product Description
This item is brand-new, factory sealed.

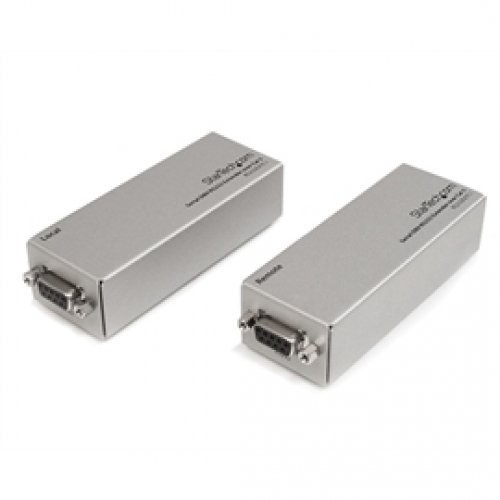

The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit.
The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.
Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps.
Backed by a 2-year warranty and free lifetime technical support.
SpecificationPower DescriptionInput Voltage230 V ACPhysical CharacteristicsProduct MaterialSteelLength3.6"Product ColorSilverHeight0.9"Color Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesNumber of Network (RJ-45) Ports2General InformationBrand Name
