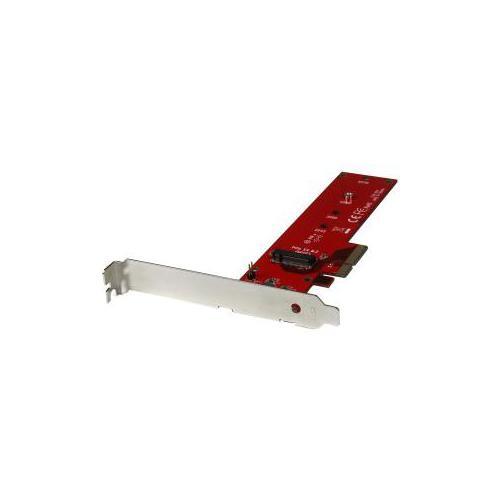

StarTech x4 PCI Express to M.2 PCIe SSD Adapter PEX4M2E1
Product Description
Connect a PCIe M.2 SSD (NVMe or ACHI) to your computer through PCI Express for ultra-fast data access. Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or ACHI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
Supports PCIe M.2 SSDs
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
Easy to install
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
The PEX4M2E1 is backed by a StarTech 2-year warranty and free lifetime technical support.
InformationBrand Name:StarTechProduct Type:M.2 to PCI Express AdapterGeneral InformationBrand Name:StarTechManufacturer Part Quantity:1Product Name:x4 PCI Express to M.2 PCIe SSD AdapterProduct Type:M.2 to PCI Express AdapterMiscellaneousAdditional Information:Hardware
Bus Type PCI Express
Compatible Drive Types (Type and Rate) M.2 (NGFF; M-Key; PCIe x4)
Drive Installation Fixed
Drive Size 22m - M.2 NGFF
Interface PCI Express
Number of Drives 1
Supported Drive Height(s):
2242
2260
2280
22110
Performance
Hot Swap Capability No
Connector(s)
Drive Connectors 1 - M.2 (NGFF; M-Key; PCIe x4)
Host Connectors 1 - PCI Express x4 Male
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 - Pin header on board for drive LED connection
Environmental
Humidity 15% ~ 90% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Color RedCertifications & Standards:
Environmental Certification:RoHSWEEEEnvironmentally Friendly:YesPhysical CharacteristicsColour:RedHeight:22.9 mmLength:177.8 mmWeight (Approximate):42.5 gWidth:78.7 mm
