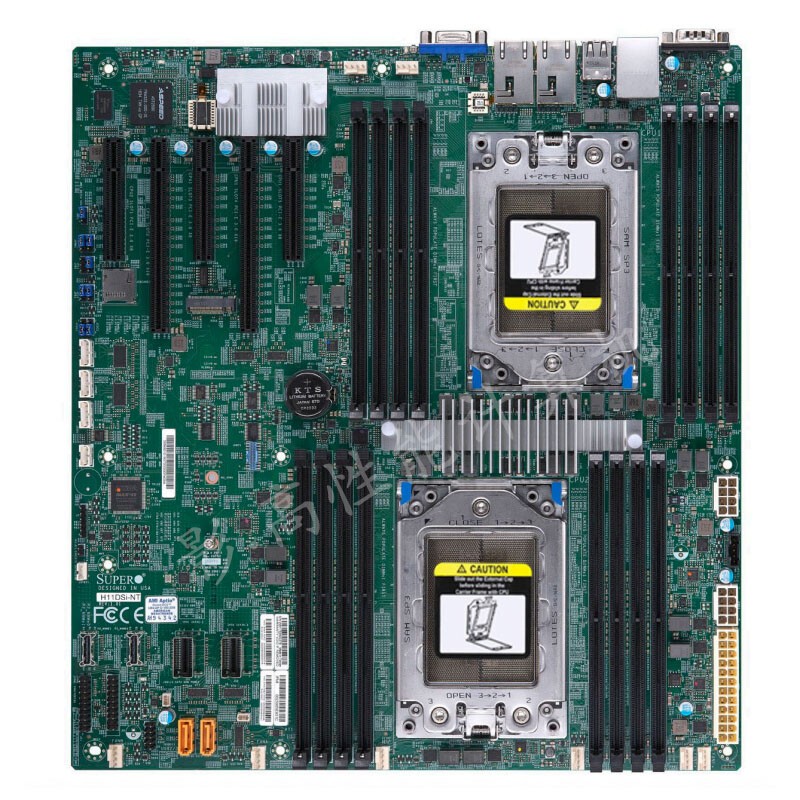

SuperMicro H11DSI-NT Rev2.0 128-core Server Motherboard Dual Gigabit Ethernet Product Description
H11DSI-NT SuperMicro Rev2.0 128-core server dual Gigabit Ethernet For EPYC7702 Specifications Product SKUs MBD-H11DSi-NT Physical Stats Form Factor - 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
- Socket SP3
- Up to 240W TDP
Cores - Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset System Memory Memory Capacity - 16 DIMM sockets
- Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - Intel® X550 10G Base-T Ethernet Controller
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SATA NVMe - 2 Internal NVMe Ports (PCI-E 3.0 x4)
LAN - 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 2 USB 3.0 ports (rear)
- 4 USB 2.0 ports (2 rear + 2 via header)
VGA Others - 1 COM port (rear)
- 2 SATA DOM power connectors
- 1 TPM 2.0 header
Expansion Slots PCI-Express - 3 PCI-E 3.0 x8
- 2 PCI-E 3.0 x16
M.2 - Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module) - Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H11DSI-NT ) 2U - SC213AC-R1K23LPB
- SC825TQC-R802LPB
- SC745BAC-R1K28B2
- AS -4023S-TRT
System BIOS BIOS Type - AMI 128Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.1V, +1.5V, +1.8V, +12V, +5V, +5V standby
- CPU switching voltage regulator
FAN - Up to 8-fan status tachometer monitoring
- Up to eight 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 8x Fan connectors
- I2C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% class="navi Us - response
