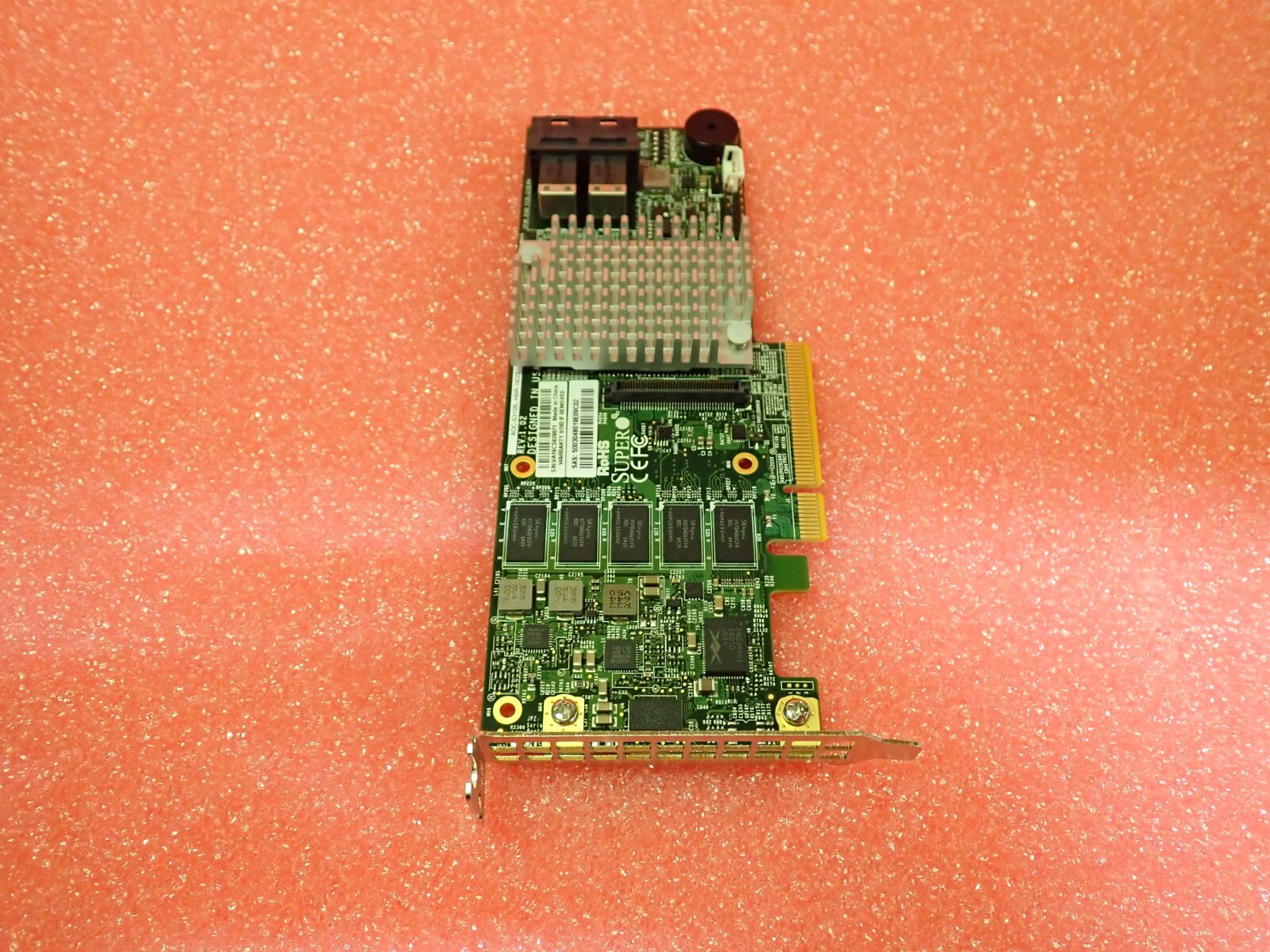

Supermicro 8-Port SAS 12G SATA 6G PCI-E 3.0 X8 RAID CardAOC-S3108L-H8iR-16DDP/N: AOC-S3108L-H8iR-16DD
In Good ConditionIn Full Working OrderTestedSupplied With 2 Years Warranty
Supplied with low profile brack - we can supply with a full height high profile bracket instead- if this is required please send a message immediately after you place the order
Included

• 1 x Supermicro 8-Port SAS 12G SATA 6G PCI-E 3.0 X8 RAID Card Low Profile 12Gb/s Eight-Port SAS Internal RAID AdapterThe Supermicro MegaRAID Low Profile AOC-S3108L-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the Broadcom SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.Use a Broadcom 3108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth. This RAID adapter delivers an intelligent and robust RAID solution.
  Using expander backplanes, the AOC-S3108L-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60. The AOC-S3108L-H8iR-16DD supports up to 16 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.
  Features
  • Broadcom 3108 8-port PCI-E SAS-3 controller
  • 8-port (8 internal) 12Gb/s per port
  • Supports RAID 0, 1, 5, 6, 10, 50, 60
  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache
  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support
  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation
  • Supports SSP, SMP, STP and SATA protocols
  • OS Support : Windows (2012, Server 2016 , Server 2019, 8 and 8.1), Linux RHEL, Ubuntu and SUSE
  • Uses 2 MiniSAS HD (SFF-8643) connectors
  • Operating Temp: 10° to Type: Storage controller (RAID)
  • Form Factor: Plug-in card - low profile
  • PCI Specification Revision: PCIe 3.0
  • Interface Type: SATA 6Gb/s / SAS 12Gb/s
  • Number of Threads: 16
  Storage Controller
  • Data Transfer Rate: 12 GBps
  • Processor: LSI LSISAS3108
  • RAID Level: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
  • Supported Device(s): Hard drive, Disk array (RAID)
  Memory
  • Size: 2 GB
  Expansion / Connectivity
  • Interface and Connections: SATA 6Gb/s / SAS 12Gb/s ( internal )
  VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£150 excluding VAT
  VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
