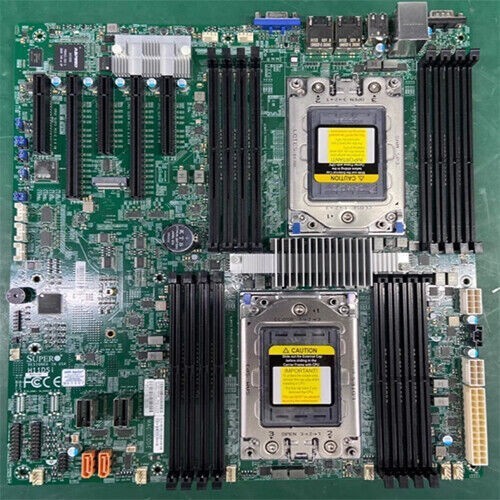

Supermicro H11DSi Motherboard LATEST Rev. 2.0 Support AMD EPYC 7001/7002 Series

Product Description

Key Features

1.Dual AMD EPYC™ 7001/7002*Series Processors (*AMD EPYC 7002 series drop-in
support requires board revision 2.x)2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required)3.Expansion slots:
 2 PCI-E 3.0 x16
 3 PCI-E 3.0 x8
 M.2 Interface: 1 SATA/PCI-E 3.0 x2
 (Platform with EPYC 7002 processor
 only supports PCI-E type M.2 module)
 M.2 Form Factor: 2280, 22110
 M.2 Key: M-key
4.10 SATA3, 1 M.2, 2 SATA DOM5.Dual Gigabit Ethernet LAN Ports6.ASPEED AST2500 BMC graphics7.Up to 2 USB 3.0 ports
Up to 4 USB 2.0 ports8.8 4-pin PWM Fan & Speed controlSpecifications
Product SKUs
MBD-H11DSi

• H11DSi (Bulk Pack)

Physical Stats
Form Factor

• 12" x 13.05" (30.5cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Dual AMD EPYC™ 7001/7002*series Processors (*Board revision 2.x required)
• Socket SP3
• Up to 240W TDP

Cores

• Up to 32 Cores
• Up to 64 Cores (Board revision 2.x required)

Chipset

• System on Chip

System Memory
Memory Capacity

• 16 DIMM sockets
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
• Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• 2 1GbE LAN via Intel® i350-AM21
• 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / Output
SATA

• 10 SATA3 (6 Gbps) ports

LAN

• 2 RJ45 Gigabit Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 2 USB 3.0 ports (rear)
• 4 USB 2.0 ports (2 rear + 2 via header)

VGA

• 1 VGA port

Others

• 1 COM port (rear)
• 2 SATA DOM power connector
• 1 TPM 2.0 header

Expansion Slots
PCI-Express

• 3 PCI-E 3.0 x8
• 2 PCI-E 3.0 x16

M.2

• Interface: 1 SATA/PCI-E 3.0 x2
  (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
• Form factor: 2280, 22110
• Key: M-key
