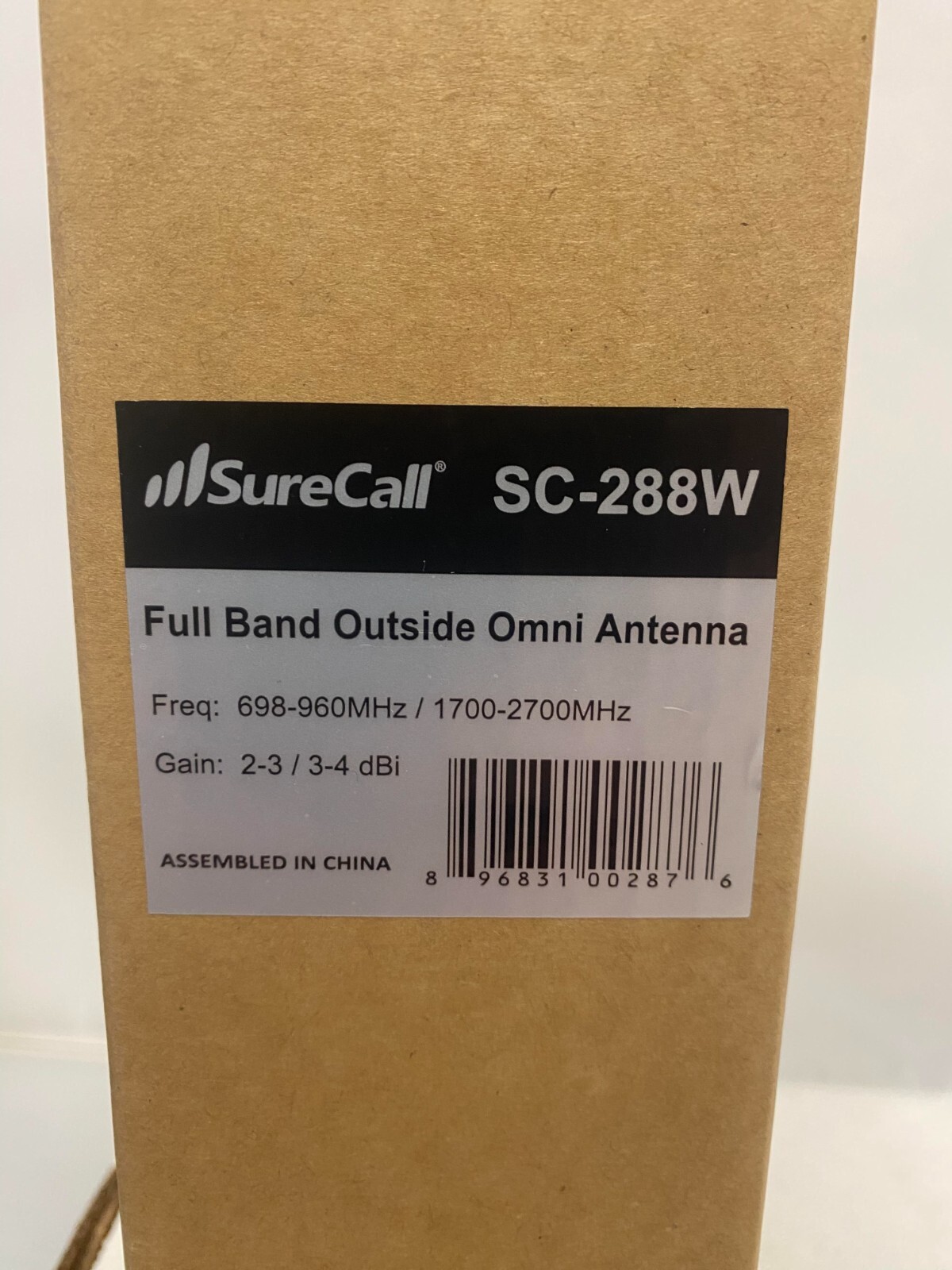

Overview Designed for maximum flexibility with multiple carriers and cell towers in most environments, the SureCall SC-288W Omni Antenna is an omni-directional 50 Ohm fiberglass outdoor antenna that operates in a 360° field of propagation with a range of up to 30 miles. This wideband outside antenna transmits and receives signals in all directions and is designed to cover 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies. The provided hardware allow for either a surface mount or pole-mount. Features • 50 Ohm antenna with F-Female connector • Omni-directional 3-4 dB gain • Wideband (698-2700 MHz) • 2G/3G/4G and WLAN systems • Designed for outdoor use only • Easy to install Technical specifications Frequency (MHz) Input Impedance Antenna Gain 698 – 960 / 1700 – 2700 50 ohm Installation The SC-288W omni-directional outside antenna includes mounting hardware that allow for either a surface mount or pole-mount. The antenna should be mounted in an upright position. 2 – 3 dB (at 698 – 960 MHz) 3 – 4 dB (at 1700 – 2700 MHz) VSWR ≤1.8 Power Rating (W) 10 Polarization Type Vertical Radiation Omni-directional Max Power Connector type Dimensions 100 Watt N-Female 2.625 in. diameter x 9.25 inches Color White Operating Temperature -22° F to +176° F Mount Mounts to vertical surface (roof or wall), Provided U-bolts also allow for pole-mount (pole not provided) Beamwidth Ground-plane E:72 H:360 / E:50 H:360 Built-in ground plane Material Fiberglass
Sold as is.
