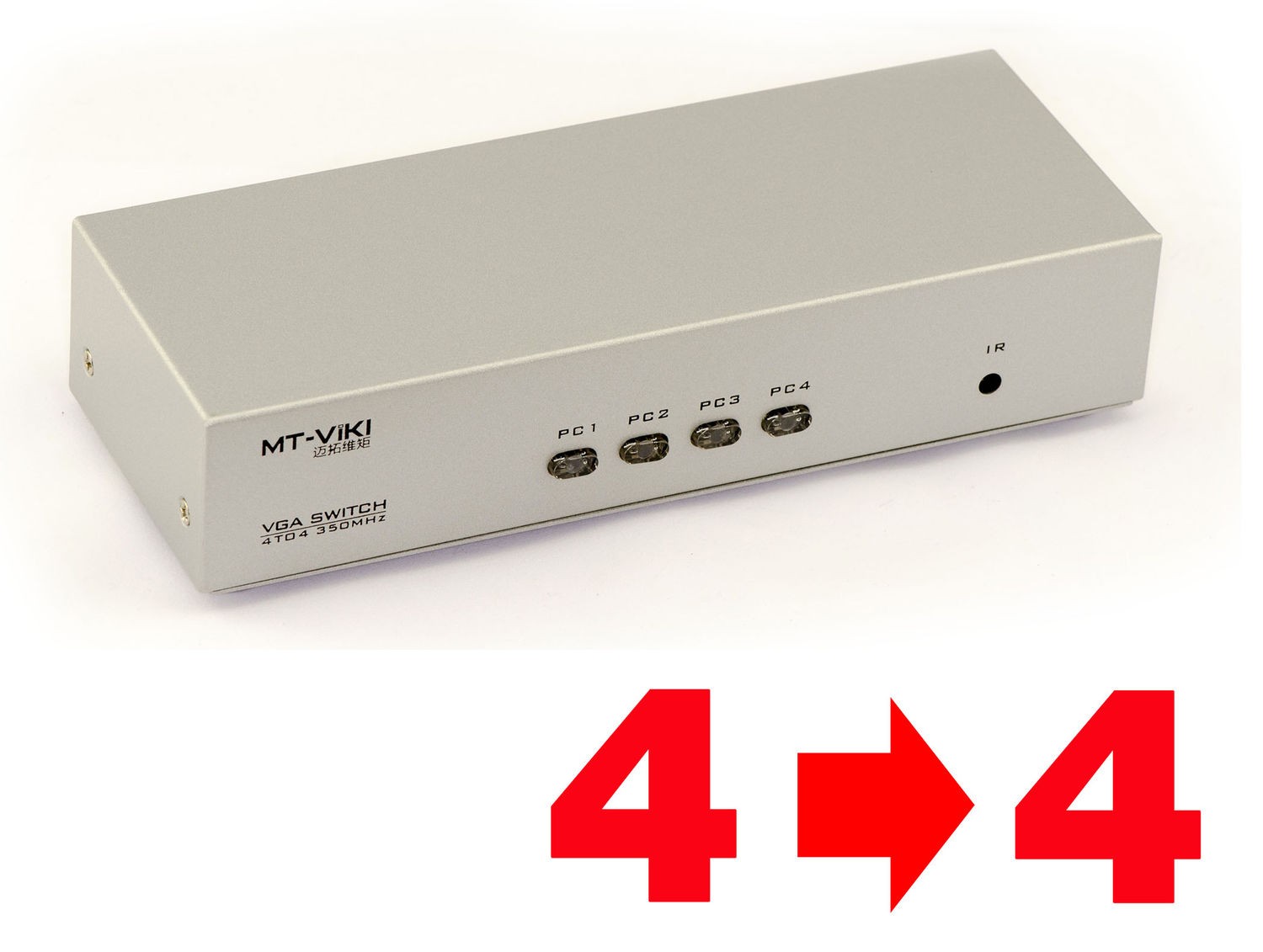

Works like a switch and a splitter combined: allows you to choose one input out of four different ones, and then direct it for simultaneous display on 1 to 4 monitors at the same time. Having a wide bandwidth (350MHz) will allow better display with the VGA standard.
4 VGA Inputs (15 poles HD / Female Type) / 4 VGA Outputs (15 poles HD / Female Type).
Resolution 1920 x 1440. RGB bandwidth: 350 MHz.
Input level 0.5-1Vp-p.
Input resistance 75 Ohms.
HV Channel / Input Level 0.7-5Vp-p.
Maximum cable length 65 M depending on cable quality.
Choice of source by selection button on the front / or infrared remote control / or programming possible by RS232 connection and software provided.
External power supplied DC 9V/1A.
Metal case. Dimensions: 200 x 85 x 45 mm.
Works like a switch and a splitter combined: allows you to choose one input out of four different ones, and then direct it for simultaneous display on 1 to 4 monitors at the same time. Having a wide bandwidth (350MHz) will allow better display qualities. Specifications: Compatible with the VGA standard. 4 VGA Inputs (15 poles HD / Female Type) / 4 VGA Outputs (15 poles HD / Female Type). Resolution 1920 x 1440. RGB bandwidth: 350 MHz. Input level 0.5-1Vp-p. Input resistance 75 Ohms. HV Channel / Input Level 0.7-5Vp-p. Maximum cable length 65 M depending on cable quality. Choice of source by selection button on the front / or infrared remote control / or programming possible by RS232 connection and software provided. External power supplied DC 9V/1A. Metal case. Dimensions: 200 x 8
