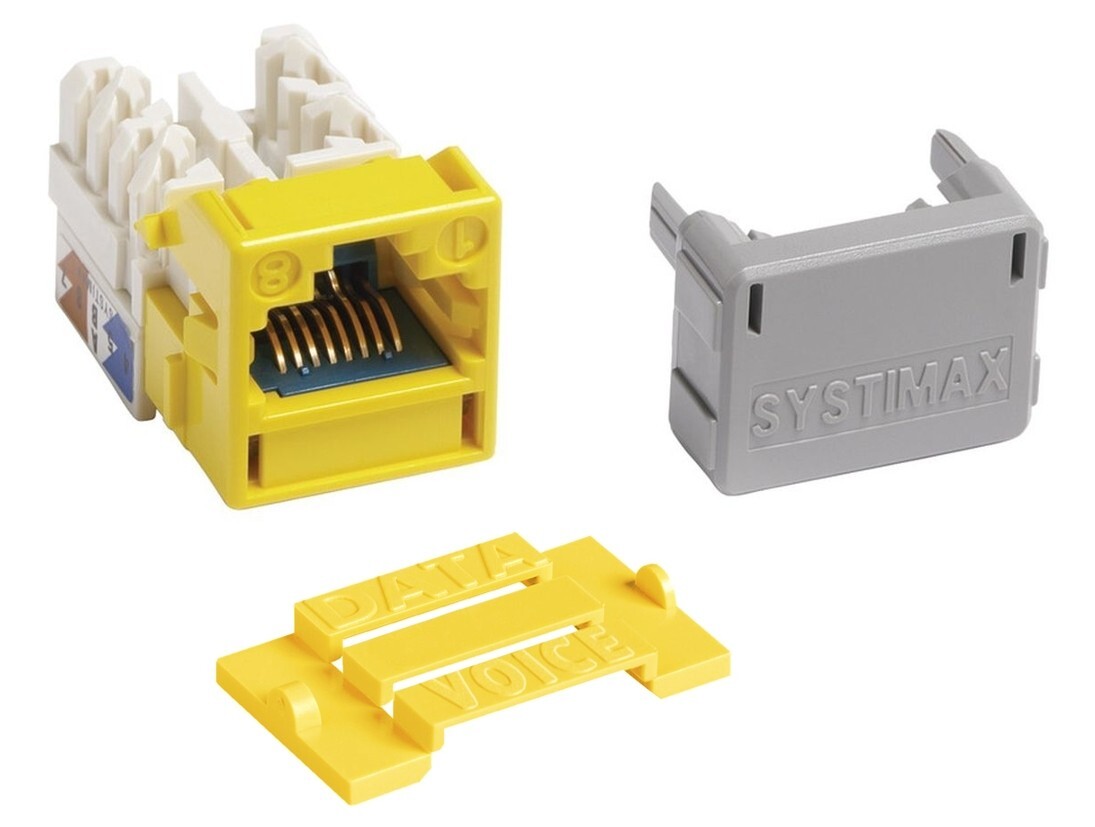

Systimax MGS600 / 760092387 Yellow Ethernet Jack
Price: US $20.00
The SYSTIMAX 360™ GigaSPEED X10D MGS600 Information Outlet is the latest result of many years of continuous product development at CommScope Labs. Just like previous MGS information outlets, the MGS600 snaps into standard CommScope M-Series faceplates, surface-mount boxes, and modular panels, but the new, patented compensation technology on the inside sets this outlet apart. Patented straddled pair cross-over techniques combined with new printed wiring board technologies, all tuned to SYSTIMAX 360 10G Cables and Cords bring our customers unsurpassed 10G channel performance with less restrictions than specified by industry standards.
Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
Snaps into standard SYSTIMAX M-Series faceplates, surface-mount boxes, consolidation point boxes, or SYSTIMAX modular panels. Can also be mounted either at 90 degrees (straight) or 45 degrees (angled) in any SYSTIMAX faceplate
Universal design and label supports both T568 A & B wiring
IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
Optional Plastic Icons (M61A) and Dust Covers (M20A) available in several colors
Optimal performance is achieved when using the GigaSPEED X10D 360GS10E patch cords; however, the MGS600 is fully backwards compatible
Can support network line speeds up to at least 10 gigabits per second
Qualifies for the SYSTIMAX 20-Year Extended Product Warranty and Applications Assurance when
included as part of a registered SYSTIMAX GigaSPEED X10D channel.
Specification Description
Information Outlet Contact Resistance Variation: 20 mOhm (Maximum) Contact Resistance: 100 mOhm (Maximum) Current Rating: 1.5 Amp At 68 deg F (1.5 Amp At 20 deg C) Relative Humidity: Upto 95% Non-Condensing Storage Temperature: -40 to 158 deg F (-40 to 70 deg C) Cable Type: U/UTP (Unshielded) Color: Yellow Plug Insertion Life: 750 Times Minimum, IEC 60603-7 Compliant Test Plug Plug Retention Force: 30 lbf (133 N) Minimum Rear Termination Contact Plating: Nickel Rear Termination Type: IDC Wiring: T568A/T568B Number Of Ports: 1 Number Of Position: 8 Number Of Wire: 8
