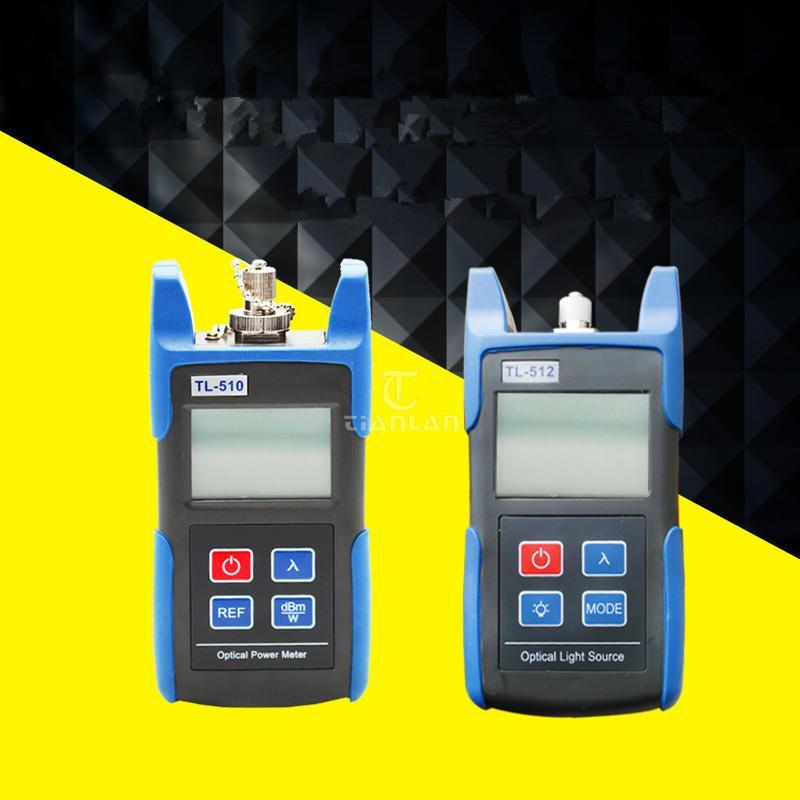

Store Categories Store Categories TL510C -50~+26dBm FC SC Fiber Optical Light Source & TL510A Optical Power Meter
Product Description
Package include: 1x TL510C-50 ~+26dBm Fiber Optical Power Meter (without battery) 1x TL512 Optical Light Source(without battery)
Type: TL510C
Wavelength(nm): (800nm to 1650nm )
Detector :InGaAs
Measurement Range (dBm): -24
Calibrated Wavelength(nm) :850,1300,1310,1490,1550,1625 (more calibrated wavelength can be optional)
Resolution(dB) :Linear 0.1% or Non-linear 0.01dBm
Connector SC, FC,ST/ Universal 2.5mm adaptor
Power Supply :3pcs AAA batteries(no include)
Battery Operating Time: 240 h with 1.5V Battery(3) (no include)
Operating Temperature(oC): _10-- +50
Storage Temperature(oC): _ 20--- +70
Working hours: >120 hours ( without backlight)
Relative Humidity :90% (+30oC )
Weight :200 g
1.High measurement accuracy and display resolution. 2.Quick response and measurement:It can display fast-tracking abd real-time measurement of optical power when output power changes. 3.Wide measurement range:it can provide 80Db of optical power measurement range 4.Six wavelength can be provide according to customer's request) 5.Provide absolute optical power measurement and relative power measurement. 6.Real-time monitoring and displaying the battery level.Warning notice is available when the battery is low 7.Auto-off function 8.Backlight LCD display 9.AAA batteries which is more convenient to carry
Optical Light Sour ce Series of high stability of the laser light source is a self-developed test instrument. Which features advanced control technology, high output, ultra low-power operatin. It can work at 1310nm / 1550nm. It can export a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing and so on . Feature Single to -tri-wavelength combination Continuous and modulated signal Real-time display of battery level and lower power indication Back light function Auto off function Alkaline battery
Optical Light Source
wavelength
1310nm / 1550nm
output power
> -7dBm
Type of laser
LD
Spectral width
5nm
Connector type
FC/SC
Fiber type
SM MM
Audio carrier
0Hz, 270Hz, 1KHz, 2KHz
Battery type
AAA
working time
>30hours
Storage temperature
-20---+70
working temperature
-10---+60
Working altitude
2500m
Weight（g）
160
Size（mm）
130mm* 63mm * 29mm
