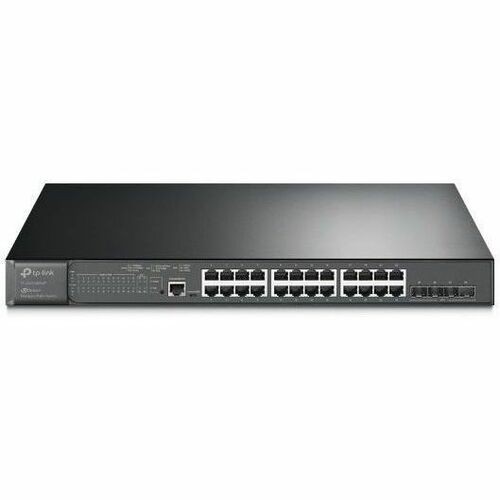

TP-Link SG3428X Omada 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Brand: TP LINK UPC: 0840030702082 Mfr Part #: SG3428X
General Information
10G Uplink Managed Switch for a CompleteOmada Network
-
10G Lightning-Fast Uplink Connection
4? 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
-
Gigabit Connections
24? Gigabit Ethernet Ports Offer Reliable Connections
-
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
-
Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Enterprise Switch with 10G Uplink
4? 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
-
Hassle-Free Cloud or On-Premises Controllers
-
Multi-Site Cloud Management
-
Zero-Touch Provisioning (ZTP)
-
Intelligent Monitoring
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
More from the Manufac
?
Media & Performance Media Type Supported: Twisted Pair Media Type Supported: Optical Fiber Ethernet Technology: 10 Gigabit Ethernet Ethernet Technology: Gigabit Ethernet Network Technology: 10/100/1000Base-T Network Technology: 10GBase-X
?
I/O Expansions Number of Total Expansion Slots: 4 Expansion Slot Type: SFP+ Number of SFP+ Slots: 4
?
Network & Communication Layer Supported: 3 Networking Standards: IEEE 802.1p Networking Standards: IEEE 802.3ad Networking Standards: IEEE 802.1D Networking Standards: IEEE 802.1w Networking Standards: IEEE 802.1s Networking Standards: IEEE 802.3x Networking Standards: IEEE 802.1Q Networking Standards: IEEE 802.1x Networking Standards: IEEE 802.1ab
?
Management & Protocols Manageable: Yes
?
Power Description Input Voltage: 120 V AC Input Voltage: 230 V AC Frequency: 50 Hz Frequency: 60 Hz Power Source: Power Supply Power Consumption: 23.60 W
?
Physical Characteristics Form Factor: Rack-mountable Form Factor: Desktop Height: 1.7" Width: 17.3" Depth: 7.1"
JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots Power Cord Quick Installation Guide Rackmount Kit Rubber Feet Environmentally Friendly: Yes Environmental Certification: RoHS Country of Origin: China
?
Warranty Limited Warranty: Lifetime Store Policies
