Overview:
Features:
- Innovative energy-efficient technology saves power up to 18%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 96Gbps Switching Capacity
- Auto MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store and Forward.
- Rack-mountable
- Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
2
Power Supply
100-240VAC, 50/60Hz
Power Consumption
Maximum: 29.8W (220V/50Hz)
Dimensions (W x D x H)
17.32*8.7*1.73 in. (440*220*44 mm)
PERFORMANCE
Switching Capacity
96Gbps
Packet Forwarding Rate
71.4Mpps
MAC Address Table
8K
Buffer Memory
16Mb
Jumbo Frame
10KB
Transfer Method
Store-and-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents

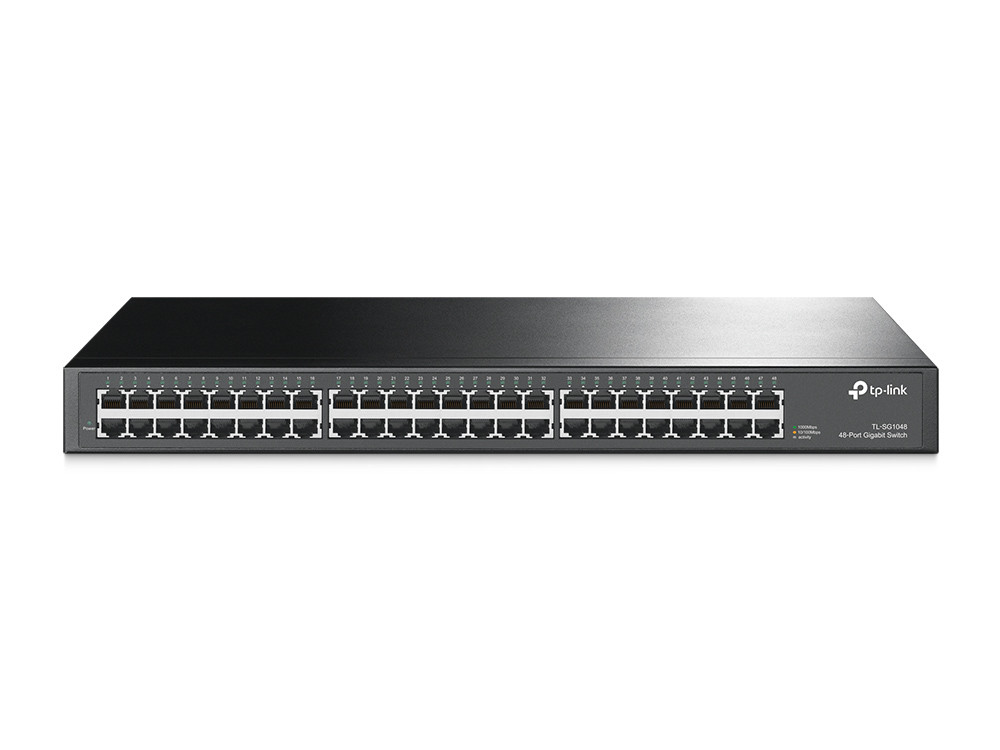

48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
