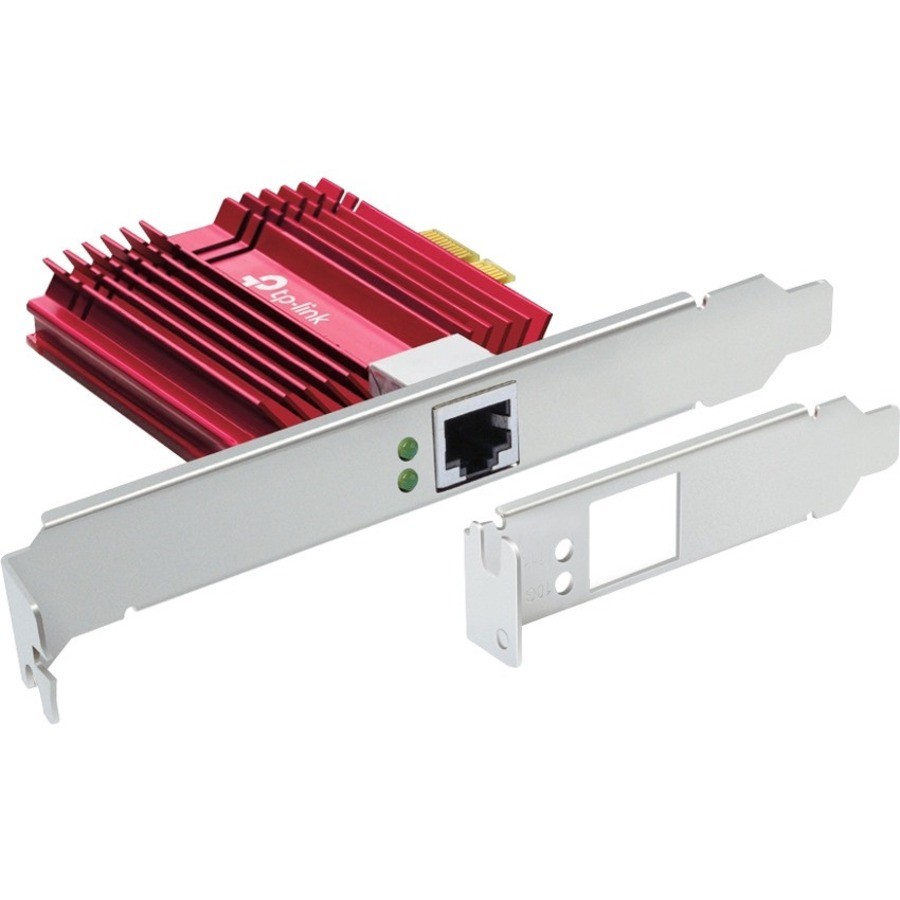

TP-Link TX401 - 10GB PCIe Network Card (246156) TP-Link TX401 - 10GB PCIe Network Card (246156)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 10 Gigabit PCIe Network Adapter Standard/Low-Profile Brackets Quick Installation Guide Resource CD 1.5 m CAT6A Ethernet Cable
Additional Information: Legal Disclaimer: Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10 faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.
Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is includedrated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Comprehensive System Support - Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs.
Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second10 faster than standard Gigabit Ethernet. Its a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.
Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
HARDWARE FEATURES
Interface
1x PCI Express 3.0 x4, 1x RJ45 Gigabit/Megabit Port
Network Media
LED
10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
Wireless Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz,
IEEE802.3an,
IEEE802.3az, IEEE 802.3x
Data Rates
100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,
200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
Flow Control
802.3x
OTHERS
Certification
FCC, CE, RoHS
Package Contents
10 Gigabit PCIe Network Adapter (TX401)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD
1.5 m CAT6A Ethernet Cable
System Requirements
Windows 10/8.1/8/7, Windows Servers 2019/2016/
2012 R2, Linux
Environment
Operating Temperature: 0oC-40oC (32oF -104oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Item Dimension (L"x W"x H")
8 x 6 x 2
Weight
1.00 LB
Warranty Information
2 years
Package Contents:
- 10 Gigabit PCIe Network Adapter
- Standard/Low-Profile Brackets
- Quick Installation Guide
- Resource CD
- 1.5 m CAT6A Ethernet Cable
SpecificationPhysical CharacteristicsForm FactorPlug-in CardProduct ColorRedHeight3.9"Color Warranty2 YearInterfaces/PortsTotal Number of Ports1Host InterfacePCI Express 3.0 x4Number of Network (RJ-45) Ports1General InformationBrand NameTP-LinkMarketing Information Arm Your PC with the Latest 10G Speeds PCIe 3.0 Slot to 10 Gigabit Ethernet Network Adapter TX401 Upgrade to 10G Networking 10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second-10? faster than standard Gigabit Ethernet. It's a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access. 10 Gbps Internet Access Make Full Use of Your High-Speed Internet Access 10 Gbps NAS Connection Lightning-Fast Local Data Transmissions 10 Gbps Host Server Building High Hardware Configuration for a Powerful Server Play Never Ends with 10G With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character. Local Data Transmissions in Seconds For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office. Versatile, Multi-Speed Compatibility 10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly. QoS Support A Bandwidth Buff for Gaming Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers. Strengthened PCI Express 3.0 ?4 Supports PCI Express Gen3 ?4 for more efficient data transmissions. Easy Setup Simple software installation with the intuitive Utility on the provided CD. Comprehensive System Support Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux. More from the Manufacturer Product Type10Gigabit Ethernet CardProduct Name10 Gigabit PCIe Network AdapterManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTX401Product ModelTX401Media & PerformanceMaximum Data Transfer Rate80 Gbit/sMedia Type SupportedTwisted PairTitleProduct TitleTP-Link TX401 - 10GB PCIe Network CardNetwork & CommunicationNetwork Technology10GBase-T Shipping
