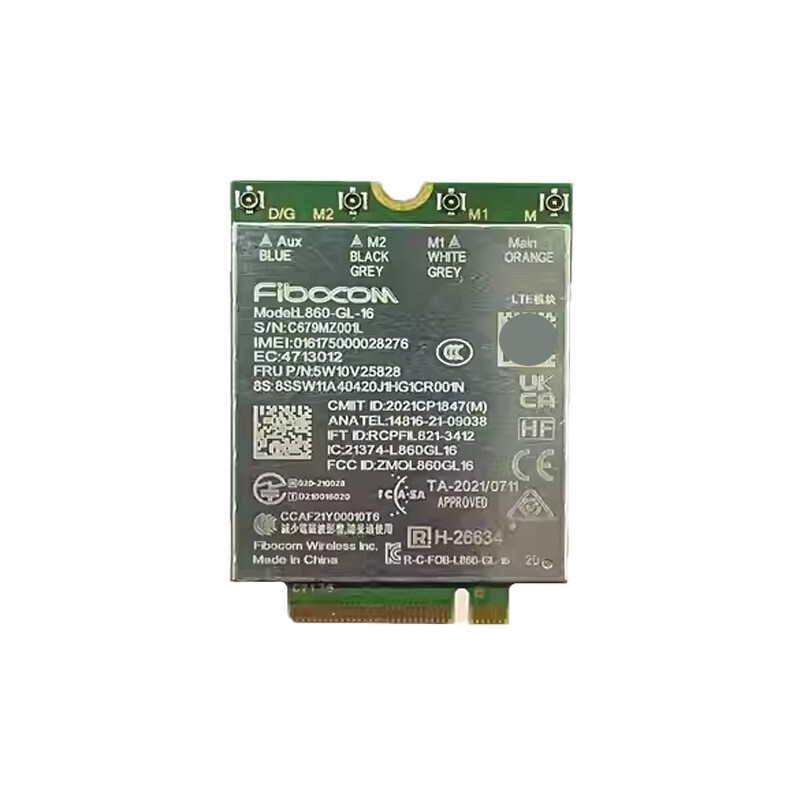

Equipment parameters1、Fibocom L 860—GLWeight：6.2gHardware Requirements：M.2 Key-BWarranty Type：Customer Replaceable Unit (CRU)Brand：ThinkPadOS Requirements：Windows 10/Windows11Packed Weight：0.03kgOther Electrical Specifications ：Antenna Connector: WWAN Antenna x 4, Support 4x4 MIMO Protocol Stack: IPV4/IPV6 Firmware Update: PCIeOther Operating Environment Extended operating temperature: –20℃ to +65℃ Storage temperature: –40℃ to +85℃Other Physical Specifications Interface: M.2 Key-BAgency Approvals CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.Height 2.3mmLength 30mmDepth 42mmWarranty Period 1 YearMaximum Operating Temperature 55℃Minimum Operating Temperature -10℃Maximum Relative Humidity (%) 95%Minimum Relative Humidity (%) 5%Included Accessory Warranty posterVoltage：DC 3.135V to 4.4V, typical 3.3VSupported Band：FDD-LTE: TDD-LTE: B34/38/39/40/41(HPUE)/421)/43/48 LAA Band 46 Receiver only WCDMA/HSPA+:B1/2/4/5/8 GNSS:GPS/BDS/GLONASS/Galileo 1) B42 disabled as of FCC certification now
2、Fibocom L worldwide
Part no. L860-GLManufact. FibocomDimensions[mml 30x42Formfaktor/connect M.2Temp.-Range -20°C to +65°Technology LTEBand GSMLTE FDD Band: Frequency rangeCDMABand: 1,2,4,5,8Datarate download CAT 16(1Gbps)Data rate upload CAT 16(75 Mbps)TE TDD: B38/39/40/41/42JMTS: Band 1,2,4 5,8Form factor: M.2 packageDL 5CA on 4 bands, DL 256 QAM supportDL-MIMO: 2*2.4*2.4*4DL 4x4 MIMO: Band 1,2,3,4,7,.30,40,41 NB,66AA(Band 46)integrated GNSSeSlM interface supportDperating Voltage: 3.135V~4.4V, Typical 3.3VAT Command Set: 3GPP TS 27.007 and 27.005, proprietary FlBOCOM AT commands
TX Power:FDD& TDD LTE: 23 dBmWCDMA: 23.5dBmRX Sensitivity: FDD& TDD LTE: -98 dBm~102 dBm
DataFDD& TDD LTE: 1Gbps DL(Cat 16),150MbpsUL(Cat 13,2CA on intra bands)UMTS/HSPA+:42Mbps DL(Cat 24),11.5MbpsUL(Cat 7)
InterfaceUSIM: 3V/1.8VPCleBody SarDriver: Windows 10 and Linux
