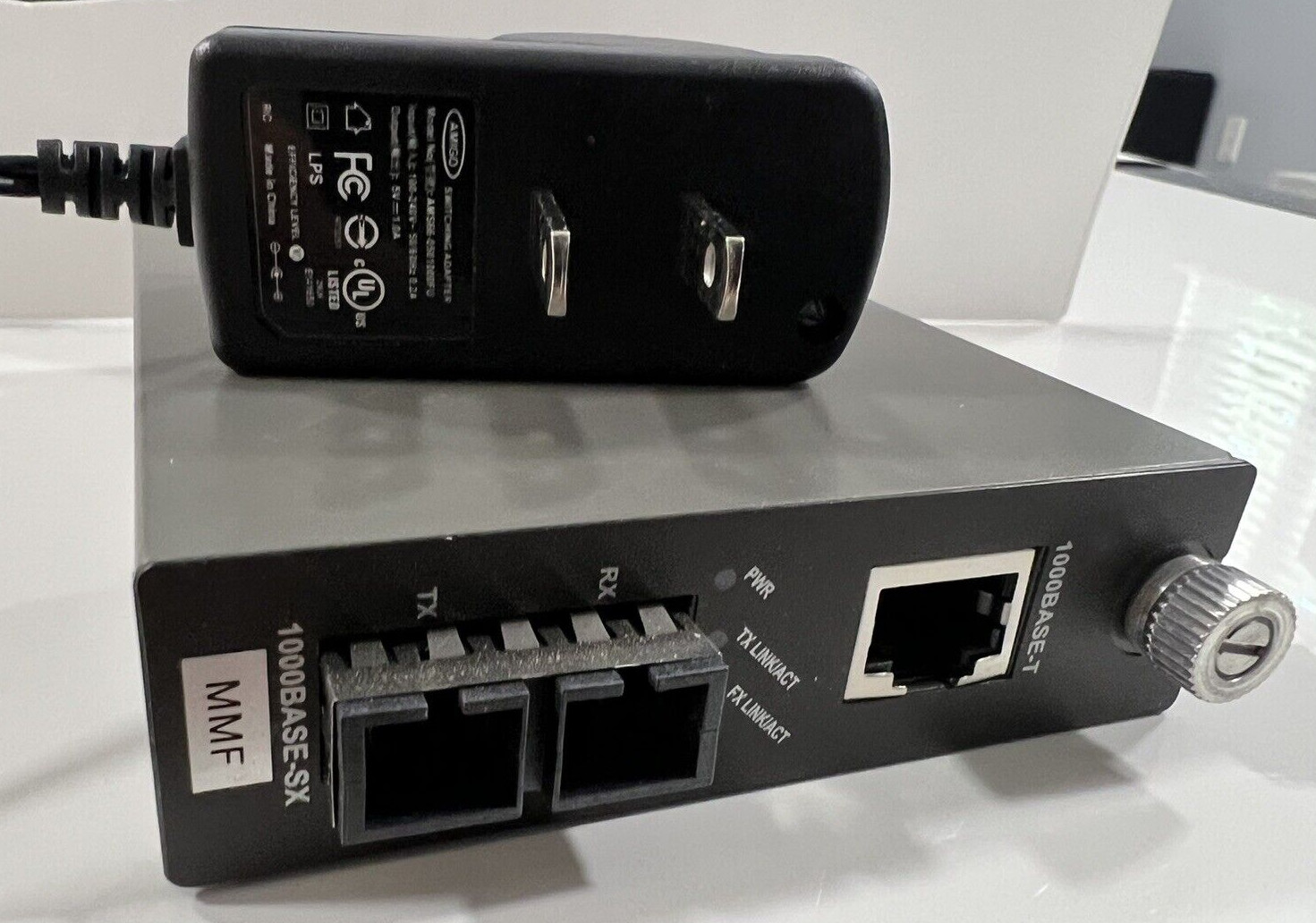

TFC-1000MSC (Version D1.0R)used , like new, perfect working condition , some light scratch on some of the converter, removed from a system, bc of a full system upgrade
Intelligent 1000Base-T to 1000Base-SXMulti-Mode SC Fiber Converter

• Functions as a standalone converter
• Compatible with TRENDnet's TFC-1600 fiber chassis system
• SC-type 1000Base-SX Multi-Mode fiber port
• Fiber networking over distances of up to 550 meters (1800 ft.)
• 2 Gbps switching capacity
• LEDs convey power and copper/fiber link and activity

TRENDnet’s TFC-1000MSC, Intelligent Fiber Converter, is compatible with the TFC-1600 chassis system or functions as a standalone unit. Thisconverter is a Multi-Mode SC-Type fiber converter that supports SNMP (when used TFC-1600MM) and spans distances up to 550 m (1,800 ft.). Portsinclude a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.Specifications:Standards

• IEEE 802.3ab (1000Base-T)
• IEEE 802.3z (1000Base-SX)
• IEEE 802.3x

Device Interface

• 1 x Gigabit port
• 1 x SC type fiber port
• LED indicators

Network Media

• 1000Base-TX: Cat.5e, 6 EIA/TIA-568 100-ohm STP, up to 100 m
• 1000Based-SX: 50/125μm multi-mode SC-Type fiber optic, up to 550 m

Protocol

• CSMA/CD

Dip Switch

• LLCF (enable & disable)
• Fiber (forced/auto-negation)

Data Transfer Rate

• Gigabit Ethernet: 2000 Mbps (full duplex)

Jumbo Frame

• 9K bytes

Wavelength

• 850 nm

Optical Output Power

• Min: -9.5 dBm
• Max: -4 dBm

Optical Input Power

• Min. (Sensitivity): -18 dBm
• Max: 0 dBm

Power Budget

• 8.5 dBm
• 550 m. (1800 ft.)

Power

• Input: 100–240 V 50/60 Hz 0.2 A
• Output: 5 V DC 1 A
• Consumption: 3.44 Watts (max.)

Special Features

• Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Lose Return)
• Monitor and configure Ethernet or Fiber's duplex mode, LLCF, and receive link down information via management module TFC-1600MM and chassis TFC-1600
• Status LED indicators for Power and Link/Activity
• Wall mountable
• Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

Operating Temperature

• 0 – 40°C (32 – 104°F)

Operating Humidity

• Max. 90% non-condensing

Dimensions

• 120 x 88 x 25 mm. (4.7 x 3.46 x 0.98 in.)

Weight

• 354 g (12.5 oz.)

Certifications

• CE
• FCC

Package Contents:

• TFC-1000MSC
• Power Adapter (5 V DC, 1 A)
