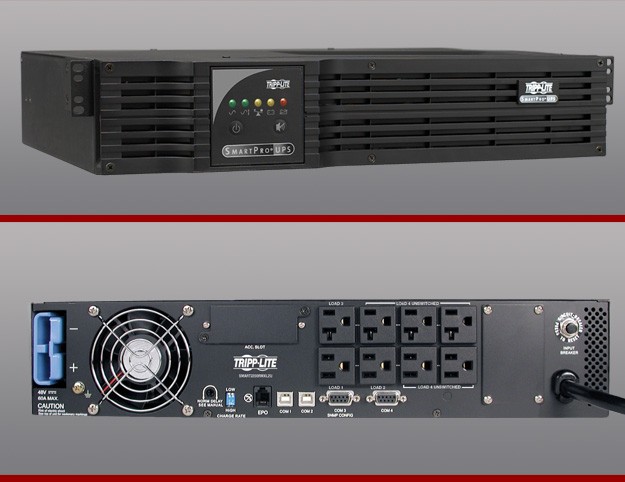

Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM (SMART2200RMXL2U) Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sign Wave USB DB9 SNMP 2URM (SMART2200RMXL2U)Package Contents: SmartPro SMART2200RMXL2U 1950VA Rack/Tower UPS USB Cable DB9 Cable Rack-mounting Hardware Tower support Stands Safety Instructions Advanced User Guide
Certifications & Standards: UL1778 (USA) CSA (Canada) NOM (Mexico) FCC Part 15 Category A (EMI)
Environmentally Friendly: Yes
Recycled: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Philippines
Product Description
This item is brand-new, factory sealed.
2200VA line interactive UPS system for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed depth of only 19 inches. Expandable battery runtime with optional BP48V24-2U and BP48V60RT-3U external battery packs. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100, 110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug (with NEMA 5-15P plug option) and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipme
Package Contents:
- SMART2200RMXL2U UPS System
- Poweralert Software CD-ROM
- USB, Serial And EPO Cabling
- Owner's Manual
SpecificationPower DescriptionLoad Capacity (Watt)1950 WOutput Power Factor1.0Surge Energy Rating380 JInput Voltage120 V ACOutput Voltage
- 100 V AC
- 110 V AC
- 115 V AC
- 120 V AC
Load Capacity (VA)1950 VAWaveform TypePure Sine WaveOutput Frequency60 HzPhysical CharacteristicsForm FactorRack/TowerWeight (Approximate)65.30 Height2UWarrantyLimited Warranty3 YearControls/IndicatorsStatus Indicators 5 Front Panel Leds: Green Power Led Green Voltage Correction Led 3 Color Battery Charge Led 3 Color Output Load Led Red Battery Warning Led Battery InformationBackup/Run Time (Full Load)4 MinuteDC System Voltage72 V DCReplaceable BatteryYesBattery ChemistryLead AcidHot SwappableYesBackup/Run Time (Half Load)12 MinuteTypical Battery Recharge Time4.50 HourBattery CharacteristicsValve-regulatedDisplay & GraphicsDisplayLCDGeneral InformationBrand NameTripp Lite seriesMarketing Information 1.95kVA/1.95kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your IT equipment or destroy data. The SMART2200RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72VRM2U, sold separately). Optional LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options. NEMA Outlets Protect Your Connected Components One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split into two independently switchable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating. Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART2200RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure. Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment. More from the Manufacturer Product TypeLine-interactive UPSProduct NameSmartPro SMART2200RMXL2U 1950VA Rack/Tower UPSManufacturerEaton CorporationManufacturer Part NumberSMART2200RMXL2UProduct ModelSMART2200RMXL2U?Product LineSmartProPackaged Quantity1 EachTitleProduct TitleTripp Lite by Eaton series UPS SmartPro 1950VA 1950W 120V Line-Interactive Sine Wave UPS - 7 Outlets Extended Run Network Card Option LCD USB DB9 ENERGY STAR V2.0 2U Rack/Tower (SMART2200RMXL2U)Technical InformationReceptacle Type
Receptacle Detail
- 6 x NEMA 5-20R
- 1 x NEMA L5-20R
Overload ProtectionYesPhaseSingle PhasePlug/Connector TypeNEMA 5-20PCord Length10 ftProtection Type
- Over Voltage
- Under Voltage
Application/Usage
Emergency Power OFFYesTransfer Time4 msManagementNetwork ManagementSNMP/WebAlarm
- Remote Shutdown
- UPS StartUp
- Power Failure
- Overload
- UPS Fault
- Low PortYesSerial PortYesUSB (HID Compliant) PortYesEnvironmental ConditionsMaximum Storage Elevation32808 ftMaximum Operating Temperature104°F (40°C)Minimum Operating Temperature32°F (0°C)Storage Temperature5°F (-15°C) - 122°F (50°C)Maximum Operating Elevation10000 ft Shipping
