Manufacturer: Tripp Lite

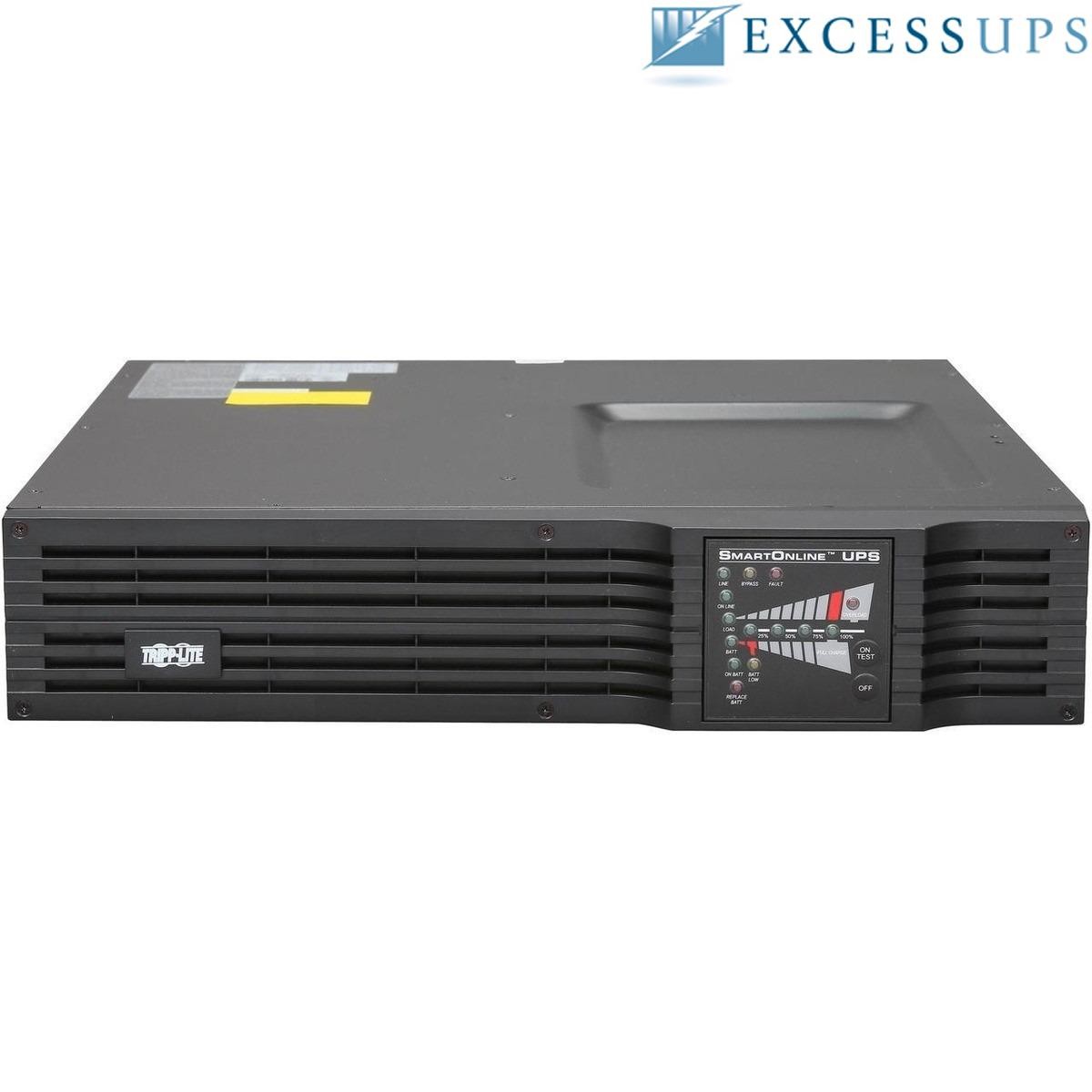

Model: Tripp Lite SmartOnline SUINT1500RTXL2UA 1500VA 1200W RM 2U
Condition: New Batteries, Refurbished UPS
Part Number: SUINT1500RTXL2UA
Maximum output: 1200W / 1500VA
Input: C14 (200/208/220/230/240V AC)
Output: (6) IEC 60320 C13
Topology: Double Conversion Online UPS – Pure Sine Wave Output
Typical backup time at half load: 12.6 minutes (675 Watts)
Typical backup time at full load: 4.5 minutes (1200 Watts)
Warranty: 1 year full replacement warranty
Description: The Tripp Lite SmartOnline SUINT1500RTXL2UA is a 1500VA / 1200W online double-conversion UPS that delivers continuous pure sine wave output with zero transfer time, protecting critical IT and network equipment from power outages, surges, and voltage fluctuations. It operates on 200–240V input/output, includes 6 IEC C13 outlets with dual load banks, supports USB and DB9 serial communication with optional SNMP network management, allows expandable runtime with external battery packs, and features a 2U rack/tower design with hot-swappable batteries for easy style="text-align: center;">Tripp Lite SmartOnline Double-Conversion UPS 1500VA SUINT1500RTXL2UA - User's - Tripp Lite SmartOnline 1500VA 1200W Specifications:
Input: Rated Input Current (Maximum Load)6.4ANominal Input Voltage(s) Supported200V AC; 220V AC; 230V AC; 240V ACUPS Input Connection TypeIEC320-C14 inletInput PhaseSingle-Phase Output Output Volt Amp Capacity (VA)1500Output Capacity (kVA)1.5Output Watt Capacity (Watts)1200Output kW Capacity1.2Output Voltage200V; 208V; 220V; 230V; 240VOutput WaveformPure Sine WaveOutput Receptacles(6) IEC C13Power Factor0.8Crest Factor3:1Frequency Compatibility50 / 60 HzLoad ManagementTwo switchable load banks (3 outlets each)Individually Controllable Load BanksYes Battery: Battery TypeValve Regulated Lead Acid (VRLA)Full Load Runtime4.5 minutes (1200W)Half Load Runtime12 minutes (600W)DC System Voltage48VExpandable RuntimeYes (supports external battery packs)Compatible External Battery PacksBP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible), BP48V27-2US (multi-pack compatible)Battery Recharge Time< 6 hours (typical)Battery AccessFront panel accessBattery Type ReplacementHot-swappable, user replaceable Voltage Regulation: TechnologyOnline Double-ConversionOutput Regulation±2% (line / battery mode)Overvoltage CorrectionUp to 275V inputUndervoltage CorrectionDown to 130V (load dependent)Transfer Time0 ms (online mode) Surge / Noise Protection Surge Protection Rating480 JoulesEMI / RFI FilteringYesResponse TimeInstantaneous Physical Form FactorRackmount / Tower (2U)Dimensions (H x W x D)89 x 445 x 483 mmWeight~21.5 kgCoolingFanHousing Temperature0°C to 40°CStorage Temperature-15°C to 50°CHumidity0–95% non-condensingNoise Level~45 dBAEfficiencyUp to 86% User Interface, Alerts & Communications Front Panel IndicatorsLED status indicators for AC input, AC output, battery, and fault conditionsAudible AlarmAlerts for power failure, low battery, overload, and UPS fault conditionsCommunication InterfacesUSB, DB9 serial, contact closure, and EPO portNetwork ManagementSlot for optional SNMP/Web network management card (WEBCARDLX compatible)Software SupportPowerAlert software for monitoring, shutdown, and event loggingCommunication FeaturesSupports simultaneous monitoring via USB and serial interfacesWatchDog SupportCompatible with WatchDog auto-restart and OS recovery functionsMonitoring FunctionsLoad level, battery status, input/output voltage, system alarmsControlsPower ON/OFF, alarm silence/self-test
