Manufacturer: Tripp Lite

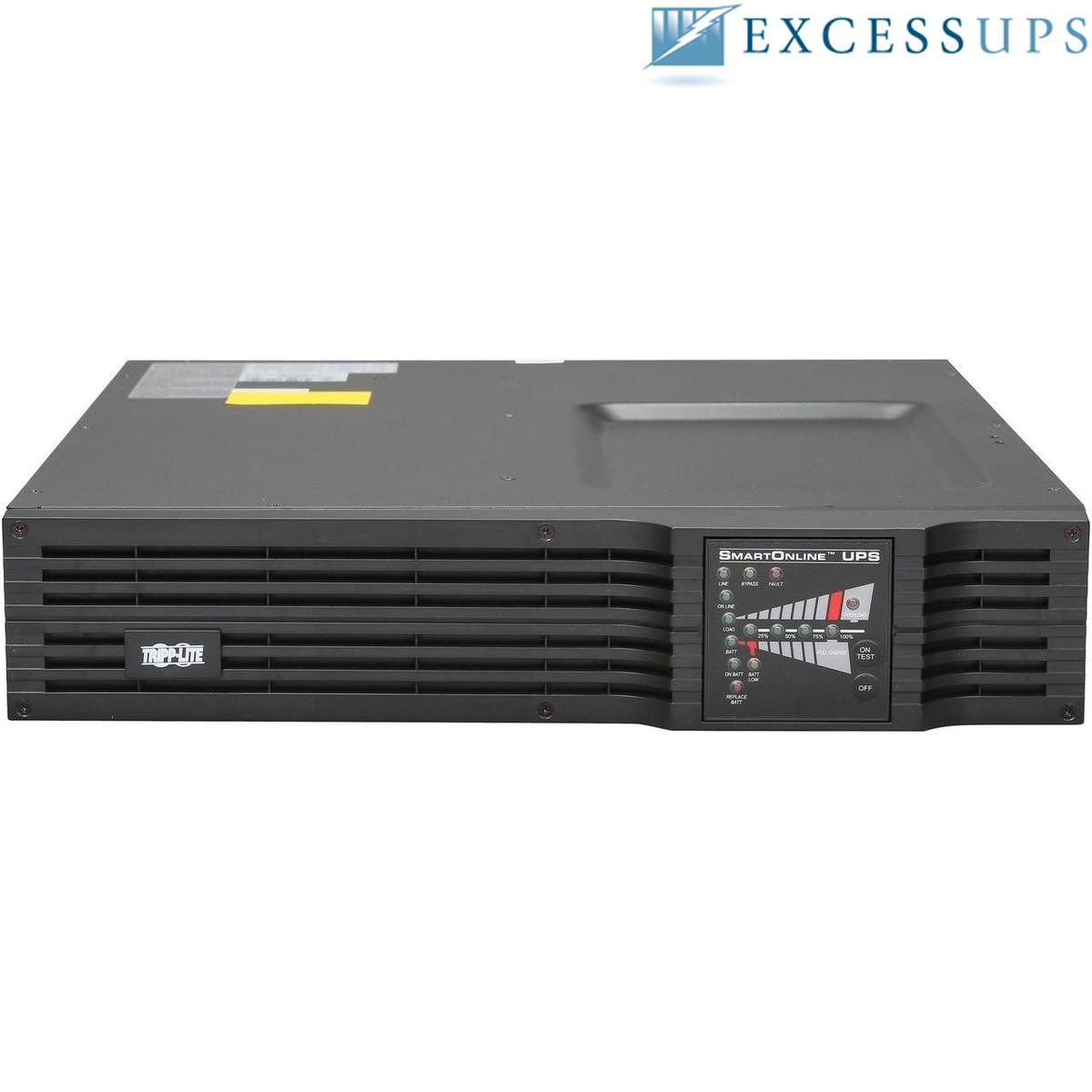

Model: Tripp Lite SmartOnline 1000VA 800W RM 2U
Condition: New Batteries, Refurbished UPS
Part Number: SUINT1000RTXL2UA
Maximum Output: 800W / 1000VA
Typical Backup Time at Half Load: 12 minutes (400W)
Typical Backup Time at Full Load: 4 minutes (800W)
Warranty: 1 year full replacement warranty
Tripp Lite SmartOnline 1000VA 800W RM 2U 200/240V SUINT1000RTXL2UA – User Manual
SUINT1000RTXL2UA - Tripp Lite SmartOnline 1000VA Specifications:
Input:
Rated input current (Maximum Load)
5.1A (200V), 4.9A (208V), 4.6A (220V), 4.4A (230V), 4.2A (240V)
Nominal Input Voltage(s) Supported
200V; 208V; 220V; 230V; 240V AC
UPS Input Connection Type
IEC320-C14
Input Phase
Single-Phase
Output:
Output Volt Amp Capacity (VA)
1000
Output Capacity (kVA)
800 W
Output Capacity Details
Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds, >150% for 0.5 sec before switching to bypass or shutdown.
Power Factor
0.8
Crest Factor
3:1
Nominal Voltage Details
230V default (selectable 200/208/220/240V)
Frequency Compatibility
50 / 60 Hz
Frequency Compatibility Details
Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation
Output Voltage Regulation (Line Mode)
+/- 2%
Output Voltage Regulation (Economy Line Mode)
+/- 10%
Output Voltage Regulation (Battery Mode)
+/- 2%
Output AC Waveform (AC Mode)
Pure Sine wave
Output AC Waveform (Battery Mode)
Pure Sine wave
Nominal Output Voltage(s) Supported
200V; 208V; 220V; 230V; 240V
Output Receptacles
(6) C13 outlets
Individually Controllable Load Banks
No
Battery:
Battery Type
Valve Regulated Lead Acid (VRLA)
Full Load Runtime (min.)
4.5 minutes (800W)
Half Load Runtime (min.)
12.6 minutes (400W)
Expandable Battery Runtime
Yes, compatible with BP24V15RT2U, BP24V28-2U, BP24V70-3U, BP24V36-2US
Expandable Runtime
Yes
DC System Voltage (VDC)
24V
Battery Recharge Rate (Included Batteries)
<6 hours from 10% to 80%
Battery Access
Front panel battery access door
Internal UPS Replacement Battery Cartridge
RBC92-2U
Battery Replacement Description
Hot-swappable, user replaceable batteries
Voltage Regulation:
Voltage Regulation Description
Online, double-conversion power conditioning
Overvoltage Correction
Maintains ±2% output up to 275V
Undervoltage Correction
Maintains ±2% output down to 130V (under 70% load), 160V (>70% load)
User Interface, Alerts & Controls:
Switches
2 switches: Power On/Off and Alarm-Cancel/Self-Test
Alarm Cancel Operation
Power-fail alarm can be silenced by following on-screen prompts
Audible Alarm
Alerts for startup, power-failure, low battery, overload, UPS fault, remote shutdown
LED Indicators
14 LEDs (line power, online, economy/bypass, on-battery, overload, battery low, replace battery, fault); 4-LED meter for load & battery
EPO Interface
Yes, built-in
Surge / Noise Suppression:
UPS AC Suppression Joule Rating
1225 Joules
UPS AC Suppression Response Time
Instantaneous
UPS Dataline Suppression
TEL/DSL (1 in / 1 out), 10/100Base-T Ethernet
EMI / RFI AC Noise Suppression
Yes
Physical:
Primary Form Factor
Rackmount
Cooling Method
Fan
Rack Height
2U
UPS Dimensions (H x W x D)
3.5 x 17.5 x 13.5 in / 8.89 x 44.45 x 34.29 cm
UPS Weight
41.8 lbs / 18.96 kg
UPS Housing style="line-height: 150%;">Operating Temperature Range
0–40°C / 32–104°F
Storage Temperature Range
-15–50°C / 5–122°F
Relative Humidity
0–95%, non-condensing
AC Mode BTU / Hr. (Full Load)
408 BTU/hr
Battery Mode BTU / Hr. (Full Load)
444 BTU/hr
AC Mode Efficiency Rating (100% Load)
87%
Operating Elevation (m)
0-3000 m / 0–10000 ft
Communications:
Network Management Cards
TLNETCARD, WEBCARDLX, SNMPWEBCARD, MODBUSCARD . Optional
Ports
USB (HID), DB9 Serial, EPO, contact closure, slot for SNMP/Web
PowerAlert Software
Free downloadable PowerAlert software enables safe unattended file saves and system shutdown during prolonged power failures. Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Management Card Description
Network management card Optional
