Manufacturer: Tripp Lite

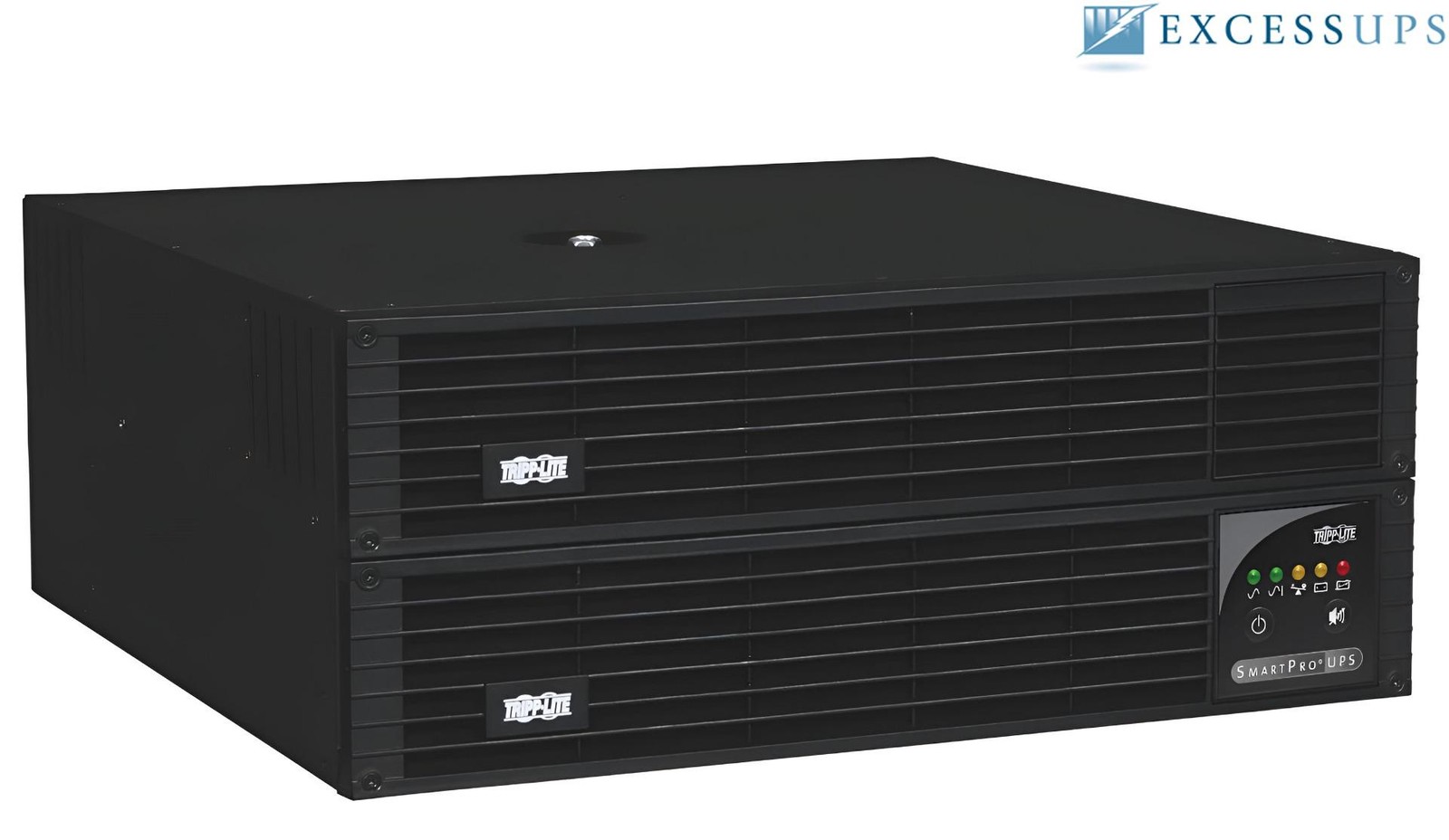

Model: Tripp Lite SmartPro UPS 2200VA 1900W, Rackmount 4U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMART2200CRMXL
Maximum Output: 1900W / 2200VA
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Input: NEMA 5-20P, 120V, 20A
Output: (4) NEMA 5-15R + (4) NEMA 5-15/20R
Output Waveform: Pure Sine Wave
Typical Backup Time at Half Load: 14.3 Minutes (950W)
Typical Backup Time at Full Load: 4 Minutes (1900W)
Expandable Runtime: Yes, with Compatible External Battery Packs
Warranty: 1 Year Full Replacement Warranty
Description: The Tripp Lite SMART2200CRMXL is a 2200VA / 1900W line-interactive UPS with AVR and sine-wave output, designed for servers, networking equipment, and other critical systems. It features a NEMA 5-20P input and (8) output receptacles: (4) 5-15R and (4) 5-15/20R. USB and RS-232 communications, EPO, optional network management, and controllable load banks provide flexible monitoring and control. Extended runtime is supported with compatible 48V external battery packs, including BP48V24-2U, BP48V27-2US, and BP48V60RT-3U.
Tripp Lite SmartPro 2200VA 1900W RM 120V SMART2200CRMXL - User Manual
SMART2200CRMXL - Tripp Lite SmartPro LiteModelSMART2200CRMXLProduct FamilySmartProUPS TopologyLine-InteractiveForm FactorRackmountRack Height4URated Power Capacity2200VA / 1900WPower Factor0.86Nominal Input Voltage120V ACNominal Output Voltage110V / 115V / 120VInput PlugNEMA 5-20POutput Receptacles(4) NEMA 5-15R, (4) NEMA 5-15/20ROutput WaveformPure Sine WaveAutomatic Voltage Regulation (AVR)YesExpandable RuntimeYesConditionNew Batteries, Refurbished UPSWarranty1 Year Full Replacement Warranty Input Rated Input Current at Maximum Load16ANominal Input Voltage120V AC
UPS Input Connection Type
NEMA 5-20P
Input Circuit Breaker20ARecommended Electrical Service20A / 120VInput PhaseSingle-PhaseInput Cord Length10 ft (3.1 m)AVR Input Operating Range83–145V Output Output Volt-Amp Capacity2200VAOutput Capacity2.20kVAOutput Watt Capacity1900WOutput kW Capacity1.90kWPower Factor0.86Nominal Output Voltage110V / 115V / 120VNominal Voltage in Battery Mode120VFrequency Compatibility60HzOutput Voltage Regulation – Line Mode-18% / +8%Output Voltage Regulation – Battery Mode±5%AC Mode WaveformSine WaveBattery Mode WaveformPure Sine Wave
Output Receptacles
(4) NEMA 5-15R
(4) NEMA 5-15/20R
Total Output Receptacles8Load Management ReceptaclesThree Switchable Single-Outlet 5-15R Load BanksIndividually Controllable Load BanksYes Battery & Runtime Battery TypeValve-Regulated Lead-Acid (VRLA)DC System Voltage48V DCInternal Replacement Battery CartridgeRBC94-2U (Quantity 2)Battery AccessFront-Panel Battery Access DoorBattery ReplacementHot-Swappable, User-ReplaceableRecharge TimeLess than 3.6 Hours from 10% to 90%Expandable RuntimeYesExternal Battery Pack SupportYesCompatible External Battery PackBP48V24-2U – Limit 1Additional Compatible Battery PackBP48V27-2US – Multi-Pack CompatibleAdditional Compatible Battery PackBP48V60RT-3U – Multi-Pack Compatible Voltage Regulation Voltage Regulation TypeAutomatic Voltage Regulation (AVR)AVR Operating Range83–145VOvervoltage Correction127–145V Reduced by 12%Undervoltage Correction92–107V Boosted by 14%Severe Undervoltage Correction83–95V Boosted by 24% User Interface, Alerts & Controls Control SwitchesPower On/Off and Alarm Cancel/Self-TestCharger ControlsRear-Panel Low/High Charger SettingsAlarm CancelYesAudible AlarmYesPower Failure AlarmYesOverload AlarmYesLow Battery AlarmYesLED Indicators5Line Power IndicatorYesBattery Power IndicatorYesOverload IndicatorYesVoltage Regulation IndicatorYesLow/Replace Battery IndicatorYes Surge & Noise Suppression AC Suppression Rating570 JoulesAC Suppression Response TimeInstantaneousEMI / RFI Noise SuppressionYes Communications & Management USB CommunicationYesUSB HIDSupportedSerial CommunicationYesSerial InterfaceDB9Emergency Power Off (EPO)YesNetwork / Accessory SlotYesNetwork Management CardOptionalRemote Network MonitoringSupported with Optional Network CardRemote Network ManagementSupported with Optional Network CardSNMP / Web ManagementSupported with Compatible Optional Network CardCompatible Network Management CardSNMPWEBCARDCompatible Network Management CardWEBCARDLXCompatible Relay / Contact Closure CardRELAYIOCARDPowerAlert SoftwareSupportedWatchDog CompatibilitySupportedAutomatic OS ShutdownSupported with Compatible Communications / SoftwareCommunications InterfaceUSB (HID), DB9 Serial, EPO, SNMP/Web Accessory Slot Physical Primary Form FactorRackmountRack Height4UCooling MethodFanHousing MaterialSteelUPS Height6.89 in (17.50 cm / 175 mm)UPS Width17.30 in (43.94 cm / 439 mm)UPS Depth17.80 in (45.21 cm / 452 mm)UPS Weight100.3 lb (45.50 kg)Minimum Rack Depth without External Battery Pack22.8 inIncluded Mounting Accessory2POSTRMKITWMIncluded Installation Form Factor2-Post 19-Inch RackmountOptional 4-Post Full-Depth Rack Kit4POSTRAILKITOptional 4-Post Short-Depth Rack Kit4POSTRAILKITWMOptional Tower Stand2-9USTANDShipping Dimensions14.00 × 23.00 × 23.50 in (35.56 × 58.42 × 59.69 cm)Shipping Weight124 lb (56.25 kg) Environmental Operating Temperature32–104°F (0–40°C)Storage Temperature5–122°F (-15–50°C)Relative Humidity0–95%, Non-CondensingAC Mode Efficiency at 100% Load97%AC Mode Heat Output at Full Load242 BTU/hrBattery Mode Heat Output at Full Load885 BTU/hrAudible Noise45 dBA Maximum at 1 m
