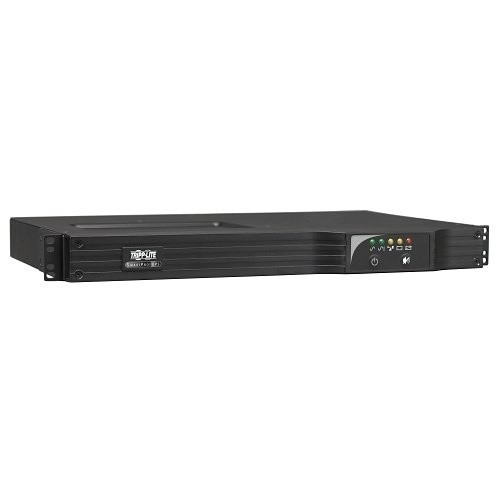

The Eaton Tripp Lite SMART750RM1U SmartPro is a 120V 750VA/600W line-interactive sine wave UPS system that provides complete power protection for critical network applications. Its highly efficient 1U design can be installed in a rack or positioned vertically, making it ideal for data centers, computer rooms, and network closets.
The UPS combines line-interactive automatic voltage regulation, network-grade surge suppression, and pure sine wave AC output during blackouts to keep advanced networking equipment running smoothly. It delivers 98% full load efficiency and provides approximately 4.9 minutes of runtime at full load and 13.2 minutes at half load. Six NEMA 5-15R outlets supply protected power, while hot-swappable internal batteries allow battery replacement without powering down connected equipment.
For management, simultaneous-use USB and RS-232 (DB9) serial ports support unattended shutdown, and a slot accepts optional network management cards for SNMP remote monitoring. LED indicators display power and battery status, and audible alarms alert you to low battery, on-battery, and overload conditions. The UPS ships with mounting hardware, USB and DB9 monitoring cables, EPO switching cabling, PowerAlert shutdown and monitoring software, and an instruction manual.
Key Features
- 750VA / 600W line-interactive UPS
- Pure sine wave output in AC and battery modes
- Automatic Voltage Regulation (AVR)
- Network-grade surge suppression
- 98% full load efficiency
- 1U rack-mount or vertical installation
- 6 x NEMA 5-15R outlets
- Hot-swappable internal batteries
- USB and RS-232 (DB9) serial ports for unattended shutdown
- Slot for optional network management card (SNMP)
- LED status indicators for power and battery
- Audible alarms for low battery, on battery, and overload
- PowerAlert software included
- TAA compliant
Specifications
- Brand: Eaton Tripp Lite
- Model: SMART750RM1U
- MPN: SMART750RM1U
- Product Line: SmartPro
- Product Type: Line-Interactive UPS
- Capacity: 750VA / 600W
- Input Voltage: 120V AC
- Output Voltage: 120V AC
- Waveform: Pure Sine Wave
- Outlets: 6 x NEMA 5-15R
- Input Plug: NEMA 5-15P
- Runtime (Full Load): 4.9 min
- Runtime (Half Load): 13.2 min
- Battery Type: Sealed Lead Acid
- Battery Recharge Time: 4 hours
- Hot-Swappable Batteries: Yes
- Communication Ports: USB, RS-232 (DB9)
- Network Management: SNMP (with optional card)
- Efficiency: 98% at Full Load
- Maximum Operating Temperature: 104°F
- Form Factor: 1U Rack Mount / Vertical
- Dimensions (W x H x D): 17.5" x 1.8" x 16.4"
- Weight: 30 lb
- TAA Compliant: Yes
- Included: UPS, Mounting Hardware, USB & DB9 Cables, EPO Cabling, PowerAlert Software, Instruction Manual
- Manufacturer: Tripp Lite by Eaton
