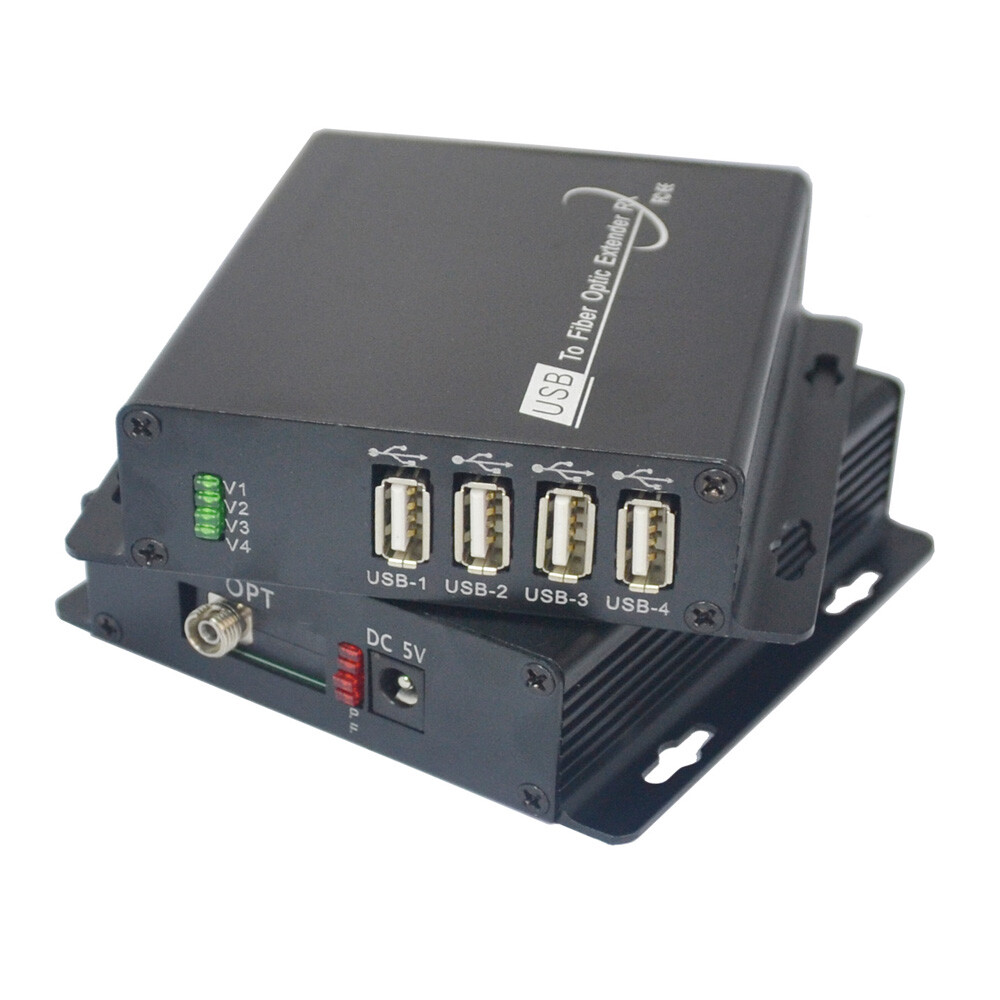

High Quality USB Extenders 1 in and 4 outUSB2.0 data over Fiber optic Media Converters up to 250 meters for Camera printer scannerDefault ship singlemode 0~250m version, if need multimode version (0~250m),leave us message after order.
Overview:
The USB2.0optical transceiver consists of a transmitter and a receiver, which extends thehost's USB interface (USB2.0) to the far end and expands to 4 USB ports througha single singlemode or multimode fiber. The maximum transmission distance is250 meters (single mode or multimode fiber optional). Supports USB 1.1 and 2.0types of high-speed cameras, hard drives, printers, scanners, audio devices,touch screens, game controllers and more. Products can be used in videoconferencing, multimedia information release, government departments, medicalsystems, commercial displays, multimedia functions, security monitoring,utilities and other fields.
Features:
1. Compatible with USB2.0 and USB1.1 protocols,supporting USB cameras, printers, USB flash drives, scanners, touch screens andother devices.
2. Automatic identification of high-speedHigh-speed (25Mbps ~ 480Mbps), full-speed Full-speed (500Kbps ~ 12Mbps),Low-speed Low-speed (10Kbps ~ 1.5Mbps) USB device.
3. Optical fiber transmission distance is 250meters (single mode or multimode fiber optional).
4. Fiber extension is extended to 4 USB portswith a maximum current of 500mA.
5. Single fiber transmission, no need drive,compatible with any system, plug and play.
Product parameters:
1. Fiber interface :FC(SC,ST optional)
2. Optical wavelength :1310nm/1550nm
3. Size: 104x102 x27mm(LxWxH)
4. Net weight 0.7Kg
5. Power section Adaptation voltage range 5V DC
6. Transmitter power consumption <5W
7. Receiver power consumption <5W
8. Operating environment Operating temperature-20°C-70°C
9. Storage temperature -40-85°C
10. Humidity 0-95% (no condensation)
Tip:
TX: 1 USB,connected to the host USB interface with a USB cable
RX:4 USB,connected to USB devices, maximum current 500mA
Package Included:
1 x USB transmitter
1 x USB receiver
2 x power supply adaptor (US,EU,UK,AU optional)
1 x User manual
