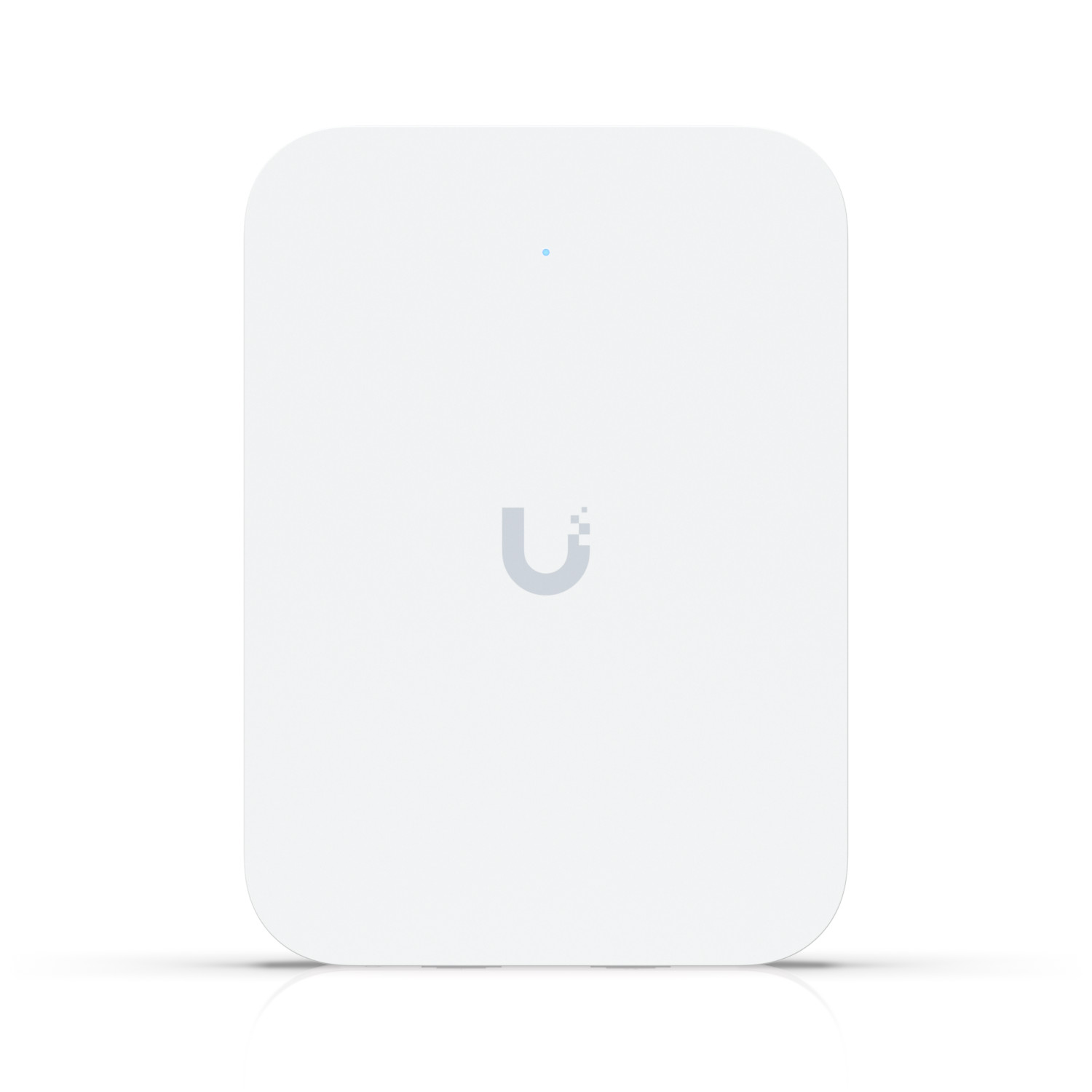

Access Point U7 In-Wall Model: U7-IW Product Description
Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.
Key Features
- WiFi 7
- 4 spatial streams
- 115 m² (1,250 ft²) coverage
- 200+ connected devices
- Powered using PoE/PoE+*
- 2.5 GbE uplink
Technical Specifications Max. Client Count200+Networking Interface(3) 2.5 GbE RJ45 portsPower MethodPoEPoE+ (Required for PoE output)Max. Power Consumption13W (Excluding PoE output)Dimensions137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")Weight400 g (14.1 oz)CertificationsCE, FCC, IC, SRRC, Anatel: 03909-25-08356802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11k Radio Resource Management (RRM)True802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)802.11r Fast RoamingTrue802.11v BSS Transition ManagementTrueAdvanced Radio ManagementTrueAmbient Operating Humidity5 to 95% noncondensingAmbient Operating Temperature-30 to 40° C (-22 to 104° F)Built-In Switch(1) PoE+ input and (1) PoE outputChannel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)Client Device IsolationTrueCoverage Area115 m² (1,250 ft²)Custom Branding Landing PageTrueDynamic RADIUS-assigned VLANTrueEnclosure MaterialPolycarbonate, aluminum alloyExternal Portal Server SupportTrueGuest Network IsolationTrueManagementEthernetMax. BSSIDs8 per RadioMobile AppiOS™ version 10.20.2 and laterAndroid™ version 10.21.7 and laterMount MaterialAluminum alloyMountingWall(Metal Wall Mount Included)Passpoint (Hotspot 2.0)TruePassword AuthenticationTruePayment-Based AuthenticationTruePrivate Pre-Shared Key (PPSK)TrueRADIUS over TLS (RadSec)TrueSpatial Streams4 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
