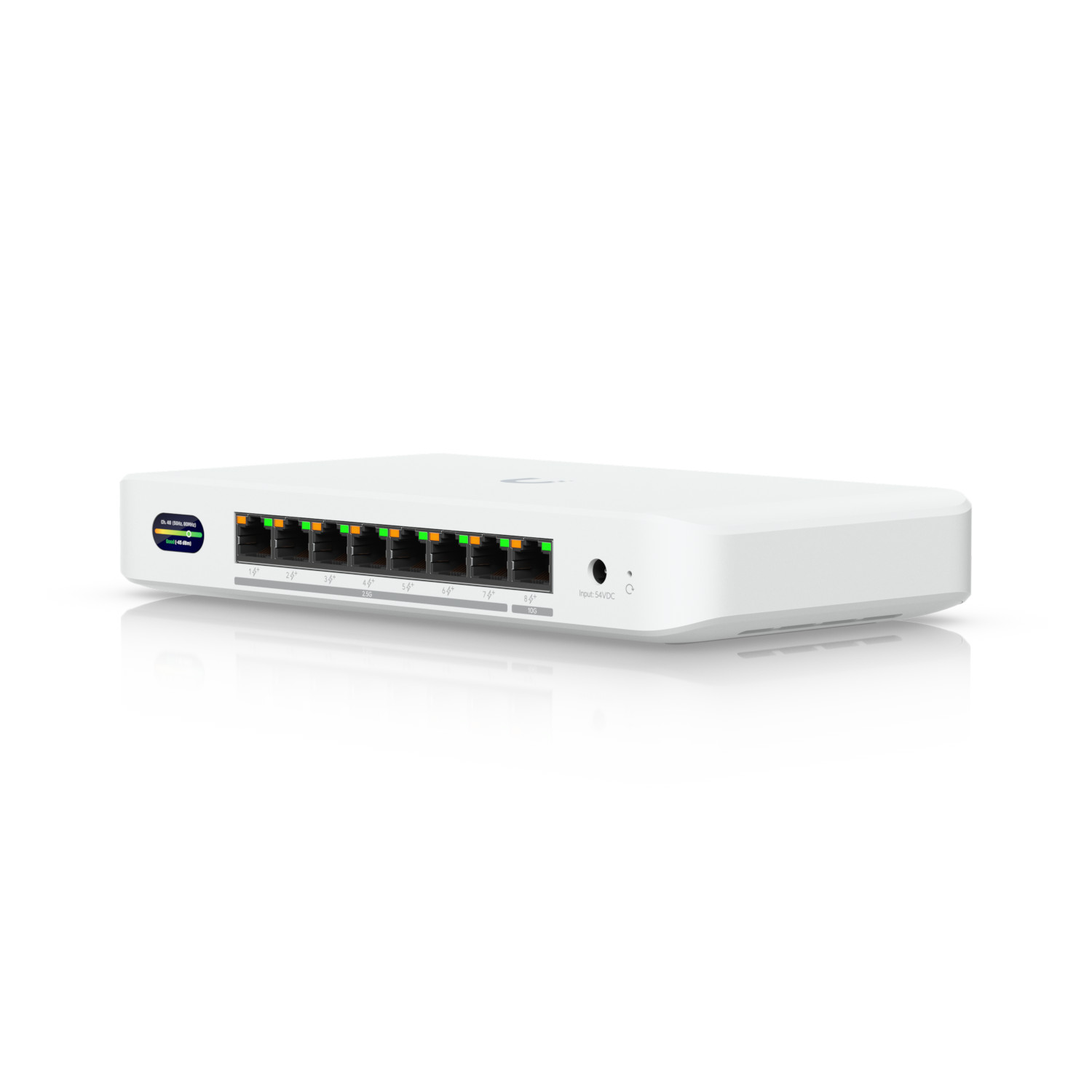

Device Bridge Switch Model: UDB-SWITCH Product Description

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi.

Technical Specifications WiFi StandardWiFi 7Spatial Streams4Networking Interface(1) 10 GbE RJ45 port(7) 2.5 GbE RJ45 portsTotal PoE Availability60W AC adapter input: 35W210W AC adapter input: 185WPower Supply54V DC/1.1A (Adapter included)Power MethodDC jack (54V DC/1.1A)Max. Power Consumption25W (Excluding PoE output)Dimensions212.9 x 113 x 32.5 mm(8.4 x 4.4 x 1.3")WeightDevice: 548 g (1.21 lb)With mount: 563 g (1.24 lb)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature-30 to 40° C (-22 to 104° F)Ambient Operating Humidity5 to 95% noncondensing5 GHz26 dBm6 GHz23 dBm802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)Antennas(1) InternalButton(1) Factory resetChannel Bandwidth20/40/80/160/240/320 MHzEnclosure MaterialPolycarbonateLCM Display0.96" status displayManagementEthernetWiFiMax. Conducted TX Power26 dBm (Combined)Max. PoE Wattage per Port30WMount MaterialPolycarbonateMounting LocationsDesktop, wallOperating FrequencyWorldwide:5150—5875 MHz5945—7125 MHzPoE Interface(8) PoE+ portsSupported Voltage Range42.5–57V DCUniFi NetworkVersion 10.0.156 or later.Wireless SecurityWPA3 SAE (Always On) 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
