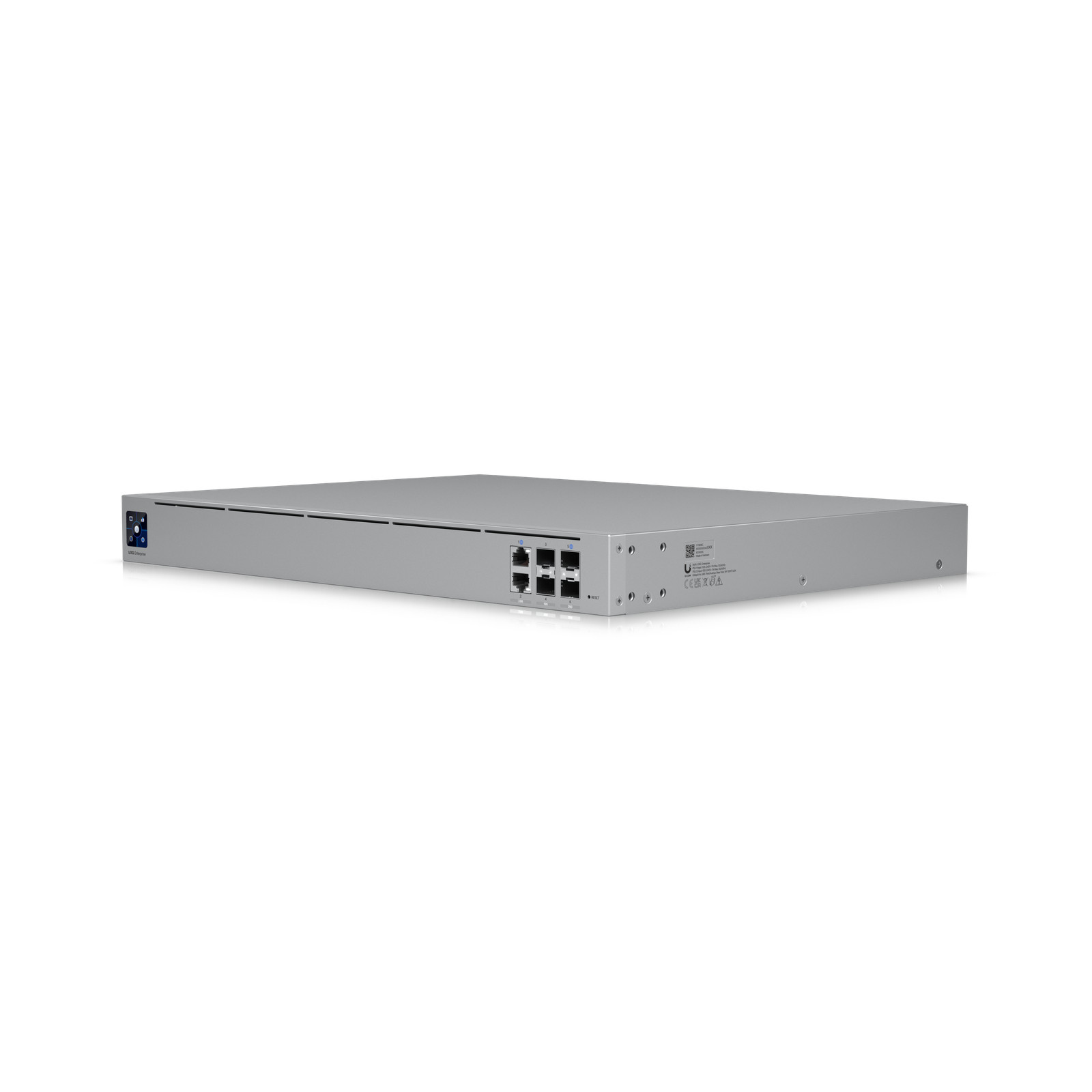

Gateway Enterprise Model: UXG-ENTERPRISE Product Description
25G independent gateway with multi-WAN load balancing, 12.5 Gbps IPS routing, and redundant hot-swap PSUs.
Key Features
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.3.32 and later
- Shadow Mode High Availability with automatic failover provides uninterrupted connectivity (VRRP)
- 12.5 Gbps routing with IDS/IPS
- License-free, real-time inspection of encrypted packets with NeXT AI Inspection* (SSL/TLS decryption)
- (2) 25G SFP28,** (2) 10G SFP+**, and (2) 2.5 GbE RJ45 ports (two interfaces remappable to WAN)
- (2) included hot-swap PSUs for power redundancy
- 1.3" touchscreen
Technical Specifications IDS/IPS12.5 GbpsIDS/IPS Throughput12.5 GbpsProcessor18-core ARM® v8.2 at 2 GHzSystem Memory16 GB2.5 GbE RJ452(2.5G/1G/100M/10M)10G SFP+2(10G/1G)25G SFP282(25G/10G/1G)Power Supply(2) Hot-swappable 150W CRPSPower MethodUniversal AC input, 100–240V AC, 7A Max., 50/60 HzMax. Power Consumption82WForm FactorRack mount (1U)Dimensions442.4 x 43.7 x 325 mm(17.4 x 1.7 x 12.8")Weight6.5 kg (14.3 lb)NDAA CompliantYesCertificationsCE, FCC, ICAmbient Operating Temperature0 to 40° C (32 to 104° F)Ambient Operating Humidity5 to 95% noncondensingButton(1) Factory resetConcurrent Sessions1 MillionDefault WAN Ports(1) 25G SFP28(1) 2.5 GbE RJ45ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kVEnclosure MaterialAluminium CNC, SGCC steelHeat Dissipation280 BTU/hrIDS/IPS Signatures95,000+ with CyberSecure EnterpriseIPsec580 MbpsIdentity Endpoint One-Click VPN1.2 GbpsL2TP280 MbpsLACP Port AggregationYesLCM Display1.3" WAN Port Count5New Sessions / Second71,000OpenVPN180 MbpsRedundancyShadow Mode (VRRP) Gateway Failover(2) Hot-Swappable PSUsSSL/TLS Inspection Concurrent Sessions10,000Site Magic1.1 GbpsSupported Voltage Range100–240V ACTeleport1.2 GbpsUniFi NetworkVersion 8.3.32 and laterWireGuard980 Mbps 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
