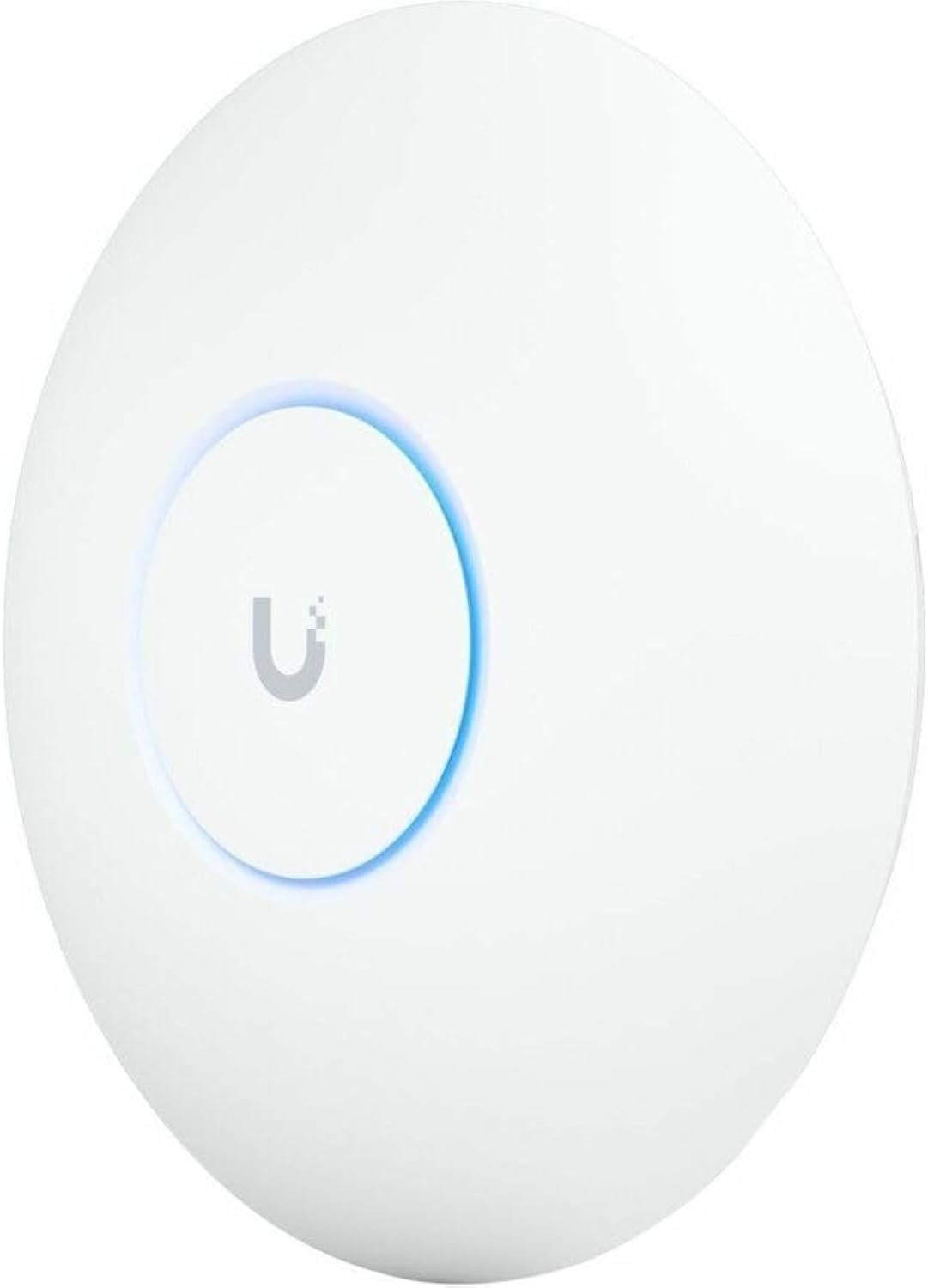

Experience fast and reliable wireless connections by expanding your network with theUniFi U7 Pro Tri-Band Wi-Fi 7 Access PointfromUbiquiti Networks. Supporting over 300 concurrent connections, this Wi-Fi 7 (802.11be) access point mounts onto a wall or ceiling to provide up to 9335 Mb/s transfer speeds over the 2.4 GHz, 5 GHz, and 6 GHz bands. You can also isolate guest traffic to ensure optimal security and speed.

Connect the 2.5G Ethernet port to a PoE+ compatible switch to transfer power and data over a single cable. Use the UniFi Network application to set up, configure, and manage your device. Your wireless connections are protected by WPA3 encryption.

UniFi Network Application Features
Wi-FiWi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)Throughput9335 Mb/s Total
6 GHz: 5765 Mb/s
5 GHz: 2882 Mb/s
2.4 GHz: 688 Mb/sInputs/Outputs1x RJ45 2.5 GbE PoE+ (30 W, 802.3at)

Manage networks from a single interface

Intuitive configuration options and robust device control and monitoring

Remote device firmware updates

Manage network users and guests

Personalize the design, architecture, and privacy of guest hotspots

WirelessWi-FiWi-Fi 7 (802.11be); Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2)Antenna Gain4 to 5.8 dBiTransmit Power22 to 26 dBmAntenna Mb/s Total
6 GHz: 5765 Mb/s
5 GHz: 2882 Mb/s
2.4 GHz: 688 Mb/sInterfaceInputs/Outputs1x RJ45 2.5 GbE PoE+ (30 W, 802.3at)USB Sharing SupportNoSecurityGuest Network SupportYesWireless SecurityWPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-PSKLock SlotNoManagementOperation ModesAccess PointSupported Clients300Max SSIDs Supported24Mobile App CompatibleYes: Android & iOS
App Name: UniFiHardwareSupported IEEE Standards802.11a, 802.11ac, 802.11ax, 802.11b, 802.11be, 802.11g, 802.11n, 802.1qElectricalInput Power44 to 57 VDCPower Consumption≤21 WGeneralEnvironmental ResistanceNoCertificationsCE, FCC, ICOperating Conditions-22 to 140°F / -30 to 60°C at 5 to 95% HumidityMount OptionsWall, CeilingDimensions8.1 x 8.1 x 1.8" / 206 x 206 x 46mmWeight1.5lb / 680gPackaging InfoPackage Weight2.835 lbBox Dimensions (LxWxH)9.7 x 9.7 x 3.8"
