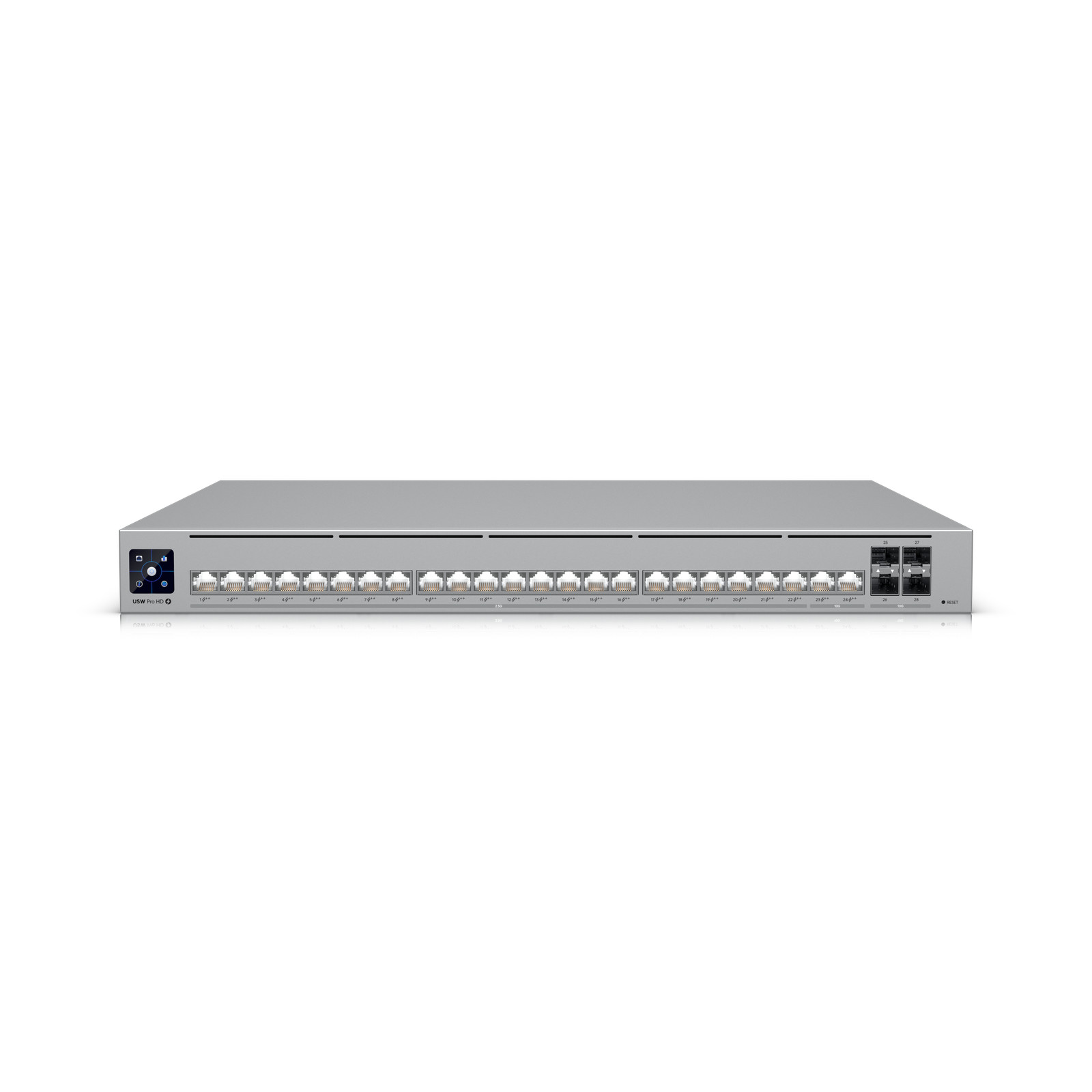

Switch Pro HD 24 PoE Model: USW-PRO-HD-24-POE Product Description
Key Features
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports
- (4) 10G SFP+ ports
- DC power backup ready**
- 600W total PoE availability
Technical Specifications Power SupplyAC/DC, internal, 660WPower Method(1) Universal input, 100—240V AC, 50/60 Hz(1) USP RPS DC inputMax. Power Consumption60W (Excluding PoE Output)660W (Including PoE Output)PoE15.4WDimensions442 x 400 x 44 mm(17.4 x 15.7 x 1.7")WeightWithout mounting brackets: 6.2 kg (13.7 lb)With mounting brackets: 6.3 kg (13.9 lb)CertificationsCE, FCC, IC, Anatel: 03853-25-0835610 GbE RJ452 (All PoE++)(10G/5G/2.5G/1G/100M)10G SFP+4(10G/1G)2.5 GbE RJ4522 (All PoE++)(2.5G/1G/100M/10M)ARP Entries12,000Advanced IGMP Configuration (Querier, Fast Leave, Router Port)TrueAmbient Operating Humidity10 to 90% noncondensingAmbient Operating Temperature-5 to 40° C (23 to 104° F)DHCP Server (Local Networks)TrueDHCP Snooping & GuardingTrueEnclosure MaterialSGCC steelForm FactorRack mount (1U)Forwarding Rate171 MppsIP-Based ACLs & Network IsolationTrueIPv4128IPv4 Routes12,000Inter-VLAN Routing (Local Networks)TrueLACP Port AggregationTrueLCM Display1.3" touchscreenMAC128MAC Address BlockingTrueMAC Address Table Size32,000MAC-Based ACLs & Device IsolationTrueMAC-Based Port RestrictionTrueManagementEthernetARMax. PoE OutputUp to PoE++Mount MaterialSGCC steelMulticast & Broadcast Rate LimitingTruePacket Buffer Size2 MBPoE+30WPoE++64W 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
