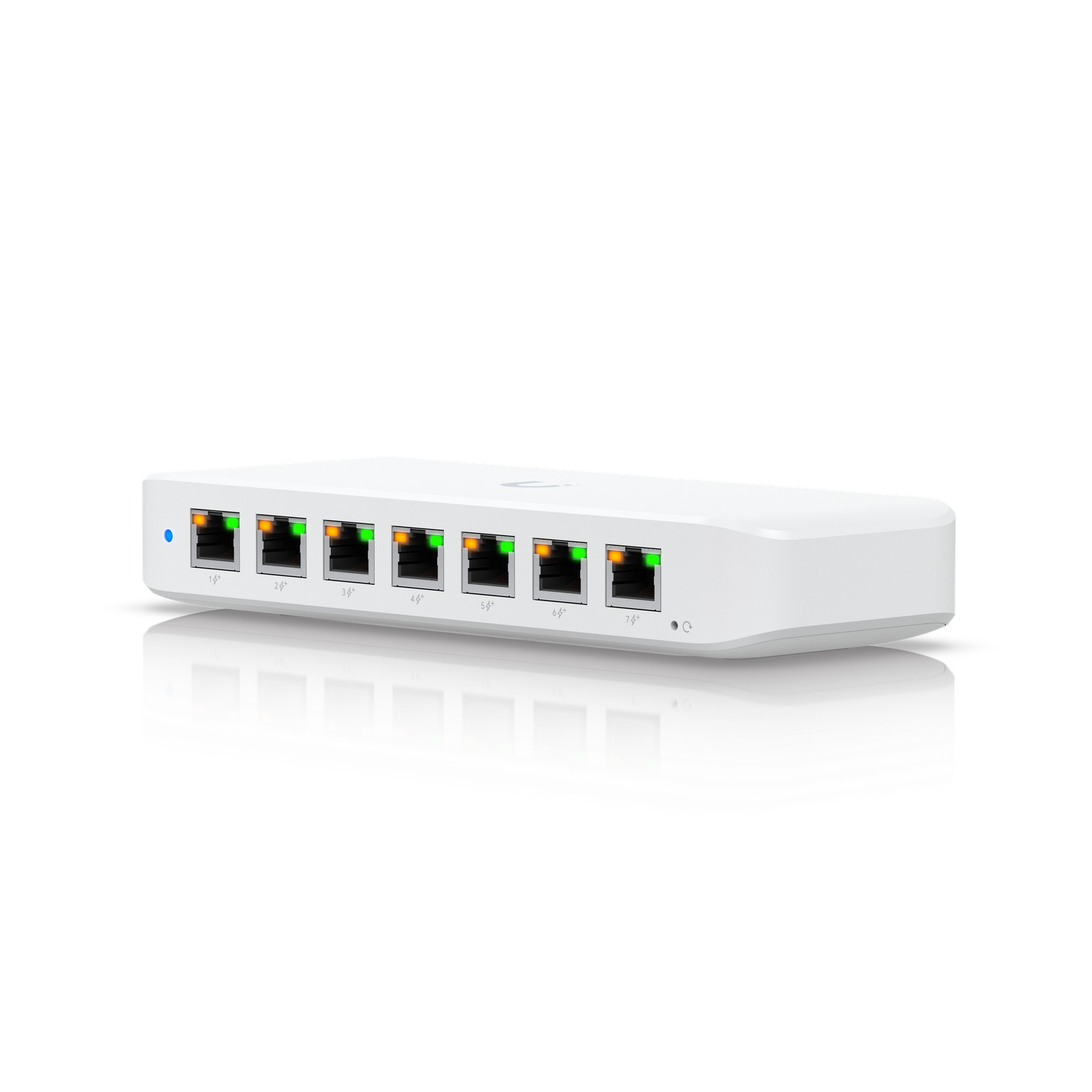

Switch Ultra Model: USW-ULTRA Product Description

A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

Key Features

• (7) GbE PoE+ output ports
• (1) GbE PoE++ input port*

Technical Specifications Switching Capacity16 GbpsTotal Non-Blocking Throughput8 GbpsForwarding Rate12 Mpps1 GbE RJ458 (7 PoE+; 1 PoE++ input)(1G/100M/10M)Total PoE AvailabilityPoE++ input: 42WPoE+ input: 16W60W PoE adapter input: 42W60W AC adapter input: 52W210W AC adapter input: 202WMax. PoE OutputUp to PoE+Power Method(1) AC/DC adapter (Excluded)(1) PoE++Max. Power Consumption9W (Excluding PoE Output) with PoE input8W (Excluding PoE Output) with adapter input210W (Including PoE Output) with 210W AC adapter inputSupported VLANs256MAC Address Table Size4,000Form FactorCompact desktop, wall, magneticDimensions203 x 76 x 33 mm(8 x 3 x 1.3")WeightDevice: 320 g (11.3 oz)Wall mount: 45 g (1.6 oz)NDAA CompliantYesCertificationsCE, FCC, IC, Anatel: 06367-24-08356Ambient Operating TemperaturePoE++ input: -30 to 60° C (-22 to 140° F)60W AC adapter input: -20 to 45° C (-4 to 113° F)210W AC adapter input: -20 to 60° C (-4 to 140° F)Ambient Operating Humidity10 to 90% noncondensingEnclosure MaterialPolycarbonateFlow ControlYesHeat Dissipation31 BTU/hr (Excluding PoE Output)Jumbo FramesYesLoop ProtectionYesManagementEthernetMount MaterialPolycarbonatePoE+30WPort MirroringYesPower Input MethodDC InputPoESTP & RSTPYesStorm ControlYesSupported Voltage Range50–57V DC/PoEUniFi NetworkVersion 8.0.28 and later 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
