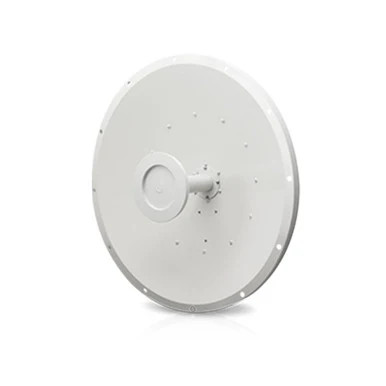

Ubiquiti RD-5G30 airMAX RocketDish 5GHz 30dBi 2x2 PtP Bridge Dish Antenna airMAX 2x2 directional dish antenna for Point-to-Point bridging and network backhaul applications, operating from 4.9 to 5.90 GHz with up to 30.25 dBi gain. 𝐓𝐘𝐏𝐄 / (Networking) 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• airMAX 2x2 Point-to-Point bridge dish antenna
• 4.9–5.90 GHz frequency range
• 28.0–30.25 dBi gain
• Dual-linear polarization
• 35 dB minimum cross-polarization isolation
• 5° horizontal and vertical beamwidth
• Designed for pairing with a Rocket M BaseStation
• Wind survivability rated to 120 mph Manufacturer: Ubiquiti
• Part Number: RD-5G30
• Frequency Range: 4.9–5.90 GHz
• Gain: 28.0–30.25 dBi
• Polarization: Dual Linear
• Cross-Polarization Isolation: 35 dB minimum
• Maximum VSWR: 1.4:1
• HPOL Beamwidth (3 dB): 5°
• VPOL Beamwidth (3 dB): 5°
• F/B Ratio: -34 dB
• ETSI Specification: EN 302 326 DN2
• Diameter: 648 mm (25.5")
• Weight: 9.8 kg (21.6 lb)
• Wind Survivability: 120 mph 𝐔𝐒𝐄 / Point-to-Point (PtP) wireless bridging
• Network backhaul links
• Pairing with a compatible Rocket M BaseStation
