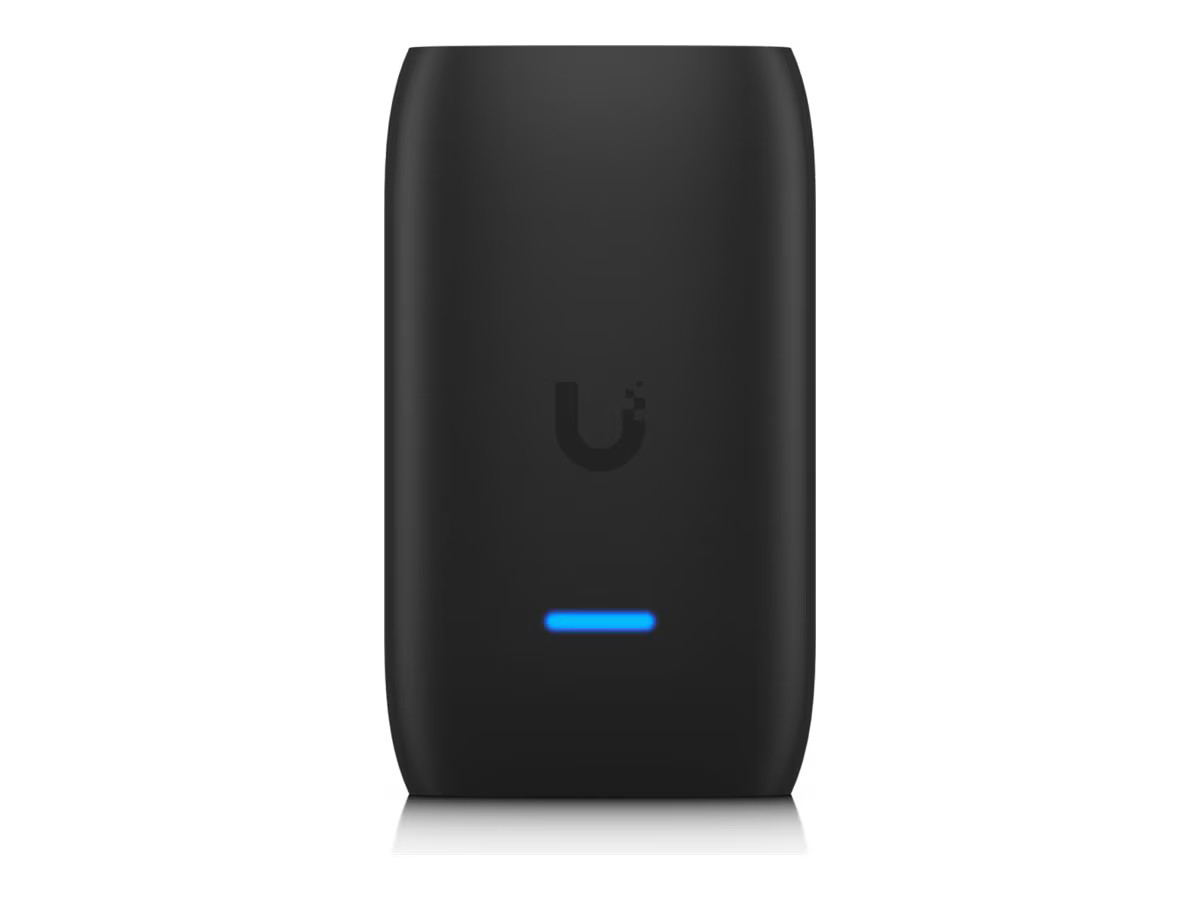

Ubiquiti UniFi Connect Display Cast Lite UC-Cast-Lite-US 1080p WiFi 6 Player
UPC: 810084698310
MPN: UC-Cast-Lite-US
Brand: Ubiquiti
Type: Digital Signage Player
Model: UniFi Connect Display Cast Lite
Color: Black
Maximum Wireless Data Rate: Wi-Fi 6
Number of LAN Ports: 0
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- UC-Cast-Lite
- UC-Cast-Lite-US
- UC-Cast-Lite-EU
- UC-Cast-Lite-UK
- UC-Cast-Lite-AU
- Display Cast Lite
- UniFi Display Cast Lite
- UniFi Connect Cast Lite
- 810084698310
- UC-Cast-Pro
- UC-Cast-Pro-US
- Display Cast Pro
- UC-Cast
- UC-Cast-US
- UC-Display
- UC-Display21
Deployment & Controller Requirements
This compact digital signage player is designed specifically for the UniFi Connect ecosystem to stream media to HDMI displays. It is managed centrally through the UniFi Connect application (v3.17.0 and later for Web, v2.26.0 and later for iOS/Android). Please note that it does not support UniFi Protect camera streaming; users must utilize the UniFi Protect Viewport for camera feeds.
Power & Interface Specifications
The UC-Cast-Lite-US is powered via a USB-C 5V DC, 1A connection with a highly efficient maximum power consumption of just 5W. The device features a single HDMI port for video output, supporting 480p, 720p, and 1080p resolutions at up to 60 FPS. It includes HDMI CEC functionality to automatically power the connected display on or off. A USB-C power adapter and wall/pole mounting hardware are included (HDMI cable is not included).
Wireless Capabilities & RF Performance
Equipped with modern Wi-Fi 6 (802.11ax) technology, this player operates on dual-band 2.4 GHz and 5 GHz frequencies to ensure stable, high-quality 1080p media playback. It supports 2.4G bandwidths of 20/40 MHz and 5G bandwidths of 20/40/80 MHz. The inclusion of UniFi WiFi Auto-Link simplifies wireless adoption and deployment across your enterprise network.
