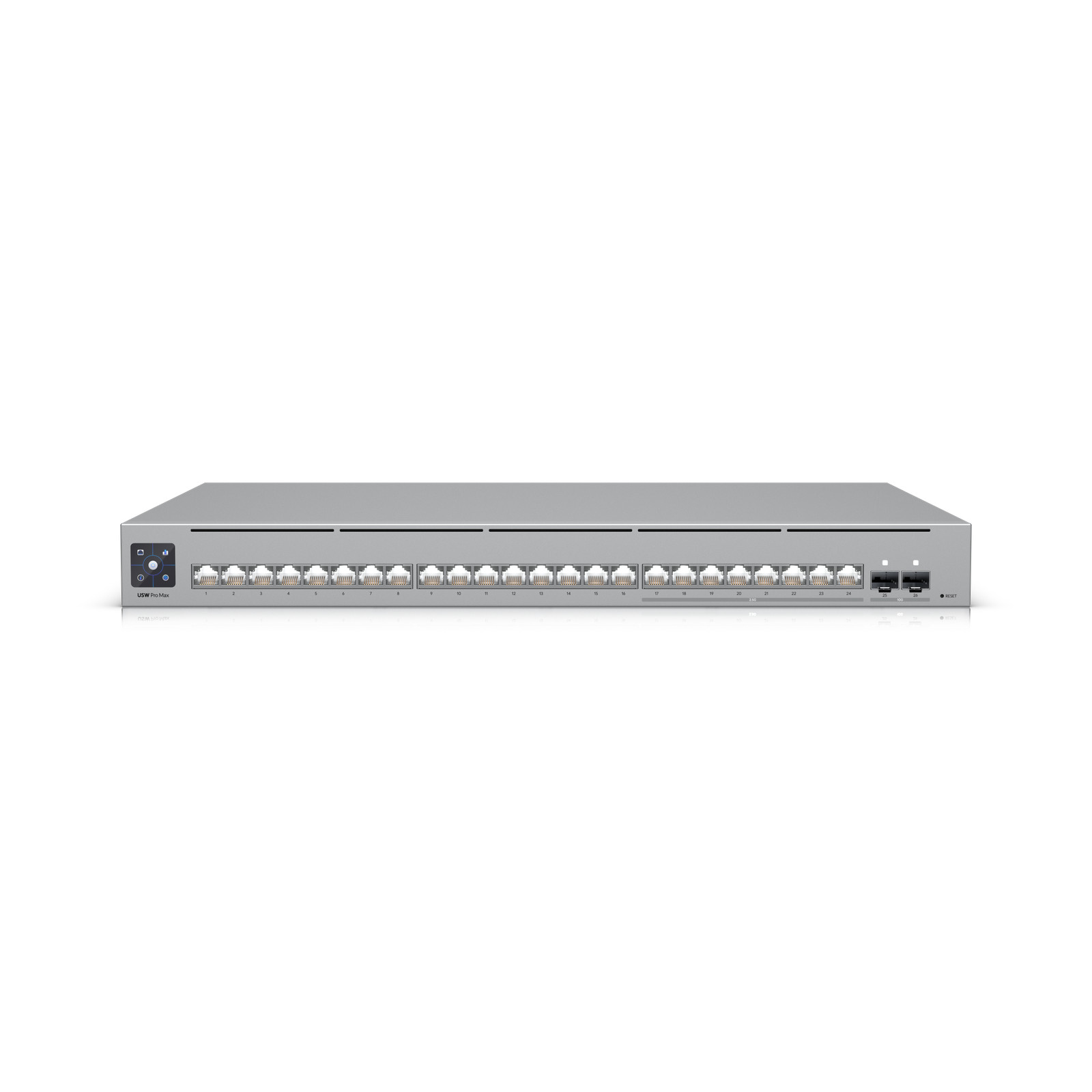

Ubiquiti UniFi Switch Pro Max 24 USW-Pro-Max-24 24-Port 2.5GbE 10G SFP+ Layer 3
UPC: 810084692622
MPN: USW-Pro-Max-24
Brand: Ubiquiti
Type: Ethernet Switch
Model: UniFi Switch Pro Max 24
Number of LAN Ports: 24
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Network Management Type: Fully Managed
Form Factor: Rack Mountable
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Product Line: UniFi
Network Connectivity: Wired-Ethernet (RJ-45)
Network Type: Ethernet
Country of Origin: China
Compatible Part Number 1: USW-Pro-Max-24
Compatible Part Number 2: UniFi Pro Max 24
Compatible Part Number 3: UniFi Switch Pro Max 24
Compatible Part Number 4: USW-Pro-Max-24-US
Compatible Part Number 5: USW-Pro-Max-24-EU
Compatible Part Number 6: USW-Pro-Max-24-UK
Compatible Part Number 7: USW-Pro-Max-24-AU
Compatible Part Number 8: USW-Pro-Max-24-JP
Compatible Part Number 9: 810084692622
Compatible Part Number 10: USW-Pro-Max-24-PoE
Compatible Part Number 11: USW-Pro-24
Compatible Part Number 12: USW-Pro-Max-48
Compatible Part Number 13: USW-Enterprise-24-PoE
Compatible Part Number 14: USW-24
Port Configuration & PoE Capabilities
The Ubiquiti UniFi Pro Max 24 (USW-Pro-Max-24) delivers exceptional multi-gigabit connectivity tailored for high-throughput enterprise and home lab environments. This non-PoE switch features a versatile 24-port RJ45 layout alongside high-speed fiber uplinks, maximizing bandwidth for demanding network applications.
- Multi-Gigabit RJ45 Ports: Equipped with eight 2.5 GbE RJ45 ports and sixteen 1 GbE RJ45 ports for flexible, high-speed device connectivity.
- High-Speed Uplinks: Includes two 10G SFP+ ports for high-bandwidth fiber uplinks to core networks, servers, or NAS devices.
- Etherlighting Technology: Features innovative color-coded port illumination for instant visual identification of port speed, VLAN assignment, and physical location.
Management, OS & Layer Features
As a fully managed Layer 3 switch, the USW-Pro-Max-24 provides advanced routing and traffic management capabilities. It is seamlessly integrated into the UniFi ecosystem, requiring the UniFi Network Application for centralized configuration, monitoring, and deployment without the need for expensive enterprise licensing subscriptions.
- Layer 3 Routing: Supports Inter-VLAN routing, static routing, and DHCP Server/Relay for optimized network traffic flow and reduced broadcast domains.
- Advanced Layer 2 Features: Includes LACP Port Aggregation, STP/RSTP, IGMP Snooping, Port Isolation, Port Mirroring, and 802.1X Control.
- High-Performance Switching: Delivers a 108 Gbps switching capacity to handle heavy network loads without bottlenecks.
Hardware Configuration & Included Accessories
Built for enterprise reliability, the USW-Pro-Max-24 is housed in a durable SGCC steel enclosure designed for standard 1U rackmount installations. It features a 1.3 inch LCM color touchscreen for quick local status monitoring and diagnostics. The switch is powered by an internal AC/DC power supply and includes a USP-RPS DC input for redundant power backup, ensuring maximum uptime for critical network infrastructure.
