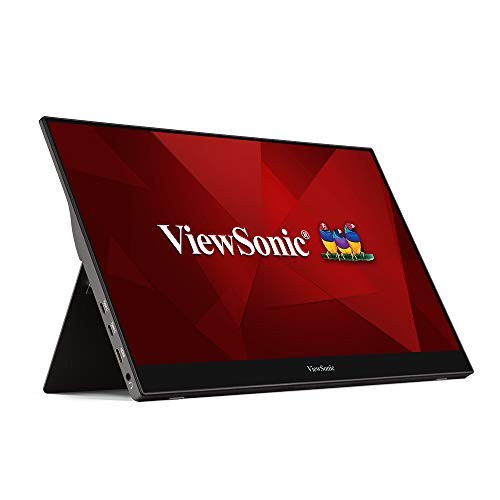

ViewSonic TD1655 15.6" Portable 1080p IPS Touch Monitor ViewSonic TD1655 15.6" Portable 1080p IPS Touch Monitor
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: TD1655 Touchscreen LCD Monitor USB type-C to type-C Cable USB type-C to type-A Cable Mini HDMI Cable Power Adapter Passive Touch Pen Quick Start Guide
Certifications & Standards: cTUVus
Environmental Certification: Electronic Product Environmental Assessment Tool (EPEAT)
Environmentally Friendly: Yes
Energy Star: Yes
Energy Efficiency Certification: ENERGY STAR 8.0
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
The ViewSonic TD1655 is a portable 15.6 touch display designed for productivity on the go. Built for business travelers, remote workers, and digital nomads, the TD1655 can serve as a complementary touchscreen to a laptop or tablet for boosted productivity. With an anti-glare screen and Full HD 1080p resolution, this touch display delivers a crystal-clear viewing experience so users can see more and do more for a more efficient workflow. In addition, with a 10-point projective capacitive touchscreen and included stylus pen, the TD1655 delivers a smooth and natural writing experience and streamlined navigation with every tap, pinch, and swipe. A USB Type-C port enables quick and easy transmission of video, audio, and data. A second USB Type-C port also delivers up to 60W of two-way power: a connected laptop can power the TD1655, OR the TD1655 can power a connected laptop via a USB-C power bank or AC adapter and outlet. Measuring less than an inch thick and weighing only two pounds, the ultra-slim TD1655 perfectly fits into any bag, briefcase, or backpack so you can work wherever life takes you.
ULTRA-PORTABLE DESIGN
Measuring a mere 0.6" thick and weighing about 2 pounds, this compact monitor can be easily packed and transported wherever you go.
ADVANCED TOUCH CAPABILITIES AND SCREEN PERFORMANCE
An advanced in-cell capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.
2-WAY POWER WITH USB TYPE-C
Dual USB Type-C ports deliver fast data, audio, and video over a single cable. What's more, these USB Type-C ports also deliver two-way power: a connected laptop can power the monitor, or the monitor can power a connected laptop via USB-C power bank or AC adapter and outlet.DISPLAY
DISPLAY SIZE (IN.)
15.6
VIEWABLE AREA (IN.)
15.6
PANEL TYPE
IPS
RESOLUTION
1920 x 1080
RESOLUTION TYPE
HD (1920x1080)
STATIC CONTRAST RATIO
800:1
DYNAMIC CONTRAST RATIO
50,000,000:1
LIGHT SOURCE
LED
BRIGHTNESS
250 cd/m2
COLORS
262K
COLOR SPACE SUPPORT
6 bit
ASPECT RATIO
16:9
RESPONSE TIME (TYPICAL GTG)
14ms
RESPONSE TIME (GTG W/OD)
6.5ms
VIEWING ANGLES
178o horizontal, 178o vertical
BACKLIGHT LIFE (HOURS)
15,000
PANEL SURFACE
Glossy, Hardness (6H)COMPATIBILITY
PC RESOLUTION (MAX)
1920 X 1080
MAC RESOLUTION (MAX)
1920 X 1080CONNECTOR
USB 3.2 GEN 1 TYPE C
2
MINI HDMI
1TOUCH
TOUCH TECHNOLOGY
Projective Capacitive
TOUCH POINTS
10-Point TouchAUDIO
INTERNAL SPEAKERS
0.8W (x2)POWER
ECO MODE (CONSERVE)
6.0W
ECO MODE (OPTIMIZED)
6.9W
CONSUMPTION (TYPICAL)
8.6W
CONSUMPTION (MAX)
10.5W
VOLTAGE
AC 100-240V (universal), 50-60Hz
STAND-BY
0.3W
POWER SUPPLY
Wall type (detachable type-C)CONTROLS
PHYSICAL CONTROLS
1, 2, 3, 4, 5 (Power)
ON SCREEN DISPLAY
Image Adjust, Contrast, Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory RecallOPERATING CONDITIONS
TEMPERATURE
32-104o F (0 - 40o C)
HUMIDITY (NON-CONDENSING)
20-90%VIDEO SIGNAL
FREQUENCY HORIZONTAL
15 to 82KHz
FREQUENCY VERTICAL
50 to 75HzVIDEO INPUT
DIGITAL SYNC
TMDS for miniHDMI (v1.4), Micro-Packet for USB-type CERGONOMICS
TILT (FORWARD/BACK)
0o / 60oGENERAL
REGULATIONS
cTUVus, FCC-B, ICES003, Energy Star 8.0, EPEAT, CEC, MX-CoC, Mexico Energy
PACKAGE CONTENTS
TD1655 Display, USB type-C to type-C cable, USB type-C to type-A cable, mini HDMI cable, Power Adapter, Passive Touch Pen, Quick Start Guide
RECYCLE/DISPOSAL
Please dispose of in accordance with local, state or federal laws.Item Dimension (L inchxW inchxH inch)
14 x 9 x 1
Weight
2.10 LB
Warranty Information
3-year LimitedPackage Contents:
- TD1655 Touchscreen LCD Monitor
- USB type-C to type-C Cable
- USB type-C to type-A Cable
- Mini HDMI Cable
- Power Adapter
- Passive Touch Pen
- Quick Start Guide
SpecificationPower DescriptionOperating Power Consumption10.50 WPhysical CharacteristicsWeight (Approximate)2.20 lbProduct ColorBlackHeight8.8"Color Warranty3 YearInterfaces/PortsUSB Type-CYesVGAYesNumber of USB Ports2Number of HDMI Inputs1USBYesHDMIYesNumber of USB Type-C 3.2 Gen 1 Ports2Interface
- Wall Mountable
- Panel Mount
Horizontal Frequency15 kHz to 82 kHzScreen ModeFull HDFeatures
- Eco Mode
- Anti-glare
- Ultra Slim
- Wide Viewing Angle
- Landscape/Portrait Viewable
Vertical Frequency50 Hz to 75 HzHorizontal Viewing Angle178°Backlight TechnologyLEDAdjustable StandNoScreen Size InformationTouchscreen TypeProjected CapacitiveMulti-touch ScreenYes Shipping
