Vintage ATI ALL IN WONDER Radeon 9600 PRO AGP GPU W/ Output Breakout Cables
Price: US $100.00

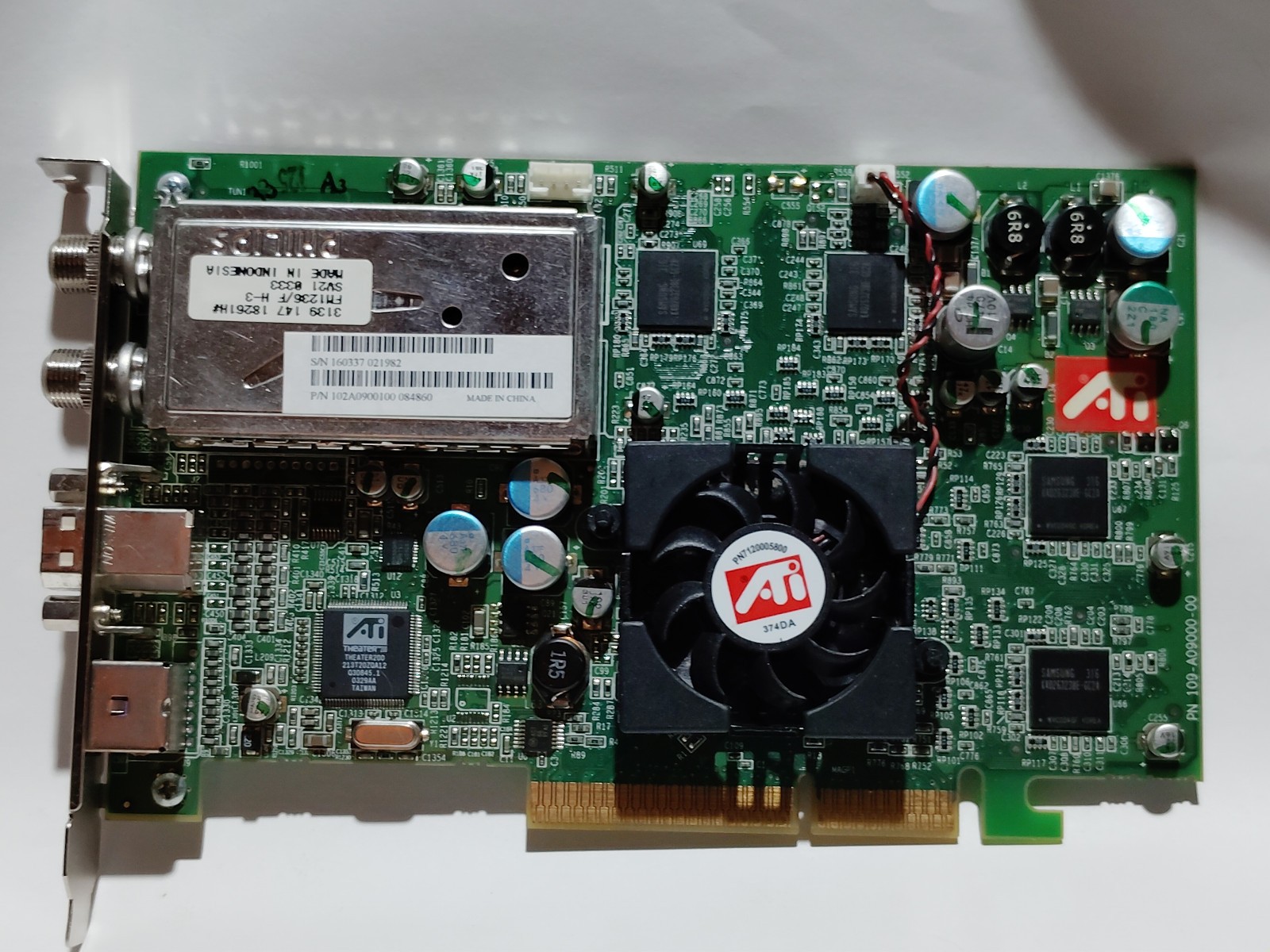

ATI All-In-Wonder 9600 PRO 128MB AGP Graphics Card w/ Original Output Cable Bundle**Up for sale is a classic ATI All-In-Wonder 9600 PRO AGP graphics card, highly sought after for retro gaming setups (Windows 98 / Windows XP) and vintage video capture rigs. This specific card is highly desirable because it features the originalpremium **Samsung "316" date-coded memory chips**, known by retro enthusiasts for superior stability, cooling, and performance overhead compared to lower-tier memory variants.Original proprietary multi-out breakout/output cable bundle (Crucial for VIVO/video out functionality).This will be great for Retro/Vintage Gaming or for a Retro media entertainment system. Was a working card but the motherboard had a failure and I do not have another board with a AGP slot to test.*packaging was stored in a potentially smoking environment and may have cigarette odor. Will try my best to air out or not use if possible*Core Specifications
Graphics Processor: RV350 (.13-micron process)
GPU Clock Speed: ~398 MHz
Video Memory: 128 MB DDR
Memory Bus Width: 128-bit
Memory Clock Speed: ~324 MHz (648 MHz effective)
Bus Interface: AGP 8x (backward compatible with 4x/2x)
Multimedia & TV Tuner: Integrated TV tuner for watching and recording live television, plus FM radio capabilities (via Theater 200 companion chip).
API Support: Full hardware support for Microsoft DirectX 9.0 (SmartShader 2.1) and OpenGL.
Connections & Breakout Box: Included a specialized input/output purple breakout box and dongle for composite video, S-Video, and stereo audio hookups.
Display Outputs:
2 VGA Connectors: These allow you to hook up two analog monitors to run a dual-screen desktop setup.
1 S-Video (Black, round multi-pin): Outputs standard-definition video to a TV or a high-end VCR setup.
1 Yellow RCA: This is your standard Composite Video Out, used to send your PC's display to an older analog TV or VCR.
1 Orange RCA: This is a S/PDIF Digital Audio Out jack. It allows you to output raw, digital Dolby Digital/DTS surround sound directly from your computer into a home theater receiver.
1 3.5mm Jack (Headphone style): This is your Audio Loopback plug. You plug this directly into your computer's dedicated sound card "Line-In" port so that the audio captured by the TV tuner can actually be heard and recorded by your PC.
