WAVLINK Outdoor WiFi6/7 Extender AX3000 BE5100 AP Repeater for Yard Camera Farm

Price: US $199.99

WAVLINK Outdoor WiFi 7 / WiFi 6 / AC1200 — Product Comparison & Details

WAVLINK Outdoor WiFi Series

WiFi 7 · WiFi 6 · WiFi 5 AC1200 Outdoor Access Points

Long-range, weatherproof, PoE-powered WiFi engineered for harsh outdoor environments — coastal areas, industrial sites, mountainous terrain, farms, orchards, campuses, hospitals and outdoor events.

Product Comparison

Choose by wireless generation, antenna type and power option. All models support PoE for single-cable outdoor installation.

WiFi 7 & WiFi 6 Outdoor ModelsModelWi-Fi StandardMax SpeedAntennasPoE & EthernetOutdoor ProtectionWN573HBE2BE5100Wi-Fi 7
IEEE 802.11be/ax/ac/a/n/g/bUp to 5100Mbps
2.4GHz 688Mbps + 5GHz 4323Mbps4 x 8dBi + 1 x 5dBi high-gain antennas1 x 2.5G WAN/LAN
802.3at/af Active PoE + Passive PoE (DC 54V / DC 48V)IP67 waterproof & dustproof
15KV ESD
4KV lightning protectionWN573HP3AX3000 · 12dBiWi-Fi 6
IEEE 802.11ax/ac/a/n/g/bUp to 3000Mbps
2.4GHz 573Mbps + 5GHz 2402Mbps4 x 12dBi directional antennas1 x Gigabit WAN/LAN
802.3af/at Active PoE + Passive PoEIP67 weatherproof enclosure
Lightning protectionWN573HX3AX3000 · 8dBiWi-Fi 6
IEEE 802.11ax/ac/a/n/g/bUp to 3000Mbps
2.4GHz 573Mbps + 5GHz 2402Mbps4 x 8dBi omnidirectional fiberglass tube antennas1 x Gigabit WAN/LAN
802.3af/at Active PoE + Passive PoEIP67 waterproof
15kV ESD
6kV lightning protectionWN588HX3AX3000 · 7dBiWi-Fi 6
IEEE 802.11ax/ac/a/n/g/bUp to 3000Mbps
2.4GHz 573Mbps + 5GHz 2402Mbps6 x 7dBi omnidirectional antennas
(3 x 7dBi 5GHz + 3 x 7dBi 2.4GHz)1 x Gigabit WAN/LAN
802.3af/at 48V PoE with included PoE adapter; 802.3 AT/AF Active PoE + Passive PoEIP67 waterproof gradeAC1200 Outdoor ModelsModelWi-Fi StandardMax SpeedAntennasPoE & EthernetOutdoor ProtectionWN572HP3AC1200 · Dual GigabitWi-Fi 5
IEEE 802.11ac/a/b/g/nUp to 1200Mbps
2.4GHz 300Mbps + 5.8GHz 867Mbps4 x 7dBi detachable omnidirectional antennas
(2 x 2.4G + 2 x 5G)1 x Gigabit LAN + 1 x Gigabit WAN
Passive PoE (DC 24V)IP65 weatherproof & heat-resistant case
15KV ESD
4KV lightning protectionWN588HA2AERIAL HD8S · NEWWi-Fi 5
IEEE 802.11ac/a/n/g/bUp to 1200Mbps
2.4GHz 300Mbps + 5GHz 867Mbps4 x 7dBi omnidirectional antennas (RP-SMA)1 x Gigabit WAN/LAN
Passive PoE (DC 54V/0.3A) + Active PoE (DC 48V)IP67 weatherproof casing with grounding terminal
15KV ESD
6KV lightning protectionRecommended Buying Scenarios

Match the model to your deployment environment.

WN573HBE2 — WiFi 7 / BE5100

Best for maximum speed and near-zero latency: 4K streaming, competitive gaming and high-density deployments such as hospitals and campuses. Passive PoE makes it equally suited to rural farms, orchards and music festivals.

WN573HP3 — AX3000 with 12dBi Directional Antennas

Built for long-distance wireless data transmission of over 3km (paired PtP or PtMP, tested in a barrier-free field). Ideal when you need a focused, high-gain link between two distant outdoor points.

WN573HX3 — AX3000 with 8dBi Omni Antennas

Four 8dBi fiberglass tube antennas deliver 360° signal coverage for open outdoor areas, with MU-MIMO and Beamforming supporting up to 128 devices — perfect for wide-area outdoor coverage.

WN588HX3 — AX3000 with 6 x 7dBi Antennas

A compact, lightweight outdoor access point with a mounting bracket design for easy pole or wall installation. Great for flexible, quick outdoor deployments and wide omni coverage.

WN572HP3 — AC1200 with Dual Gigabit Ports

An upgraded AC1200 solution with MT7621A chip and Easy Mesh support for 64~96 simultaneous devices. Ideal for factories, communities, streets and working-from-home setups that need to eliminate dead zones.

WN588HA2 (AERIAL HD8S) — AC1200 NEW

Extends existing 2.4GHz and 5GHz wireless signals up to 300 meters with 1000MW power and PA+LNA. Connects to most wireless signals including Starlink — perfect for courtyards, warehouses and fish finders.

Wi-Fi 75100Mbps — Outdoor / Indoor WiFi 7

WAVLINK WiFi 7 Outdoor Long Range Router, Dual Band BE5100 Mesh Router, IP67 Waterproof & Dustproof, 15KV ESD & 4KV Lightning Protection, Active & Passive PoE Supported, 8dBi High-Gain Antennas

[Next-Gen Wi-Fi 7 Performance] Experience the future of wireless connectivity with Wi-Fi 7 dual-band technology, delivering blazing speeds of 688Mbps on 2.4GHz and 4323Mbps on 5GHz for a combined throughput up to 5100Mbps. Stream 4K videos without buffering, dominate competitive gaming with near-zero latency, and browse complex websites instantly.
[Strong Environmental Resilience] Engineered for extreme conditions, our IP67-rated waterproof and dustproof enclosure shrugs off torrential rains, dust storms, and debris. Built-in 15KV ESD protection and 4KV lightning surge defense safeguard critical components during electrical storms, ensuring rock-solid stability in coastal areas, industrial sites, or mountainous terrain.
[Flexible Enterprise & Rural Power Options] Deploy anywhere with dual PoE support: Active PoE (802.3at/af) enables plug-and-play installation in high-density environments like hospitals and campuses, while Passive PoE delivers cost-effective, long-range power for rural farms, orchards, and music festivals.
[Expansive Coverage with Intelligent Roaming] Four 8dBi high-gain fiberglass antennas create 360° signal coverage for outdoor areas, while the dedicated 5dBi antenna fills near-ground blind zones. Combined with WAVLINK Everything Mesh, one-click connection creates a unified mesh network.
[Five Adaptive Operation Modes] Transform this router to fit any scenario: router/AP mode converts wired networks to Wi-Fi hotspots; repeater extends weak signals; mesh router/extender creates seamless multi-node systems; and mesh AP integrates with existing infrastructure. Maintain a single network name (SSID) across all modes for effortless scaling.

Feature

Frequency: dual-band 2.4GHz@688Mbps + 5GHz@4323Mbps, speed up to 5100Mbps.
Ethernet port: 1 x 2.5G WAN/LAN.
Antennas: 4 x 8dBi + 1 x 5dBi high-gain antennas.
Operation modes: mesh AP, AP, repeater, mesh router, and mesh extender.
Security: WPA3-SAE/WPA2-PSK, WPA2-PSK, WPA PSK/WPA2PSK-MIX.
Power adapter: 100-240V/50-60Hz; DC 54V (Passive PoE); DC 48V (Active PoE).
IP67 waterproof, 15KV ESD, and 4KV lightning protection.
Complies with IEEE 802.11 be/ax/ac/a/n/g/b standards.
Supports 802.3 AT/AF PoE and Passive PoE to supply power.

Warm Tips

The PoE converter is not waterproof; please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100 m / 328 ft.
Please install the product 2–3 meters above the ground for better performance.
Under the mesh mode, WN573HBE2 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required), and WN573HBE2.

Packing List

1 x BE5100 WiFi 7 Outdoor AP
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x Main Body Holder
4 x Omni Antennas
2 x Stainless Steel Hose Clamps
2 x Silicone Pads
1 x Slotted Screwdriver
1 x Wrench
1 x Quick Start Guide
Several Screws

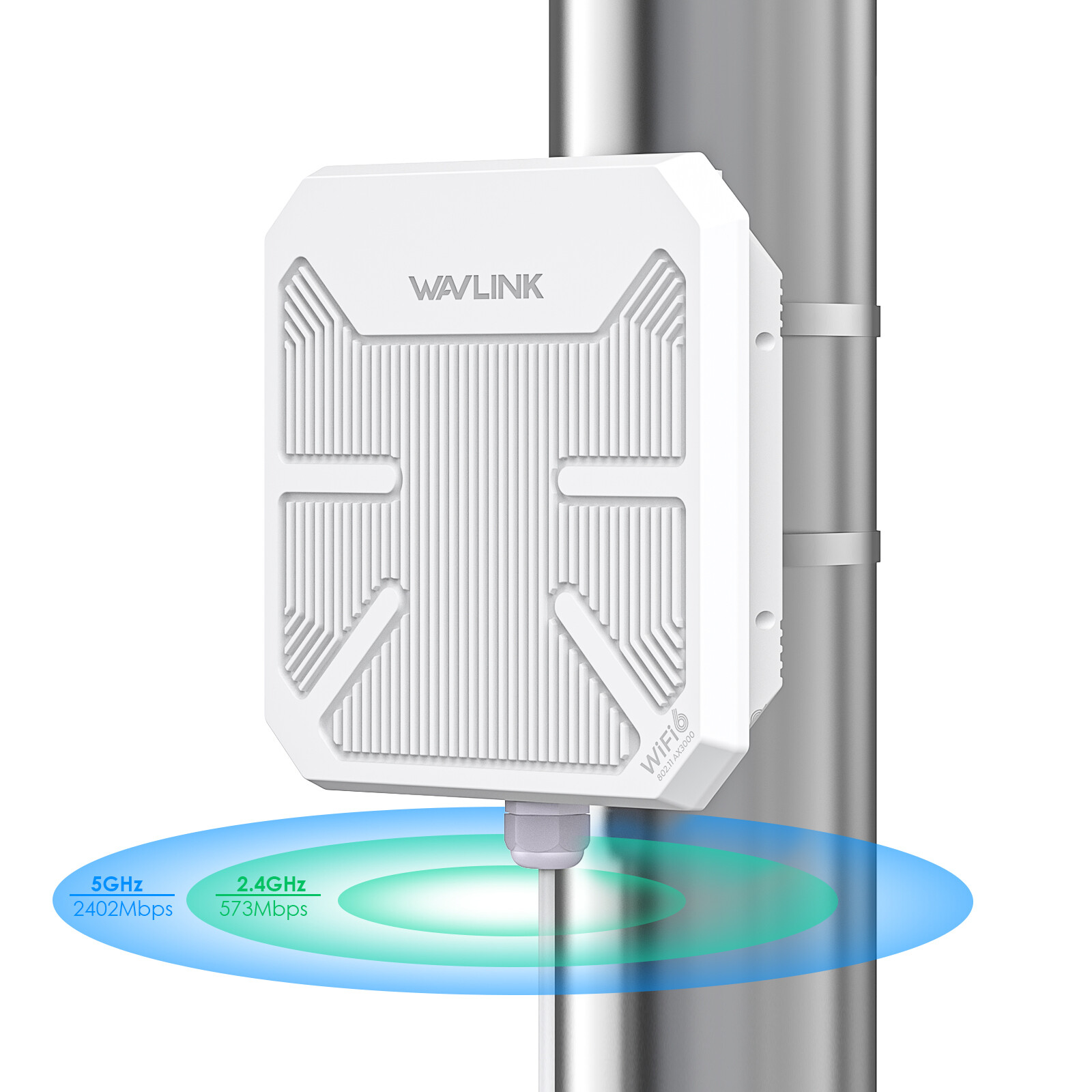

Wi-Fi 63000Mbps — Outdoor / Indoor — Built-in 4 x 12dBi Antennas — White & Camouflage

WAVLINK WiFi 6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 4x12dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

[🌐 Designed for Harsh Outdoor Conditions] IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
[🌐 Enjoy True WiFi 6 Speed] The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
[🌐 Optional PoE Power Supply] Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m / 328ft.
[🌐 Seamless WiFi Roaming] The built-in 4 x 12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
[🌐 Multiple Modes, Flexible Use] Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
[🌐 3Km Wireless Data Transmission] Specially designed for outdoor use, ideal for long distance wireless data transmission over 3km / 1.9miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of the wireless signal.

Specification

Model: WL-WN573HP3
Product Size: 24 x 24 x 7cm / 9.4 x 9.4 x 2.8in
PoE Converter Size: 4.4 x 3.7 x 2.2cm / 1.7 x 1.5 x 0.9in
Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight: 1050g / 37oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 x 12dBi Directional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Supports Fat AP Mode.
Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
Please install the product 2–3 meters above the ground for better performance.
Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
The real performance of the product may vary in accordance with different environmental conditions.

In the Box

1 x AX3000 WiFi 6 Outdoor Access Point
1 x 54V Power Adapter
4 x Cable Ties
1 x PoE Converter
2 x Silicone Pads
1 x Ethernet Cable
1 x Main Body Holder
1 x PWM M4x8x8MM Screw
1 x Wrench
6 x KA M4x25x6MM Screws
1 x Quick Start Guide
6 x Φ8x25MM Screw Plugs

Wi-Fi 63000Mbps — Outdoor / Indoor — 4 x 8dBi Antennas — White & Camouflage

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi 6 Anytime & Anywhere

WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; the 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps); supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

[⭐ Designed for Harsh Outdoor Conditions] Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
[⭐ Enjoy True WiFi 6 Speed] The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
[⭐ Optional PoE Power Supply] Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where a power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m / 328ft.
[⭐ Seamless WiFi Roaming] The 4 x 8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
[⭐ Multiple Modes, Flexible Use] Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.

Specification

Model: WL-WN573HX3
Product Size (without antennas): 24 x 24 x 7cm / 9.4 x 9.4 x 2.8in
PoE Converter Size: 4.4 x 3.7 x 2.2cm / 1.7 x 1.5 x 0.9in
Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight (without antennas): 1109g / 39.1oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 x 8dBi Omnidirectional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
2 x 8dBi 5GHz and 2 x 8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
Glass tube antenna for high precision, corrosion resistance, long life, strong wind resistance.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips

The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
Please install the product 2–3 meters above the ground for better performance.
Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required) and WN573HX3.

In the Box

1 x AX3000 WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE (Optional): 1 x 54V Power Adapter, 1 x PoE Converter, 1 x Ethernet Cable

Wi-Fi 63000Mbps — Outdoor / Indoor — Built-in 6 x 7dBi Antennas — White & Camouflage

WAVLINK WiFi 6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 6x7dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

[🌐 Designed for Harsh Outdoor Conditions] IP67-rated waterproof housing that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.
[🌐 Enjoy True WiFi 6 Speed] The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
[🌐 Seamless WiFi Roaming] The 6 x 7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
[🌐 Multiple Modes, Flexible Use] Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
[🌐 Powered by PoE and Flexible Installation] Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.

Specification

Model: WL-WN588HX3
Product Size: 17 x 17.3 x 5.1cm / 6.7 x 6.8 x 2in
PoE Converter Size: 4.4 x 3.7 x 2.2cm / 1.7 x 1.5 x 0.9in
Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight: 552g / 19.5oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz (573Mbps) + 5GHz (2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 6 x 7dBi Directional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.11 ax/ac/n/g/a/b standards.
3 x 7dBi 5GHz, 3 x 7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Supports Fat AP Mode.
Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

The PoE converter is not waterproof, please install it indoors.
Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.
Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
The real performance of the product may vary in accordance with different environmental conditions.

In the Box

1 x AX3000 WiFi 6 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
6 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide

AC12001200Mbps — 4 x 7dBi Antennas

WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender / Wireless Access Point / Mesh Agent with Passive POE, Dual Band 2.4GHz 300Mbps + 5.8GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported, No WiFi Dead Zones for Working from Home

[AC 1200 Dual-Band & Upgraded Chip & Easy Mesh Technology Supported] The next generation of Wi-Fi, complies with IEEE 802.11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200 (1200Mbps); with a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices (64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is a superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
[Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports] WL-WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where a power outlet is not available by combining your power and network data connection into a single RJ-45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
[Design for Harsh Outdoor Environment & Strengthening Waterproof Version] IP65-rated weatherproof & heat-resistant case that ensures continued operation in harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C ~ 70°C) (-22°F ~ 158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product. Note: The PoE part of the router is not waterproof.
[4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function] Higher antenna gain extensively strengthens Wi-Fi signal and expands wider coverage in the open air; stability technology automatically avoids channel conflicts using its channel selection feature, meeting outdoor long range coverage wireless network requirements and covering hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for stronger penetration & longer range coverage than the general access point — ideal for providing Wi-Fi service in big areas such as factories, communities, streets, etc.
[What You Get] All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender, 2 x 2.4G Omni Antennas, 2 x 5G Omni Antennas, 1 x RJ45 Networking Cable, 1 x Power Adapter, 1 x PoE Converter, 1 x Main Body Holder, 2 x Cable Ties, 1 x Screw Fitting Kit, 1 x Quick Start Guide. 12-month worry free warranty (extra 6 months for registered members) and life-long technical support.

Installation Note

Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better reception.

Specification

Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1 x 10/100/1,000Mbps LAN; 1 x 10/100/1,000Mbps WAN
Antennas: 4 x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK, WPA2/WPA3 Mix
LEDs: 7 x Status LED Indicators
Power adapter: 100~240V/50~60Hz; DC 24V (Passive PoE)

What's in the Box

1 x AC 1200 Dual Band Outdoor Ap/Range Extender
2 x 2.4G Omni Antennas
2 x 5G Omni Antennas
1 x RJ45 Networking Cable
1 x Power Adapter
1 x PoE Converter
1 x Main Body Holder
2 x Cable Ties
1 x Screw Fitting Kit
1 x Quick Start Guide

AC1200 · NEW1200Mbps — 4 x 7dBi Antennas — NEW

WAVLINK AC1200 Wi-Fi 5 Outdoor Access Point, Long-Range Weatherproof Dual-Band Wi-Fi Extender with 4 x 7dBi Omni Antennas, PoE, Gigabit Port, Supports AP/Repeater/Mesh Modes for Courtyard, Fish Finder

[Upgrade to Wi-Fi 5] Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHz@867Mbps. Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU-MIMO, Beamforming, reducing interference for stable, wider coverage, and increased device connectivity.
[Expand Coverage Area] Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and a built-in high-power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals, extending the range of the router or access point up to 300 meters.
[Professional Outdoor Design] Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20°C to 50°C temperature range, ensuring stable operation in various weather conditions.
[Flexible Mode Selection] AP/Repeater/Router mode: connects to most wireless signals, including Starlink. Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch. Also compatible with Wavlink AC controller for unified management in large networks.
[Powered by PoE] Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices in locations without a power source.

Experience High-Speed Wi-Fi 5 Anywhere with WAVLINK Professional Outdoor Access Point.
Experience the power of AC1200 Dual Band outdoor extender — amplify and extend existing 2.4GHz and 5GHz wireless signals for wider coverage, reaching areas beyond router reach. Simplified by PoE, this high-power outdoor Wi-Fi solution offers flexible installation anywhere, anytime. Choose from various operating modes with professional outdoor design to withstand environmental changes, catering to diverse outdoor connectivity needs. Ideal for resolving warehouse dead spots and ensuring stable network connection for your fishing gear on-the-go.

Specification

Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0 x 5.6 x 17.0cm / 6.7 x 2.2 x 6.7in
PoE Converter Size: 3.7 x 2.2 x 4.3cm / 1.5 x 0.9 x 1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box
