Product Description:
Water cooling row radiator computer cpu graphics card cooling instrument cooling water cooling row 90/120/240/360
Difference between 10 watercourse and 18 watercourse:The more pipes, the better the cooling effect.

Features:
Pure aluminum fins, all-aluminum material conducts heat quickly and stably, with 20 FPI fin density design to ensure heat dissipation and ventilation
All-aluminum water chamber, all-aluminum water chamber structure is stable, effective anticorrosive cooling uniformity and long-lasting performance.
Surface technology, the surface of the cold plate adopts sandblasted paint technology with delicate texture and durability.

Note: Straight spout can be connected directly to 8mm I.D. water pipe.
Straight spout can be directly connected to the inner diameter of 8mm water pipe, threaded spout need to purchase additional G1/4 threaded pagoda connector, the diameter can be selected by yourself.
Screw holes are directly under the water pipe, so be sure not to use long screws, will top leakage of the waterway, top leakage is not guaranteed.
Inlet and outlet respectively: ∅10mm / ∅ 8mm (only 80 water row is ∅8mm, the other are ∅10mm)
120 and 240 water discharge outlet center distance: about 70mm
Threaded caliber: 13.16mm outside diameter 11.5mm inside diameter (G1/4)
Thickness of spout: 3.2cm (measured manually)
Internal threads on our options are not with a connector, need to buy their own parents.

80 Water Row:
Core size: 83*105*16mm
Installation size: 71.5 * 71.5mm (recommended selection 8020 fan)

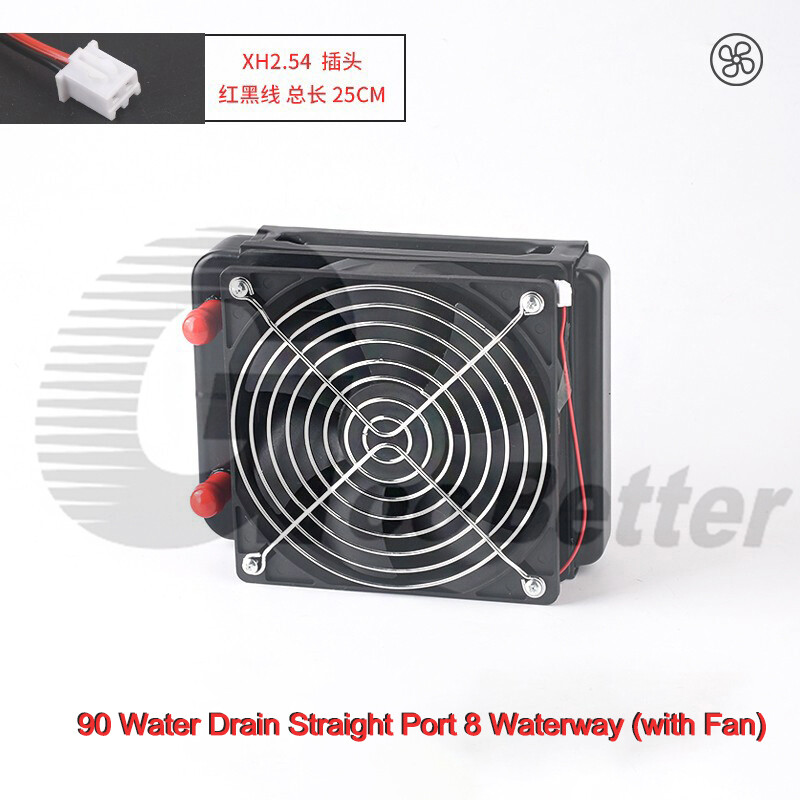

90 Water Row:
Core size: 89.5*99*16mm
Installation size: 82.5 * 82.5mm (recommended selection of 9025 fan)

120 Water Row:
Core size: 116*108*16mm
Installation size: 105*105mm (recommended 12025 fan)

240 Water Row:
Core size: 234*118*16mm
Installation size: 105 * 105mm (recommended to choose two 12025 fans)

360 Water Row:
Core size: 400*120*16mm
Installation size: 105*105*105mm (recommended to choose three 12025 fans)

Note: Attention EU buyers: Shipping includes a mandatory EU fixed import duty of 3 euros per product category!

Package Including:
