Waveshare 3.5" Resistive Touch Screen IPS LCD 480x320, XPT2046 Controller, Co...
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 3.5" Resistive Touch Screen IPS LCD 480x320, XPT2046 Controller, Co...
Price: US $42.38
Waveshare 3.5" Resistive Touch Screen IPS LCD 480x320, XPT2046 Controller, Compatible with Raspberry Pi 5/4B/3B+/3B/2B/A+/B+/Zero W/Zero 2W
  • 3.5 inch Resistive Touch Screen,IPS LCD,SPI LCD Interface.Touch Screen Controller:XPT2046. Compatible with Raspberry Pi (Any Revision of Pi ) (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali). Size perfectly fits the Pi
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • IPS screen, large viewing angle, excellent display effect.
  • Combined with Raspberry Pi, allows you to: Take photos by touching (up to 17 camera modes), Use software keyboard (system interaction without keyboard/mouse)


Features

  • 480x320 hardware resolution
  • Resistive touch control
  • Compatible with Raspberry Pi (Any Revision of Pi )(directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Size perfectly fits the Pi
  • High quality immersion gold surface plating
  • Combined with the RPi, allows you to:
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

      • Key Parameters

    • LCD Type:IPS
    • LCD Interface:SPI
    • Touch Screen Type: Resistive
    • Touch Screen Controller:XPT2046
    • Colors:65536
    • Backlight:LED
    • Resolution :320*480 (Pixel)
    • Aspect Ratio :8:5
    • Power Consumption :TBD
    • Backlight Current :TBD
    • Operating Temp. (℃):TBD

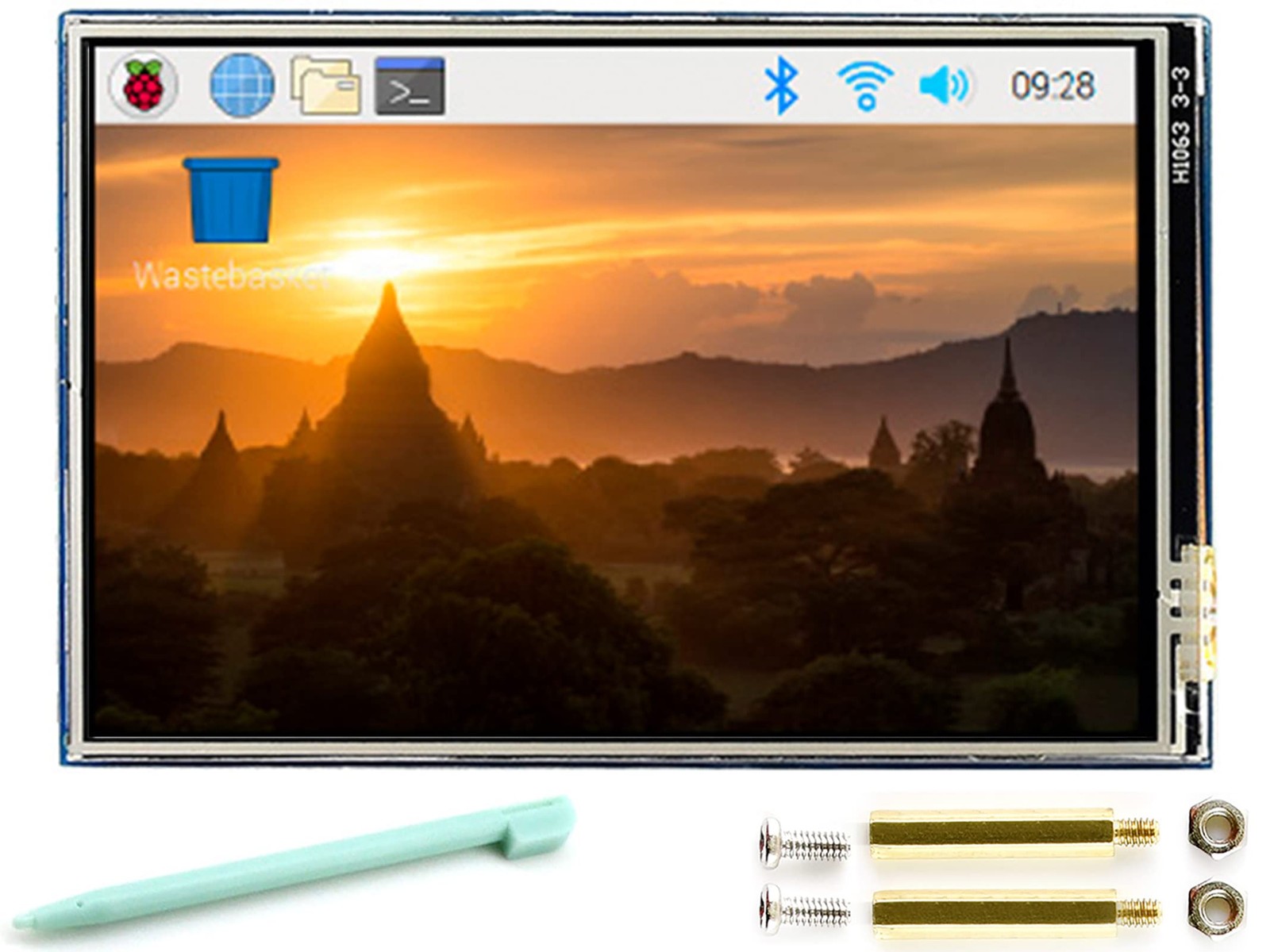

      • Package Content

      1.3.5inch RPi LCD (B) x 1
      2.Touch pen x 1
      3.RPi screws pack (2pcs) x 1
      4.Quick start sheet x1

      Note:
      If LCD doesn't work with my Raspbian,please use the LCD with the RPi official image, driver should be installed first. Please refer to the user manual.However, for the first testing, you may want to use our provided image directly.
      For more info, please send us Amazon message to get it .
