Description
5inch DSI Capacitive Touch Display, 720×1280 Pixels, IPS Panel, 5-Point Touch, Optical Bonding Toughened Glass Panel, optional protective case5″ DSI Capacitive Touch Display

The display orientation is portrait by default, 720 × 1280 resolution (H×V).
Change the software config for landscape display.

• Size5″
• Resolution720 × 1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch PanelToughened Glass
• Touch Panel TechOptical Bonding
• Touch InterfaceI2C
• Enclosure (optional)ABS Material

Version Options

5-DSI-TOUCH-B
Standard version

5-DSI-TOUCH-B-WITH-CASE
with protective black case
(suitable for Raspberry Pi 5 only)

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch
ESP32-P4Supports LVGL GUI programs, 5-point touch
RK3506Supports Buildroot / Ubuntu, etc. 5-point touch
RK3576Supports Buildroot / Debian / Ubuntu / Android, etc. 5-point touch

* (the case supports Raspberry Pi 5 only, due to connector layout)

connection examples

Working with Raspberry Pi 5

Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin

with protective case (suitable for Raspberry Pi 5 only)

Working with Raspberry Pi 4B

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with ESP32-P4-Module-DEV-KIT

Working with Luckfox Lyra

Working with Luckfox Omni3576

* for reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

5-Point Capacitive Touch

1. Up to 5-point touch, depending on the operating system
2. Up to 6H hardness toughened glass panel
3. Optical bonding, provides clear image, dustproof

Supports backlight adjustment via software
Thinner and more space-saving

The total thickness of the LCD is only 8mm*, lightweight and nice looking

* Note: Does not include the standoff height.

interface definitionwith protective case
How to install

* for reference only, theRaspberry Pi 5is NOT included

outline dimensions

Standard version

The protective black case

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

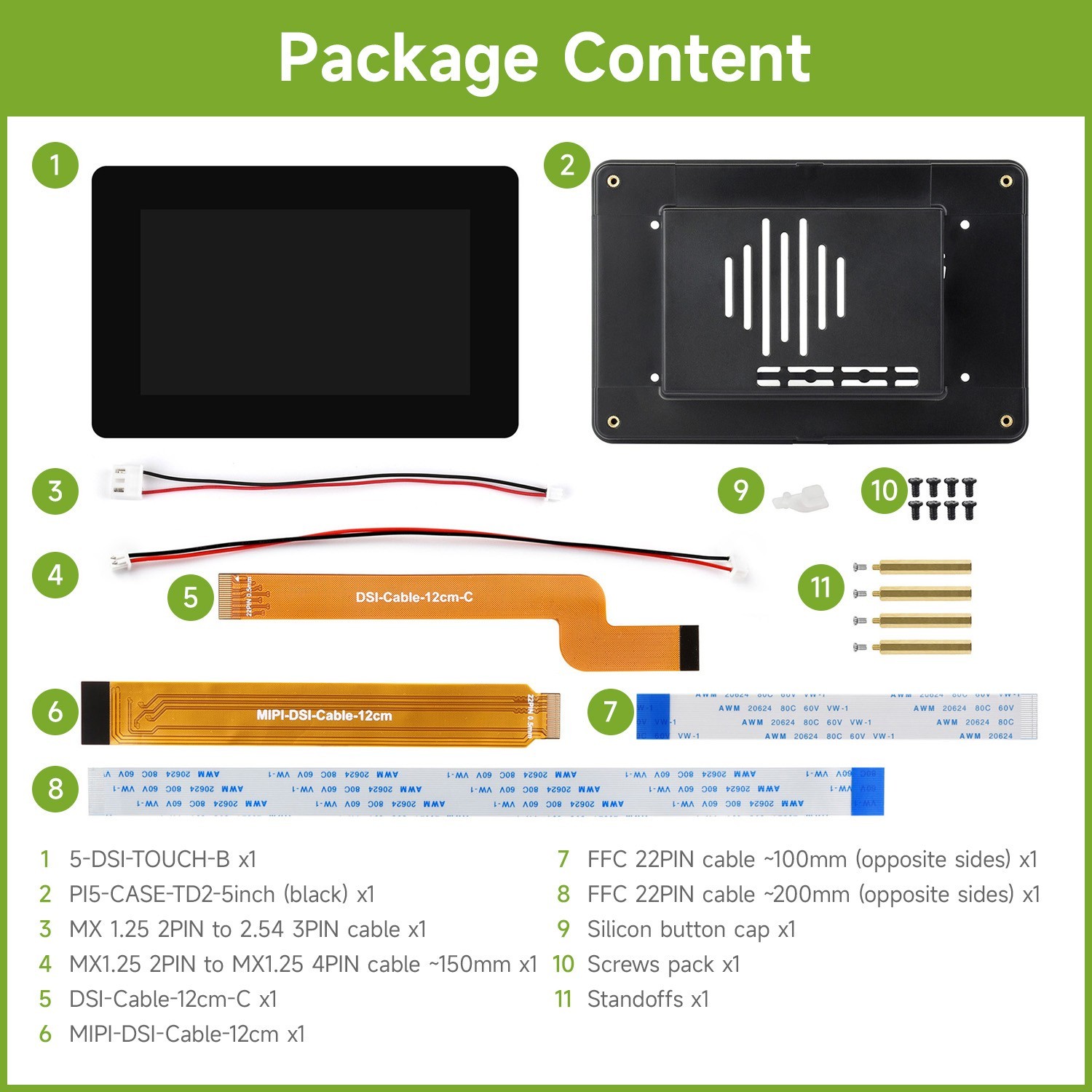

Resources & ServicesPackage Content

Weight:0.135 kg

5-DSI-TOUCH-B

1. 5-DSI-TOUCH-B x1
2. MIPI-DSI-Cable-12cm x1
3. MX 1.25 2PIN to 2.54 3PIN cable x1
4. FFC 22PIN cable ~200mm (opposite sides) x1
5. FFC 22PIN cable ~100mm (opposite sides) x1
6. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
7. Standoffs style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
8. 5-DSI-TOUCH-B x1
9. PI5-CASE-TD2-5inch (black) x1
10. MIPI-DSI-Cable-12cm x1
11. MX 1.25 2PIN to 2.54 3PIN cable x1
12. FFC 22PIN cable ~200mm (opposite sides) x1
13. FFC 22PIN cable ~100mm (opposite sides) x1
14. MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
15. DSI-Cable-12cm-C x1
16. Silicon button cap x1
17. Standoffs x1
18. Screws pack x1
