DescriptionPCIe To 4-Ch M.2 Adapter Board for Raspberry Pi 5, Supports 4-ch NVMe Solid State Drives, Supports powering the Raspberry Pi 5, Onboard LED indicators, Raspberry Pi 5 NVMePCIe To 4-Ch M.2 Adapter Board
Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 M KEY Solid State Drives, High-Speed Reading/Writing, Improves Working Efficiency
Version Options
PCIE TO 4-CH NVME Board (B) NP
without power supply
PCIE TO 4-CH NVME Board (B)
with 12V 4A power supply
Connecting to PI5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, the Raspberry Pi 5 is NOT included.
4-ch NVMe Solid State Drives Support
Compatible With 2280 / 2260 / 2242 / 2230 Size M.2 Solid State Drives
Supports PCIe x1 Gen2 only, Supports Booting PI5 From Solid State Drive
NVMe Drive Slot Support
Note: Only supports the NVMe Protocol Solid State Drives.
Improves reading/writing speed of your Pi
Offers faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the Package Content for detailed part list
Supports powering the Raspberry Pi 5
Onboard wide voltage input DC jack (7V~24V), supports powering the Raspberry Pi via 3PIN cable (up to 5V 5A). The PCIe adapter board also can be powered by the Raspberry Pi 5.
* for reference only, the Raspberry Pi 5 is NOT included.
Onboard LED Indicators
Easy to monitor the Working Status
How to install
* for reference only, the Raspberry Pi 5 is NOT included.
Outline dimensionsResources & ServicesPackage Content
Weight:0.066 kg
PCIE TO 4-CH NVME Board (B) NP
- PCIE TO 4-CH NVME Board (B) x1
- Screws pack x1
- PH2.0 3PIN cable x1
- 16P-Cable-40mm x1

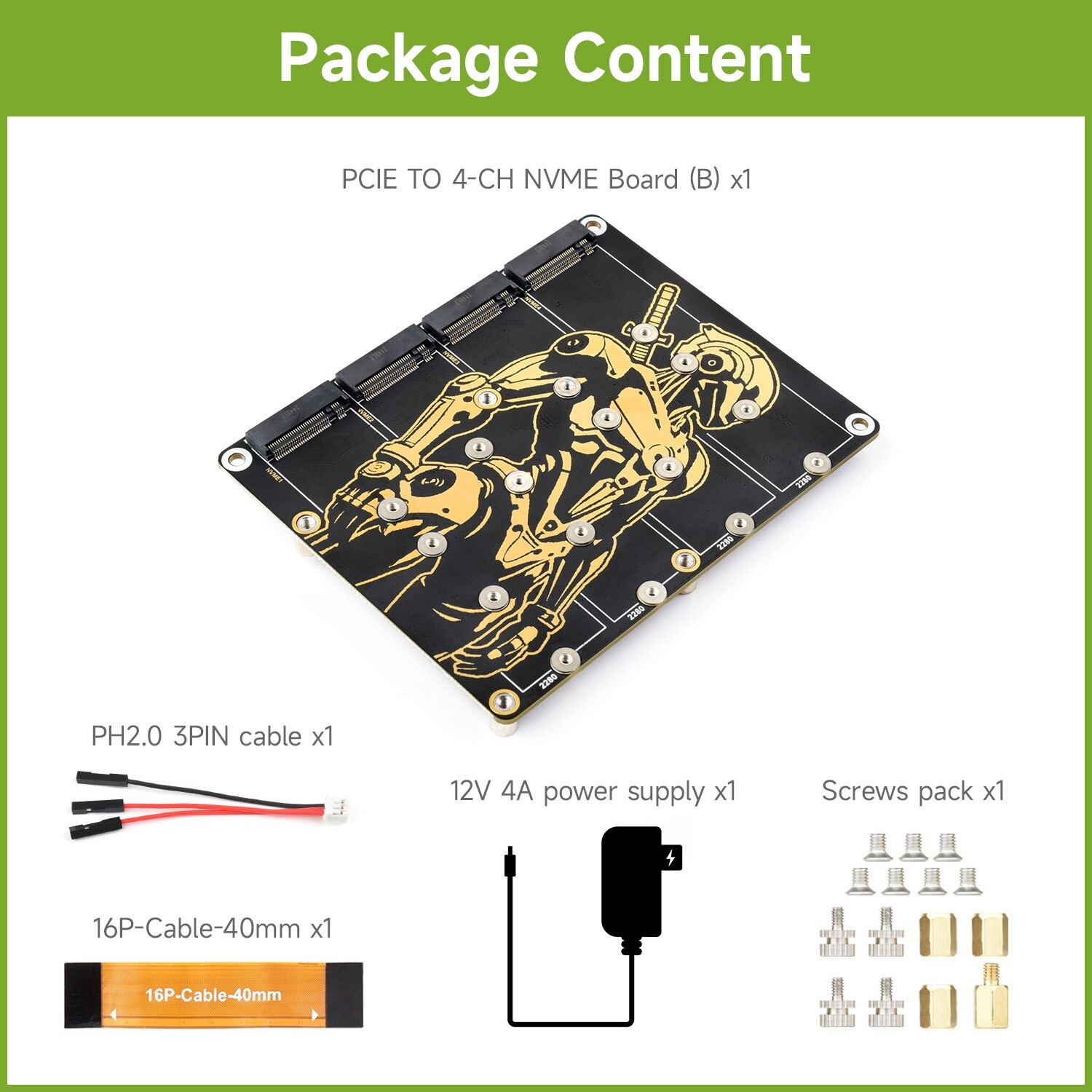

PCIE TO 4-CH NVME Board (B)
- PCIE TO 4-CH NVME Board (B) x1
- PH2.0 3PIN cable x1
- 16P-Cable-40mm x1
- Screws pack x1
- OPTIONS12V 4A power supply x1
PCIe adapter board selectionProduct ModelExtended InterfacePCIe Versionmounting solutionPower monitoringfeatures
PCIe TO M.2 Board (D)M.2_M_KEYPCIe ×1 Gen2/3on topNVME, 2280
PCIe TO 2-CH M.2 HAT+ (B)M.2_M_KEY × 2PCIe ×1 Gen2HAT+√2-ch NVME, 2280
PCIe TO 2-CH M.2 HAT+M.2_M_KEY × 2PCIe ×1 Gen2HAT+√2-ch NVME, 2242
PCIe TO M.2 HAT+M.2_M_KEYPCIe ×1 Gen2/3HAT+√NVME, 2242
PCIe TO M.2 MINIM.2_M_KEYPCIe ×1 Gen2/3on topNVME, 2242, compact size
PCIe TO M.2 Board (C)M.2_M_KEYPCIe ×1 Gen2/3on sideNVME, 2280, side-mounting
PCIe TO Gigabit ETH Board (C)Gigabit ETHPCIe ×1 Gen2on sideGigabit ETH port, side-mounting
PCIe TO 4G/5G M.2 USB3.2 HAT+M.2_B_KEY, USB3.2 × 3PCIe ×1 Gen2HAT+√supports 4G/5G modules, expanded USB3.2 ports
PCIe TO USB 3.2 Gen1 Board (C)USB3.2 × 4PCIe ×1 Gen2on sideexpanded USB3.2 ports, side-mounting
PCIe TO USB 3.2 Gen1 HAT+USB3.2 × 4PCIe ×1 Gen2HAT+√expanded USB3.2 ports
PCIe TO Gigabit ETH USB3.2 HAT+USB3.2 × 3, Gigabit ETHPCIe ×1 Gen2HAT+√expanded USB3.2 ports and Gigabit ETH port
PCIe TO MiniPCIe GbE USB3.2 HAT+USB3.2 × 2, MiniPCIe, Gigabit ETHPCIe ×1 Gen2HAT+√expanded MiniPCIe 4G module slot, USB3.2 ports and Gigabit ETH port
RM520N-GL 5G HAT+M.2_B_KEYPCIe ×1 Gen2HAT+√access to 5G networking via PCIe interface, multiple 5G modules compatible
PoE M.2 HAT+M.2_M_KEYPCIe ×1 Gen2/3HAT+with PoE function, NVME, 2242
PoE M.2 HAT+ (B)M.2_M_KEYPCIe ×1 Gen2/3HAT+with PoE function, NVME, 2280
PoE M.2 E KEY HAT+M.2_E_KEYPCIe ×1 Gen2/3HAT+with PoE function, Wi-Fi, Bluetooth, 2230
PCIe TO ETH M.2 HAT+M.2_M_KEY, Gigabit ETHPCIe ×1 Gen2HAT+√with Gigabit ETH port, NVME, 2280
PCIE TO M.2 E KEY HAT+M.2_E_KEYPCIe ×1 Gen2/3HAT+Wi-Fi, Bluetooth, M.2_E_KEY, 2230
PCIe TO PCIe x1 Board (C)PCIe ×1PCIe ×1 Gen2/3on sideCompatible with PCIe x1, x4, x8, and x16 devices
PCIe TO 2-CH PCIe HATPCIe 16PIN x2PCIe ×1 Gen2HATExpands 2-Ch PCIe FFC connectors
PCIE TO 4-CH NVME Board (B)M.2_M_KEY × 4PCIe ×1 Gen2on bottom√4-ch NVME, 2280, onboard DC power jack
