DESCRIPTION

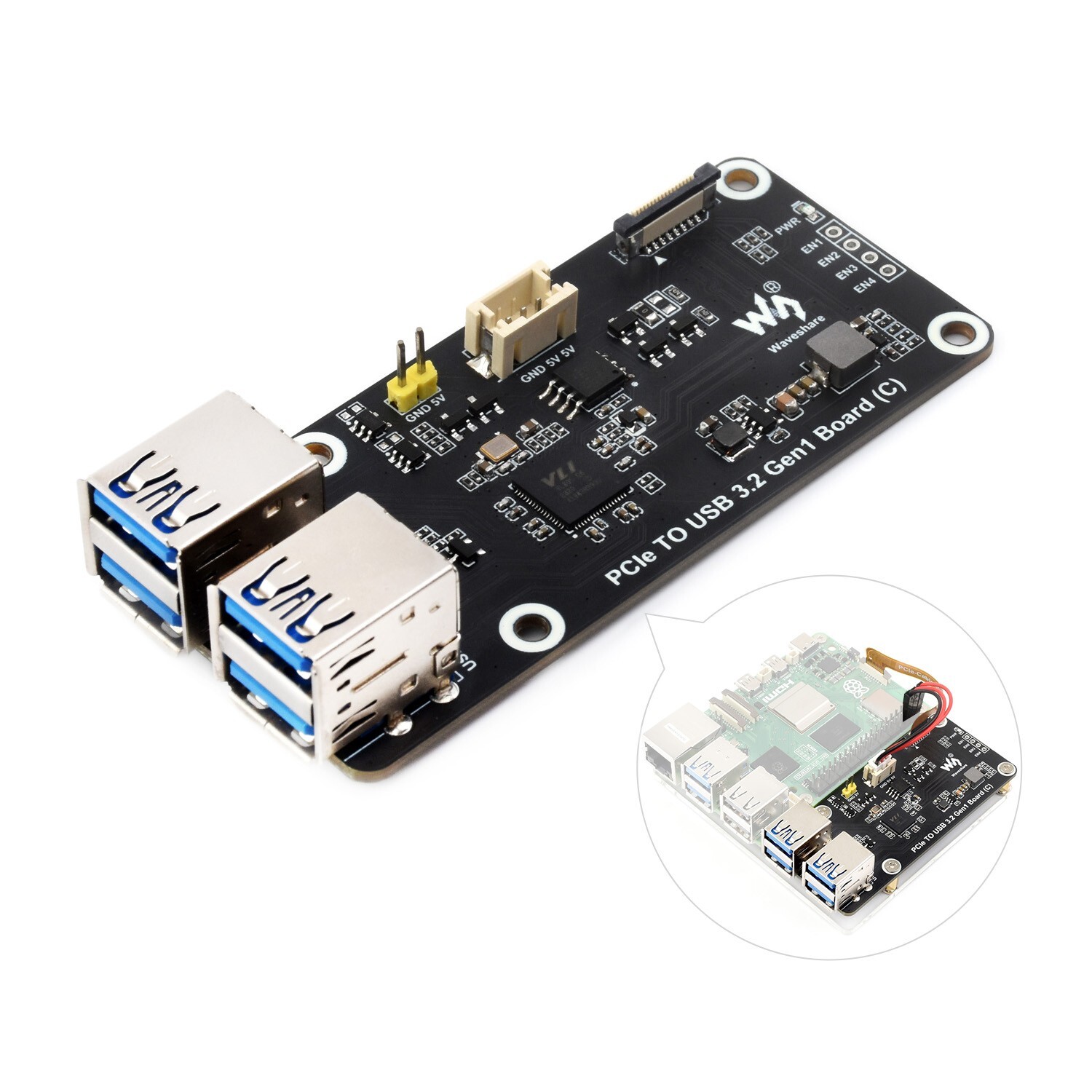

PCIe To 4-Ch USB3.2 Gen1 Board (C) For Raspberry Pi 5, Up To 5Gbps Transmission Speed, Driver-Free, Plug And Play, Raspberry Pi 5 PCIe AdapterPCIe TO USB 3.2 Gen1 Board (C)
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-Free, Plug And Play
Connecting To PI5 Via 16PIN Cable
SpecificationsINTERFACE STANDARDHigh-speed USB 3.2 Gen1COMMUNICATION RATE5Gbps for single USB port
total 5Gbps for 4-ch USB portsUSB OUTPUT5V@Imax: 2A; USB-A connectorPOWER SUPPLY5V DC power supply header/connectorOPERATING TEMPERATURE0℃ ~ 75℃
5Gbps Ultra-Fast Transmission
Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission
Enabling Up To 8-Ch USB Ports For The Raspberry Pi 5
PCIe To 4-Ch USB 3.2 Gen 1 High-Speed Ports For Connecting More Peripherals
* theRaspberry Pi 5is NOT included, please refer to the Package Content for detailed part list
4-Ch Power Supply Independent Control
Allows Controlling The Power ON/OFF Of Each USB Port Via Commands
Two Power Supply Methods
Supports Power Supply Via 2PIN Header Or 3PIN Connector
Comes With Transparent Acrylic
Mounting Plate
Adopts Side-Mounting Solution To Save Space Above The Raspberry Pi 5
Connecting To PI5 Via 16PIN Cable
* for reference only, please refer to the Package Content for detailed part list
Acrylic Mounting Bottom Plate, Stable And Not Easy To Loosen
Outline DimensionsResources & ServicesPACKAGE CONTENT
Weight:0.065 kg
- PCIe TO USB 3.2 Gen1 Board (C) x1
- Transparent acrylic mounting plate x1
- 16PIN PCIe cable x1
- PH2.0 3PIN cable x1
- Standoff pack x1
