Description:
Wirewerks

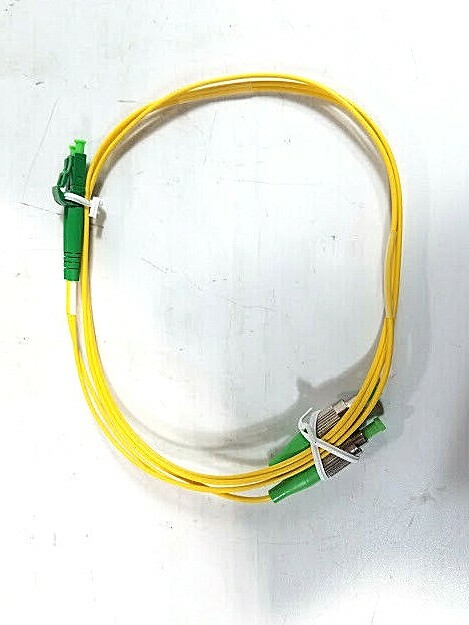

FOPC Sm B/I 2F 1.6mm OFNR, FC/APC-LC/APC, 1 meter; RoHS Compliant; Telcordia GR-326-CORE Compliant;OFNR(Optical Fiber Nonconductive Riser), Bend Optimized Fiber;
FOPC(Fiber Optic Patch Cord)-fiber-optic patch cordis afiber-optic cablecapped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, anopticalswitch or other telecommunication equipment. Its thick layer of protection is used to connect theopticaltransmitter, receiver, and the terminal box.
Sm B/I 2f(Singlemode Bi-Directional Duplex)-Singlemodecable features a 9-micron glass core.Duplexcable consists of twofibers, usually in a zipcord (side-by-side) style. Useduplexmultimode orsinglemode fiberoptic cable for applications that require simultaneous, bi-directional data transfer. ...Duplex fiberis available insinglemodeand multimode. Bi-Directional fiber means that the signals can go back and forth in both directions along the same fiber.
OFNR- Optical Fiber Nonconductive Riser-this is acable with only glass fiber with no copper conductiveelements. It is generallyintended for vertical runs between floors as part of a fiber backbone.OFNR cables has fire-resistance characteristics tested to UL-1666 "Standard Test for Flame Propagation Height of Electrical and OpticalFiber CableInstalled Vertically in Shafts."
Bend Optimized Fiber- It helps prevent network disruptions from inadvertentfiber bendsthat can occur in outside plant closures or terminals, and enables smaller cable packaging to help ease cable handling and lower cable installation costs.
FC/APC-LC/APC
FC/APC Connectors-TheFC connectoris a fiber optic.connectorwith a threaded body that was designed for use in high-vibration environments. APC means Angled Polished Connector andare distinguished visibly by the use of a green strain relief boot. Theconnectorsare typically designated "FC/APC" (for Angled Physical Contact), or merely "FCA".
LC/APC Connectors-LC or Lucent Connectors are about half the size of SC connectors, 1.25mm diameter ferrule. APC stands forAngled Polished connector, which prevents back-reflections. It is usually used in analog fiber optic system equipment,such as CATV or Satellite.
RoHS Compliant-RoHSis a product levelcompliancebased on the European Union's Directive 2002/95/EC,the Restrictionof the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).
Telcordia GR-326-CORE Compliant-“Generic Requirements for Single-mode Optical Connectors and Jumper Assemblies,” is a specification for single-mode connectors and cable assemblies only. ... Essentially,GR-326is a performance specification for cable assemblies.
*Note- This is a new item. Please take a look at the pictures of the item to make sure it is the product you want to purchase. If you have any questions, feel free to contact us for more information. Thank you for your business!
