PRODUCT SPECIFICATIONS :

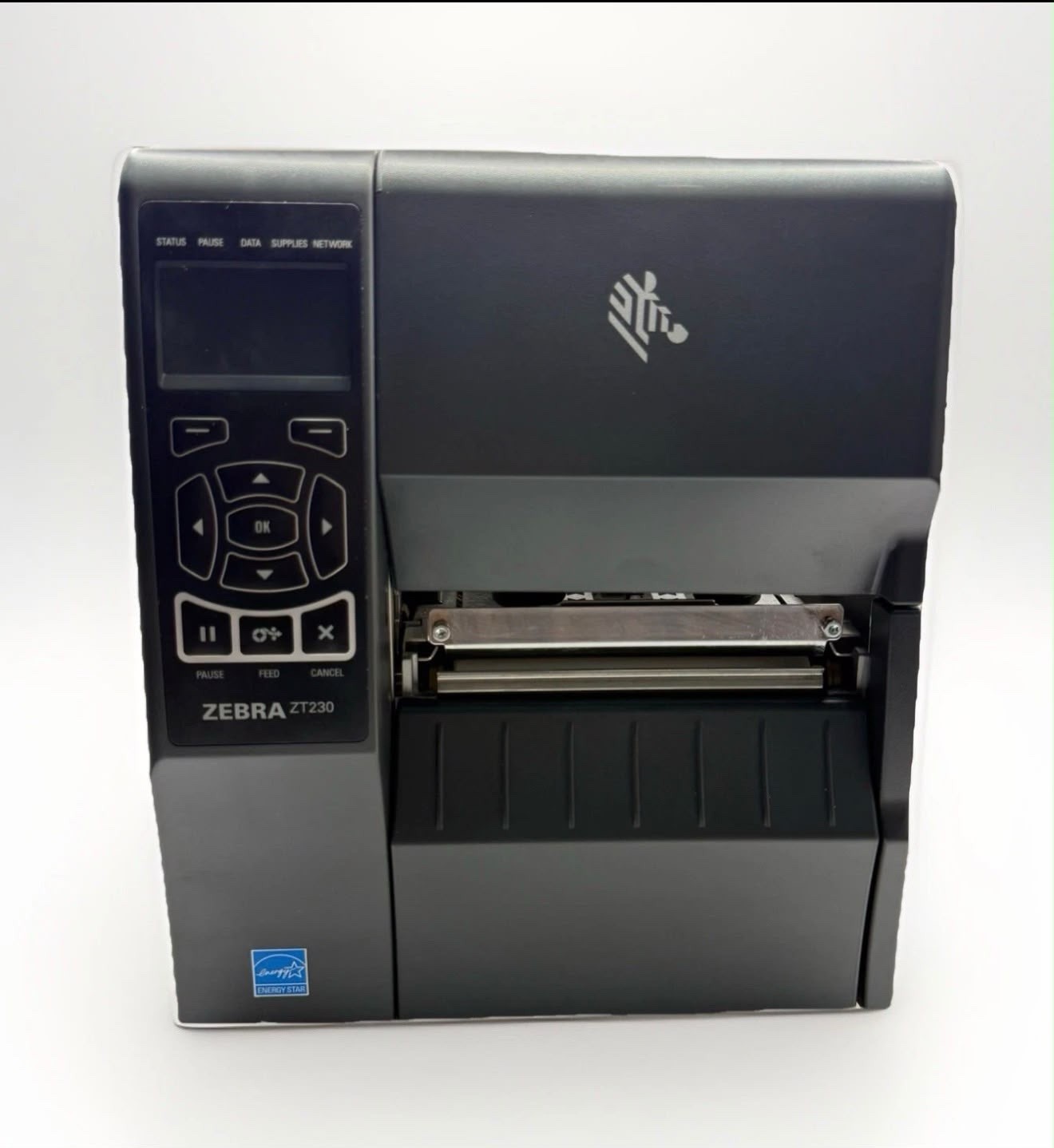

• Model: ZT23042-T0A200FZ
• Manufacturer: Zebra Technologies
• Series: ZT230 Industrial Printer
• Serial Number: 52J164103491 (as shown in images)
• Manufacturing Date: 10/07/2016
• Service Status: ZASP Certified compatible
TECHNICAL SPECIFICATIONS:
• Print Technology: Thermal Transfer and Direct Thermal
• Print Resolution: 203 dpi (8 dots/mm)
• Print Speed: Up to 6 inches per second (152 mm/sec)
• Max Print Width: 4.09 inches (104 mm)
• Max Print Length: 157 inches (3988 mm)
MEMORY & PROCESSING:
• RAM: 128 MB SDRAM (4 MB user available)
• Flash Memory: 128 MB (58 MB user available)
• Processor: 400 MHz
CONNECTIVITY:
• Standard Ports: USB 2.0 high-speed, RS-232 Serial
• Network: Ethernet 10/100 (model dependent)
• Interface: Icon-based LCD graphical user interface
• Programming Languages: ZPL, ZPL II, XML
MEDIA SPECIFICATIONS:
• Media Types: Labels, continuous labels, die-cut labels
• Media Width: 0.763” to 4.5” (19.4 to 114 mm)
• Media Thickness: 0.003” to 0.01” (0.076 to 0.254 mm)
• Roll Diameter: Up to 8 inches outer diameter
• Core Size: 1” or 3” core diameter
PHYSICAL SPECIFICATIONS:
• Dimensions: 9.5” W x 17” D x 10.9” H (242 x 432 x 277 mm)
• Weight: 20 lbs (9.1 kg)
• Construction: All-metal frame with metal media cover
• Design: Bi-fold media door with large clear window
ENVIRONMENTAL & POWER:
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Operating Humidity: 20% to 85% non-condensing
• Power Supply: Internal, 100-240 VAC, 50/60 Hz
• Energy Efficiency: Energy Star certified
ADVANCED FEATURES:
• Element Energy Equalizer (E3™️): Superior print quality technology
• OpenACCESS™️ Design: Tool-less media and ribbon loading
• Dual Media Sensors: Transmissive and reflective sensing
• Real-Time Clock: Date/time stamping capability (optional)
• Link-OS Environment: Advanced printer management
CERTIFICATIONS:
• Safety: UL, cUL, CE, FCC Part 15 Class B
• International: VCCI, C-Tick, BSMI, KC, CCC
• Environmental: RoHS compliant, Energy Star
• Service: ZASP certified service network compatible
APPLICATIONS:
Manufacturing labeling, shipping operations, warehouse inventory management, retail product labeling, healthcare patient identification, asset tracking systems.
