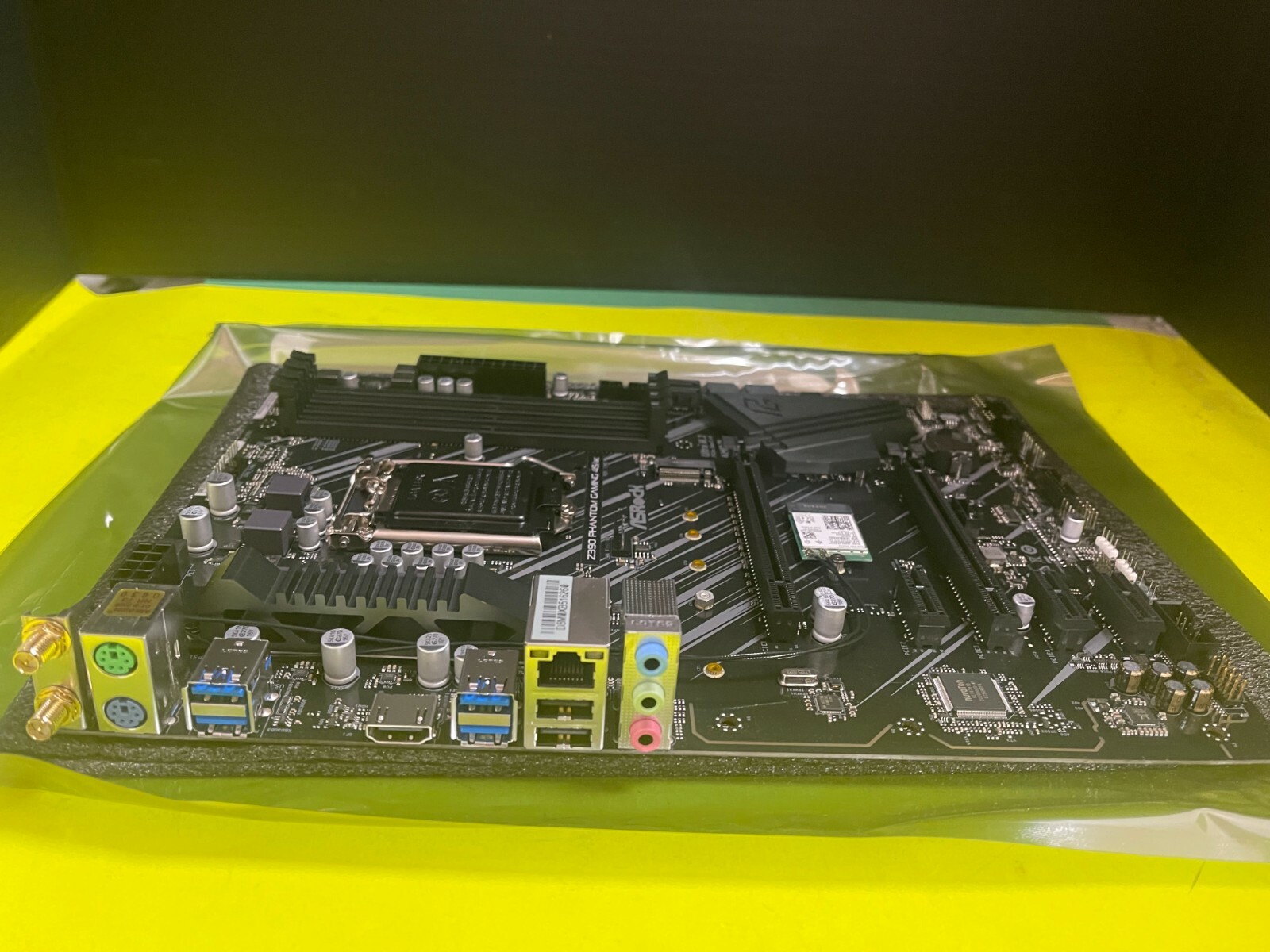

ASRock Z390 Phantom Gaming 4s /ac (WIFI) --NEW, BULK PACKAGE. does not come with Manual
Supported CPUCPU Socket TypeLGA 1151 (300 Series)CPU TypeSupports 9th / 8th Gen Intel Core processors** Not backward compatible with older generation of LGA 1151 CPUs.Supported CPU TechnologiesTurbo Boost Technology 2.0ChipsetsChipsetIntel Z390Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots4×288pinMemory StandardDDR4 4300(OC)+* / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)Maximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x162 x PCI Express 3.0 x16PCI Express x13 x PCI Express 3.0 x1Other Slots1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)** Supports CNVio1 WiFi module (Intel Wireless-AC 9560/9462/9461) only.Storage DevicesSATA 6Gb/s6 x SATA 6Gb/sM.21 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.Intel Optane ReadyYesSATA RAID0/1/5/10Onboard AudioAudio ChipsetRealtek ALC892Audio Channels7.1 ChannelsOnboard LAN and WiFiLAN ChipsetIntel I219-VMax LAN Speed10/100/1000Mbps
WIFI 802.11 AC and BluetoothRear Panel PortsBack I/O Ports1 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
2 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection)
2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
2 X WIFI anta portInternal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)Other Connectors
1 x TPM Header
1 x Power LED and Speaker Header
1 x CPU Fan Connector (4-pin)*
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
1 x Front Panel Audio Connector* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
** CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.Physical SpecForm FactorATXDimensions (W x L)12.0" x 8.8"Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power ConnectorWindows CompatibilityWindows payment required for this item For fastest service.
