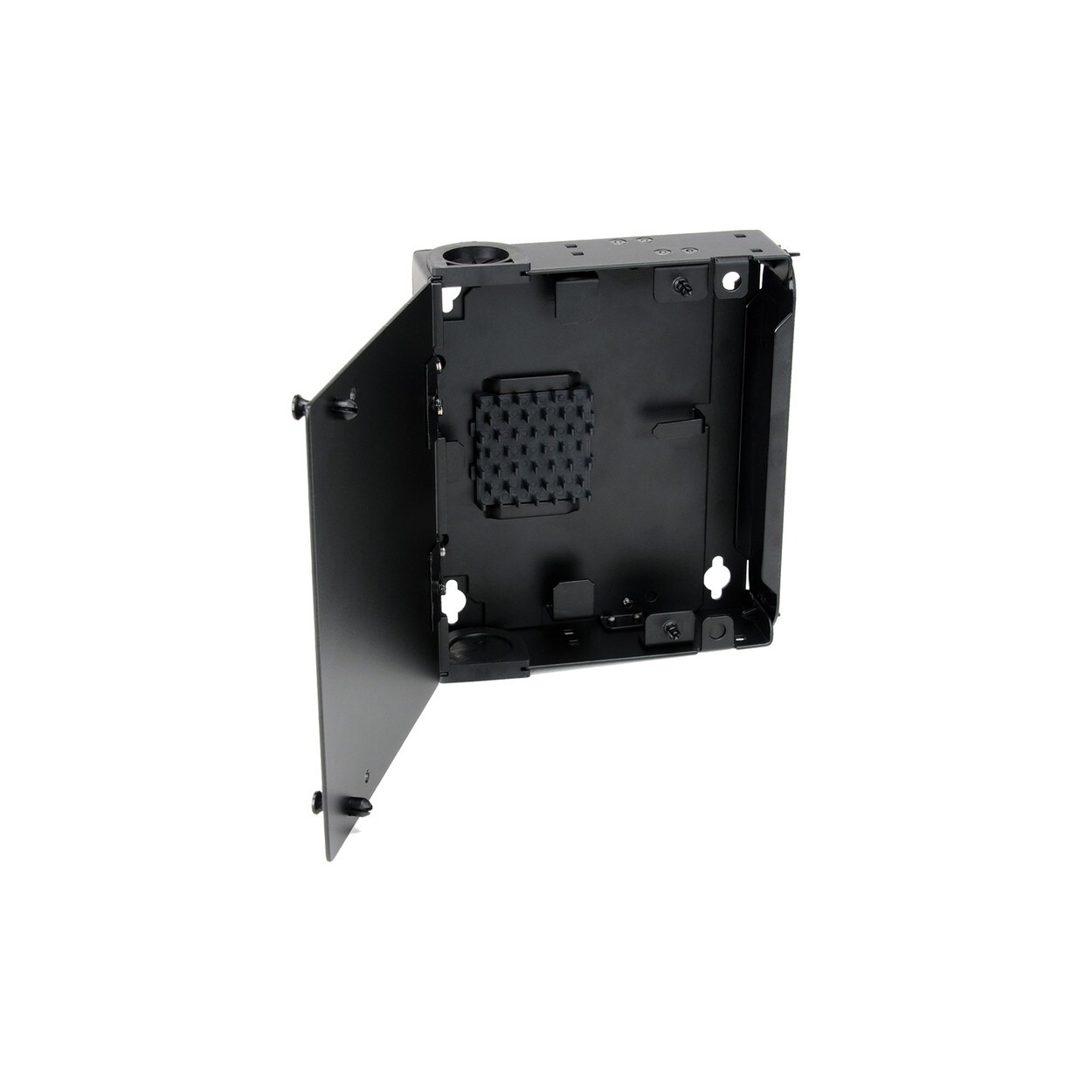

Corning SPH-01P Wall-Mount Single-Panel Housing Holds one CCH Connector Panel Click Thumbnails to EnlargeDESCRIPTION
• Corning SPH-01P Single-Panel Housing (SPH) Wall-mountable, holds one CCH connector panel, Black
FEATURES & BENEFITS
• Small wall-mount housing for pre-term or field term ; Minimal mounting space required, Box-in-a-Box
• Metal housing with smooth, black powder coat finish ; Durability with better label adhesion
• Stackable ; Grow capacity without more wall space
• Built in splice tray ; Cable and fiber management, protection
• DIN/Hat Rail Mountable ; Versatile mounting options
• LANscape Solutions CCH Footprint ; Complexity reduction and adapter panel availability
GENERAL SPECIFICATIONS
• Product Type: Wall-Mountable Hardware
• Mounting Type: Wall-Mountable
• Application: Enterprise Networks
STANDARDS
• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
DESIGN
• Housing Type: SPH
• Number of Panels per Housing: 1
• Panel or Module Type: CCH
• Splice Tray Options: Includes a 12 slot 0.4-in splice holder, up to 24 single-fiber heat-shrink splices double stacked or 6 heat-shrink ribbon splices
DESIGN - ADAPTER
• Housing Color: Black
CONNECTOR SPECS
• Housing Color: Black
DIMENSIONS
• Height: 165.1 cm
• Width: 152.4 mm (6 in)
• Depth: 38.1 mm (1.5 in)
PRODUCT SPECIFICATIONSProduct Number SPH-01P
EAN Code 4056418142739Package Contents "Housing; installation guide; 6 tie wraps, 1/8 x 4, black; 4 screws, #6-32 x .25 inch; 4 screws, #8-18 x 0.625 inch; and 1 small alcohol wipe for label surface cleaning"
