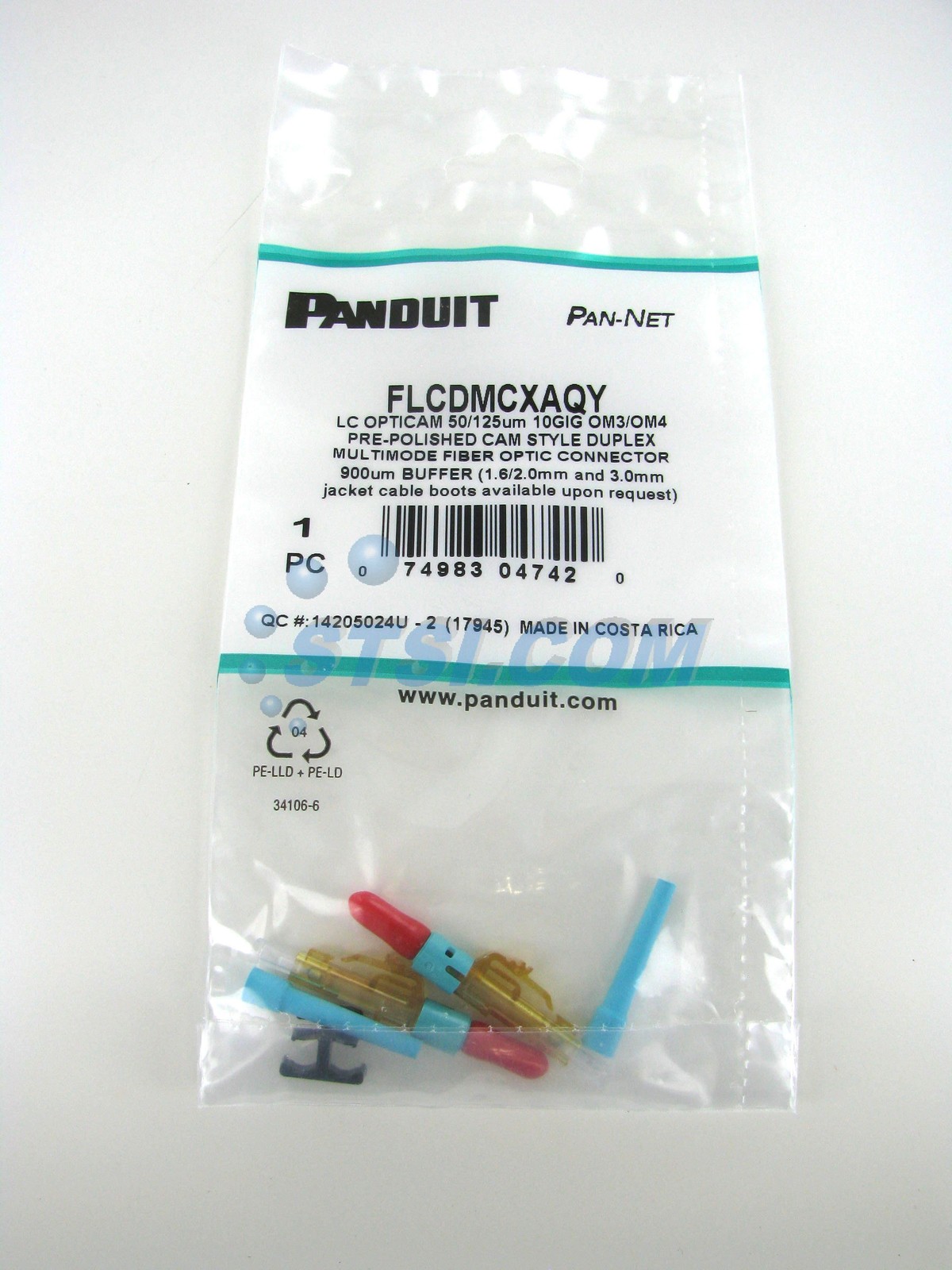

Panduit Opticam LC Duplex 10Gig OM3/OM4 Multimode 50 Fiber Optic Connector (For 900um Tight-Buffered Fiber)

Description:

LC OptiCam® 10Gig™ 50/125μm OM3/OM4 Multimode Duplex Fiber Optic Connector for 900μm tight-buffered fiber FOCIS-10 compatible connectors

Exceed TIA/EIA-568-B.3 requirements

Insertion loss: 0.10dB average (multimode and singlemode)

Return loss: >20dB (multimode), >40dB (singlemode)

Non-optical disconnect maintains data transmission under tensile loads for jacketed cable

Each simplex connector includes the following: one connector body/ferrule assembly, one crimp sleeve, one dust cap, and depending on the part number ordered, one boot for 900u m buffered fiber and one boot for 1.6mm– 2.0mm jacketed cable or one boot for 3.0mm jacketed cable

Each duplex connector includes two connector body/ferrule assemblies, two crimp sleeves, two dust caps, one duplex clip, and depending on the part number ordered, two boots for 1.6mm - 2.0mm jacketed cable, two boot for 3.0mm jacketed cable, or two boots for 900u m buffered fiber

LC duplex clip available separately for duplexing two simplex Panduit LC Connectors

Fiber cable type: tight-buffered recommended

Fiber cable size: accept 1.6mm – 2.0mm or 3.0mm jacketed cable, 900um buffered fiber (noted in part description)

For 250um coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits

Ferrule type: 1.25mm zirconia ceramic (highest durability for repeated matings)

Field polish termination – Panduit recommends anaerobic adhesive

Use field polish termination kit Number FLCDMCXAQY

RoHS Compliancy Status Intended for use in fixed installations which are outside the scope of RoHS

Note FLCDMCXAQY replaces FLCDMCXAQ

Part Description LC OptiCam® 10Gig™ 50/125um OM3/OM4 Multimode Duplex Fiber Optic Connector for 900um tight-buffered fiber installation.

Product Type LC Duplex Connectors

Color Aqua

Fiber Compatibility 10Gig™ 50/125um

Fiber Cable Size 900um

Fiber Cable Type Tight-buffered only

Fiber Type Multimode

Termination Style Pre-Polished Cam

CE Compliant No

Connector 1 Type LC

Ferrule Type Zirconia Ceramic

Pricing Description LC OptiCam 10 GbE 50um mm OM3/OM4 Dupl Connector Aqua Boots
